Panduit FROVRA4X4LYL FiberRunner 4x4 Vertical Outside 90-Degree Fitting

Overview

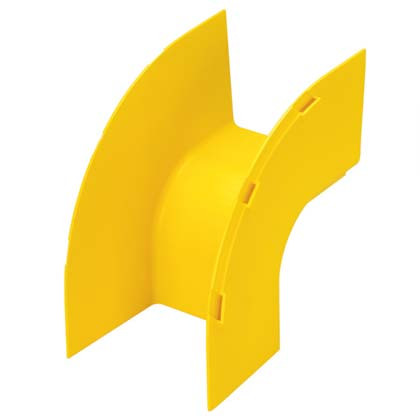

The Panduit FROVRA4X4LYL is the vertical outside 90-degree fitting for the Panduit FiberRunner 4x4 cable routing system — the component that lets you break a straight horizontal run upward or downward while keeping bend radius under control. Constructed from polycarbonate/ABS in FiberRunner's signature yellow, it mates with the companion inner fitting (FRIVRA4X4LYL) to execute a clean plane change in confined data center and telecom central office environments. If you're routing fiber through a fiber cable management pathway that needs to transition from horizontal ladder rack or trough to a vertical drop or rise, this is the fitting that makes that turn without kinking strands or violating minimum bend radius requirements.

The 4x4 designation refers to the interior channel dimensions of the FiberRunner system this fitting serves — a pathway sized for moderate-density fiber bundles in structured cabling deployments across data center infrastructure. This is not a universal fitting; it is purpose-built for the 4x4 FiberRunner system and should only be paired with compatible 4x4 raceway sections, covers, and fittings.

Key Features

• Vertical Outside 90-Degree Geometry: Creates a 90-degree vertical turn on the outside radius of the FiberRunner pathway. This matters in practice because outside-radius fittings require more physical clearance than inside turns — plan your cabinet or rack spacing accordingly before ordering. The FROVRA4X4LYL is 7.74 inches tall and 5.49 inches wide, so verify overhead and side clearances before committing to a layout.
• Polycarbonate/ABS Construction: The polycarbonate/ABS blend delivers the impact resistance and dimensional stability needed in environments where cable trays see incidental contact from technicians working in tight spaces. It won't deform under typical data center ambient temperatures, and unlike metal raceways, it won't create ground loops or require bonding in sensitive RF environments.
• Yellow Color Coding: FiberRunner's yellow colorway is a system-wide identifier for fiber pathways — instantly distinguishable from copper cable management components in mixed-media installations. In high-density telecommunications rooms where copper and fiber share vertical space, that color distinction reduces mis-routing errors during moves, adds, and changes.
• UL Listed Under Standard 2024A: UL listing under 2024A (fiber optic raceways) means this fitting has been independently tested for flammability and structural performance as part of a raceway assembly — not just the fitting in isolation. That listing is required by many local and national building codes for fiber raceway installations, so it keeps your installation on the right side of AHJ inspections without special documentation requests.
• NEBS Level 3 / Telcordia GR-63-CORE Compliance: For telecommunications central office deployments, NEBS Level 3 compliance is frequently a hard requirement. The FROVRA4X4LYL meets the relevant GR-63-CORE test criteria covering seismic, thermal, fire, and airflow performance — a necessity if you're deploying in carrier-grade environments subject to Telcordia qualification requirements. Most data-center-only buyers won't need this, but for telco central office work it removes a procurement hurdle.
• RoHS Compliance: RoHS conformance means the fitting is free of regulated hazardous substances — relevant for installations subject to EU environmental directives or corporate green procurement policies. No additional documentation required for RoHS-restricted regions.
• Designed for Use with FRIVRA4X4LYL Inner Fitting: The outside fitting alone doesn't complete the plane change — it requires the inner vertical fitting (FRIVRA4X4LYL, sold separately) to close the raceway at the bend. Budget for both components when planning a vertical transition. A common error is ordering only the outside fitting and discovering the open inner radius blocks cable loading.
• Sold as Single Unit (Carton Qty 5): Package quantity is 1 piece per order, with a carton quantity of 5. For large deployments with multiple vertical transitions, order in carton quantities to simplify receiving and reduce per-unit shipping overhead.

Integration and Compatibility

The FROVRA4X4LYL is designed exclusively for the Panduit FiberRunner 4x4 system. It is not interchangeable with 2x4, 4x6, or other FiberRunner channel sizes — the channel geometry and cover attachment points are specific to the 4x4 profile. Pair with FRIVRA4X4LYL for the complete outside 90-degree vertical transition. For horizontal turns, crosses, and tees within the same 4x4 system, source the appropriate FiberRunner horizontal fittings. All fittings in the FiberRunner line share the same UL listing and compliance posture, so mixing fitting types within the 4x4 family does not break the listed assembly. The competitor cross-reference 027-2000-4077 is on record for procurement teams sourcing against existing specifications written around alternate-brand raceways.

What's in the Box

• 1x Panduit FROVRA4X4LYL FiberRunner 4x4 Vertical Outside 90-Degree Fitting

Frequently Asked Questions

Q: What is the difference between the FROVRA4X4LYL and the FRIVRA4X4LYL?

A: The FROVRA4X4LYL is the outside (outer radius) vertical fitting; the FRIVRA4X4LYL is the inside (inner radius) companion fitting. Both are required together to complete a full 90-degree vertical plane change in the FiberRunner 4x4 raceway system. The outer fitting covers the larger arc of the bend, while the inner fitting closes the smaller arc. Order both if you're building a vertical transition from scratch.

Q: Is the FROVRA4X4LYL compatible with FiberRunner sizes other than 4x4?

A: No. The FROVRA4X4LYL is purpose-built for the 4x4 FiberRunner channel profile. It is not interchangeable with 2x4, 4x6, or any other FiberRunner size. Channel geometry and cover-retention features are size-specific. Verify your existing raceway's channel dimensions before ordering.

Q: Does the FROVRA4X4LYL meet NEBS Level 3 requirements?

A: Yes. The FROVRA4X4LYL meets the relevant test requirements in Telcordia GR-63-CORE and qualifies under NEBS Level 3 criteria. This makes it suitable for telecommunications central office deployments where NEBS compliance is a contractual or operational requirement.

Q: Is the FROVRA4X4LYL UL listed?

A: Yes. It is UL listed under UL Standard 2024A for optical fiber cable routing assemblies. This listing covers the fitting as part of a complete FiberRunner raceway assembly, not as a standalone component.

Q: What are the overall dimensions of the FROVRA4X4LYL?

A: The fitting measures 7.74 inches (196.6 mm) in height and 5.49 inches (139.5 mm) in width. Account for these dimensions when planning clearances around rack tops, cable trays, and adjacent equipment in tight data center or telecom room layouts.

Q: Is the FROVRA4X4LYL RoHS compliant?

A: Yes. The FROVRA4X4LYL is RoHS compliant, meeting EU directives on restriction of hazardous substances. It is suitable for installations subject to RoHS-restricted procurement requirements.

Ted Perry

The detail I always flag for integrators ordering the FROVRA4X4LYL is the physical footprint: at 7.74 inches tall and 5.49 inches wide, this outside fitting is significantly larger than the inner companion, and it's the one that determines whether your vertical transition clears adjacent cabinets, overhead obstructions, or hot-aisle containment panels. Get the dimensions on paper before you commit the raceway layout.

Technical Highlights:

• NEBS Level 3 / GR-63-CORE: Carrier-grade compliance is built in — the FROVRA4X4LYL passes the relevant seismic and thermal tests in Telcordia GR-63-CORE, which is a hard procurement gate for central office work. Most commercial data center buyers won't need this, but if you're bidding a telco or CO project, it saves a qualification cycle.
• UL 2024A Listing: The UL listing covers this fitting as part of a raceway assembly, not just the component in isolation. That distinction matters when AHJs inspect fiber pathway installations — a fitting-only listing doesn't satisfy the assembly-level requirement that many codes specify.
• Polycarbonate/ABS Construction: The material choice is deliberate — it won't ground-loop, won't corrode, and handles incidental contact without cracking under typical data center ambient conditions. Dimensionally stable enough that covers and companion fittings seat consistently across a long raceway run.

Deployment Considerations:

• The FROVRA4X4LYL must be paired with the FRIVRA4X4LYL inner fitting to complete the vertical 90-degree transition — the outside fitting alone leaves the inner radius of the bend open and cables unsupported. Both are sold separately; build both line items into your BOM before the project goes to procurement.
• Outside-radius fittings require more clearance than inside-radius fittings at the same turn. Measure the available space at the transition point before finalizing your raceway path — a 5.49-inch width footprint can conflict with adjacent vertical sections or containment hardware in dense row configurations.

For structured cabling teams building NEBS-qualified fiber pathways in telecommunications central offices or high-density data center environments where UL-listed raceway assemblies are a code or contract requirement, the FROVRA4X4LYL is the correct component — provided the 4x4 FiberRunner channel size matches your fiber bundle density and you've accounted for the companion FRIVRA4X4LYL in the same order.
