Panduit FROV454X4LBL FiberRunner 4x4 Outside Vertical 45° Fitting
Overview

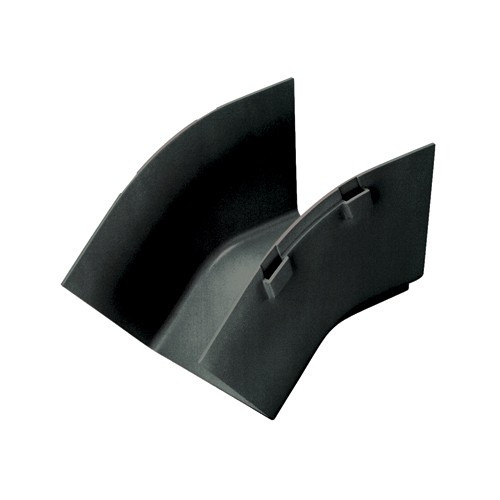

The Panduit FROV454X4LBL is an outside vertical 45-degree fitting designed specifically for the Panduit FiberRunner® system, connecting 4x4 channel sections and system fittings to create a controlled downward bend out of a horizontal cable run. If you've ever needed to transition a horizontal fiber trunk down toward a patch panel or equipment row without forcing a tight bend radius on the cable, this fitting solves that problem cleanly. It pairs directly with the inner vertical fitting FRIV454X4LBL to complete a full plane-change transition — you need both pieces to execute the direction change properly.
Built from Polycarbonate/ABS for rigidity without brittleness, this fitting is rated for data center and telecommunications central office environments — the two application contexts where FiberRunner is most commonly deployed. At 5.49 in. wide and 6.08 in. tall, it's sized to house the 4x4 FiberRunner channel's full cross-section through the bend without compressing the cable bundle.
Key Features
- 45-Degree Outside Vertical Geometry: Creates a smooth outward bend when transitioning fiber from a horizontal run downward — the geometry prevents cable kinking and maintains minimum bend radius compliance across the entire routed bundle. On high-density fiber trunks, a forced bend without a proper fitting can degrade insertion loss over time; this fitting eliminates that risk.
- Polycarbonate/ABS Construction: This material combination gives you impact resistance from the ABS component and dimensional stability from the polycarbonate — the fitting won't warp under sustained cable weight or in thermally variable data center environments where CRAC airflow creates temperature differentials across the cable tray zone.
- UL Listed (UL 2024A): Listed specifically for fiber optic cable routing assemblies, not just generic cable management. That distinction matters for facilities where fire code compliance requires listed raceways — a generic cable duct listing won't satisfy the AHJ on fiber-specific installations.
- NEBS Level 3 Compliant: Meets Telcordia GR-63-CORE requirements for Network Equipment Building Systems Level 3 — the standard telco carriers and co-location operators require for equipment installed in central offices. If you're running fiber routing in a carrier-grade facility, NEBS Level 3 is the compliance threshold that eliminates the spec conversation entirely.
- RoHS Compliant: Meets RoHS requirements, which is a procurement requirement for many enterprise and government data center projects operating under environmental compliance mandates.
- Overall Length 7.47 in., Width 5.49 in., Height 6.08 in.: These dimensions account for the geometry of the 45-degree arc — budget this footprint in your cable tray layout before committing to a routing path. Tight overhead spaces with limited vertical clearance need to be checked against the 6.08 in. height before ordering.
- Package Quantity 1, Carton Quantity 5: Single-piece packaging lets you order exactly the quantity your routing layout requires without committing to case quantities mid-project. For larger deployments ordering multiple bends across a row, the carton quantity of 5 provides a natural break-even point for volume ordering.
Integration & Compatibility
The FROV454X4LBL is purpose-built for the Panduit FiberRunner® 4x4 system. It connects directly to 4x4 FiberRunner channel sections and other 4x4 system fittings — crosses, tees, straight sections — without adapters. The mating inner vertical fitting is the FRIV454X4LBL; a complete plane change requires both the outer and inner fitting installed together. Do not attempt to use this fitting with 2x2, 6x4, or other FiberRunner channel sizes — the channel profiles are not interchangeable and the fittings will not seat correctly.
For data center rows deploying structured fiber tray routing above equipment racks, this fitting is the standard solution for dropping a horizontal overhead run down into the vertical section of the pathway. It integrates with all standard FiberRunner cover systems for enclosed routing in environments requiring dust protection or cable access control.
What's in the Box
- 1x Panduit FROV454X4LBL FiberRunner 4x4 Outside Vertical 45° Fitting
Frequently Asked Questions
Q: What is the FROV454X4LBL used for?
A: The FROV454X4LBL is an outside vertical 45-degree fitting for the Panduit FiberRunner 4x4 system. It connects 4x4 FiberRunner channel sections to create a controlled 45-degree downward bend out of a horizontal cable run — used when transitioning fiber routing from a horizontal overhead pathway down toward equipment.
Q: Does the FROV454X4LBL require a mating fitting to complete a direction change?
A: Yes. The FROV454X4LBL is the outside vertical fitting and must be paired with the inner vertical fitting FRIV454X4LBL to execute a full plane change on a straight horizontal run. Installing only the outer fitting without the inner will not complete the transition correctly.
Q: Is the FROV454X4LBL NEBS Level 3 compliant?
A: Yes. The FROV454X4LBL meets the requirements for relevant tests in Telcordia GR-63-CORE and qualifies as NEBS (Network Equipment Building Systems) Level 3 compliant, making it suitable for carrier-grade central office and co-location facility deployments.
Q: Is the FROV454X4LBL UL listed?
A: Yes. It is UL listed under UL 2024A specifically for fiber optic cable routing assemblies — not a generic cable management listing. This satisfies fire code and AHJ requirements for listed fiber raceway installations.
Q: What are the overall dimensions of the FROV454X4LBL?
A: Overall length is 7.47 in., overall width is 5.49 in. (139.4 mm), and overall height is 6.08 in. (154.4 mm). Budget these dimensions in your cable tray layout — particularly the 6.08 in. height if working in a space with limited vertical clearance above the horizontal run.
Q: Can the FROV454X4LBL be used with FiberRunner channel sizes other than 4x4?
A: No. The FROV454X4LBL is designed exclusively for the 4x4 FiberRunner system. It will not mate correctly with 2x2, 6x4, or other FiberRunner channel sizes, which have different cross-sectional profiles.
The FROV454X4LBL is a fitting I spec without hesitation on any FiberRunner 4x4 deployment where you need a controlled downward transition out of a horizontal overhead run. The 45-degree outside vertical geometry is the right angle for most rack-row drops — shallow enough to keep bend radius compliant across a dense trunk, but steep enough to clear the transition in a short horizontal run distance. This is not an accessory you improvise around; a missing or wrong-angle fitting on a high-fiber-count trunk means either a bend radius violation or a routing path that doesn't physically close.
Technical Highlights:
- NEBS Level 3 / GR-63-CORE Compliance: If your project is a carrier central office or a co-location facility with a NEBS requirement on its BOM checklist, this fitting is already on the approved list. The Telcordia GR-63-CORE seismic and environmental test coverage at Level 3 is the threshold that eliminates the spec review conversation with the facility's infrastructure team.
- UL 2024A (Fiber Optic Assembly Listing): The UL 2024A listing is specific to fiber optic cable routing assemblies — this is the listing that satisfies fire code on enclosed fiber raceway installations. A generic J-hook or cable duct won't carry the same listing; this does.
- Polycarbonate/ABS at 7.47 × 5.49 × 6.08 in.: The material combination handles sustained cable weight and thermal cycling without dimensional drift. The 6.08 in. height is the constraint to flag early in layout — in overhead pathways with less than 7 in. of clearance above the channel, this fitting won't install without repositioning the horizontal run.
Deployment Considerations:
- Always order the FRIV454X4LBL inner vertical fitting alongside this one — the FROV454X4LBL outer fitting alone does not complete the plane change. Ordering one without the other is the most common field procurement error on FiberRunner bend installations.
- Budget the 7.47 in. overall length in your horizontal run layout before the bend point — this fitting consumes that length of linear channel on the approach, which can shift the calculated drop point by several inches on tight rack-center-to-rack-center spacings.
Best deployment fit: structured fiber backbone routing in purpose-built data center environments — colocation rows, telecommunications rooms, and enterprise core switching zones where NEBS Level 3 and UL 2024A are hard requirements on the infrastructure BOM, not optional certifications.
