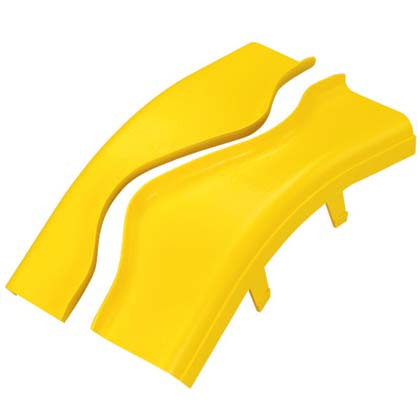

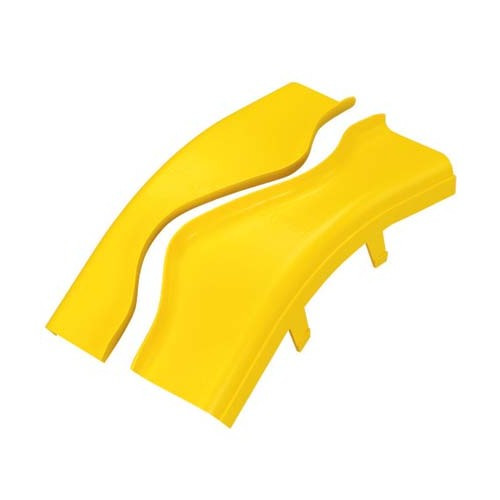

Panduit FROV45SC4LYL FiberRunner 45° Outside Vertical Split Cover

Overview

The Panduit FROV45SC4LYL is a split-construction outside vertical elbow cover engineered for Panduit FiberRunner 4x4 fiber routing systems deployed in data centers and central telecom offices. The split design is the critical detail here: technicians can open the cover to add or remove cables without dismantling adjacent runs — a meaningful operational advantage in live, high-density fiber environments where every unscheduled outage carries a cost. At a 45-degree angle, this fitting manages the transition on outside vertical bends where the run changes direction away from the wall or cabinet structure.

Key Features

• Split-Cover Construction: The cover opens along its length, giving direct access to the fiber channel without pulling the entire run apart. In a production data center where adds and moves happen regularly, this eliminates the need to de-route cables just to make a single lateral change.
• 45° Outside Vertical Geometry: Matches the specific bend angle and orientation of outside vertical transitions in cable management infrastructure. Using the wrong fitting angle forces cable beyond minimum bend radius — this fitting is purpose-built to keep bend radius within spec at this exact turn.
• Polycarbonate/ABS Construction: The material combination delivers the impact resistance of polycarbonate with the dimensional stability of ABS. In data center environments with frequent foot traffic and equipment moves, covers that crack or deform create rework and potential cable damage exposure.
• Yellow Color: Matches the FiberRunner 4x4 yellow system standard, which provides instant visual identification of fiber routing paths distinct from copper runs — useful during troubleshooting and during infrastructure audits where lane identification matters.
• RoHS Compliant: Meets RoHS requirements — relevant for enterprise buyers with compliance documentation requirements or projects with European regulatory exposure.
• UL-Listed Optical Cable Guidance Assemblies (to 2024A): UL listing confirms the assembly meets safety standards for optical cable guidance, supporting AHJ approval in commercial construction and data center fit-out projects where inspectors require listed components.
• Telcordia GR-63-CORE / NEBS Level 3 Compliance: These standards cover seismic zone performance and environmental stress testing relevant to carrier and mission-critical telecom facility deployments. If your project is a carrier-grade central office or a facility requiring NEBS compliance, this fitting qualifies — most generic cable management does not.

Integration & Compatibility

The FROV45SC4LYL is designed exclusively for use with the FiberRunner 4x4 system (4-inch by 4-inch channel). Overall dimensions are 8.06 inches in length, 5.36 inches wide, and 4.28 inches tall — verify available clearance in the routing path before ordering, particularly in tight overhead or under-floor runs. This fitting does not adapt to other channel widths or competing routing systems. For projects requiring additional bends, crosses, tees, or end caps within the same FiberRunner 4x4 infrastructure, pair with other system components from the same family to maintain system-level UL listing integrity.

What's in the Box

• 1x Panduit FROV45SC4LYL 45° outside vertical split cover (Yellow, Polycarbonate/ABS)

Frequently Asked Questions

Q: What fiber routing channel is the FROV45SC4LYL compatible with?

A: The FROV45SC4LYL is designed exclusively for use with the Panduit FiberRunner 4x4 system (4-inch by 4-inch channel dimensions). It is not interchangeable with other channel sizes in the FiberRunner family.

Q: What does the split-cover design mean for installation?

A: The split cover can be opened along its length to access cables inside the channel without dismantling the routing run. This allows cable adds and removals in live environments without disrupting adjacent fiber paths.

Q: Is the FROV45SC4LYL RoHS compliant?

A: Yes. The FROV45SC4LYL meets RoHS compliance requirements as documented by Panduit.

Q: Does this fitting meet NEBS Level 3 requirements?

A: Yes. The FROV45SC4LYL conforms to Telcordia GR-63-CORE and Network Equipment Building Systems (NEBS) Level 3 test requirements, making it suitable for carrier-grade central office and mission-critical telecom facility deployments.

Q: Is the FROV45SC4LYL UL listed?

A: Yes. Optical cable guidance assemblies in this product line are UL listed to 2024A standards.

Q: How many units come in a carton?

A: Cartons contain 5 units. The FROV45SC4LYL is sold individually (package quantity of 1).

Jerry Tildsen

The FROV45SC4LYL comes up regularly when data center infrastructure teams are building out high-density fiber routing with FiberRunner 4x4 and need a compliant fitting at an outside vertical 45-degree transition. What makes this specific part worth specifying — rather than substituting a generic elbow — is the Telcordia GR-63-CORE / NEBS Level 3 compliance. That certification is non-trivial to obtain and is a hard requirement for carrier central office projects. If you're working in that environment and a generic fitting doesn't carry that listing, you're looking at a failed inspection or a change order.

Technical Highlights:

• UL-Listed to 2024A: Optical cable guidance assembly UL listing supports AHJ approval in commercial and mission-critical projects — relevant wherever inspectors require listed components, not just best-effort compliance.
• Polycarbonate/ABS Material: Dimensional stability under temperature cycling and mechanical impact matters in raised-floor environments with frequent equipment movement. Cheaper covers crack and create debris risk inside the fiber channel.
• Split-Cover Access: The open-able cover design is operationally significant in dense runs — you're not rerouting fiber to make a lateral change. In a live data center, that's the difference between a 10-minute move and a 2-hour maintenance window.

Deployment Considerations:

• The FROV45SC4LYL is system-specific: it only integrates with FiberRunner 4x4 (4-inch by 4-inch) channel. Confirm channel size before ordering — the FiberRunner family spans multiple channel widths and the fittings are not cross-compatible.
• Overall dimensions are 8.06 inches long × 5.36 inches wide × 4.28 inches tall. In congested overhead or under-floor routing paths, verify clearance before committing to a routing plan that includes this fitting.

This fitting is the correct spec for carrier central office, NEBS-required telecom infrastructure, and enterprise data center buildouts running Panduit FiberRunner 4x4 where change-management access and code compliance are both on the checklist.
