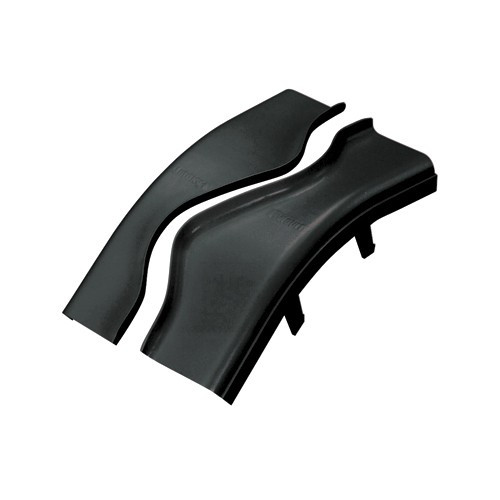

Panduit FROV45SC4LBL FiberRunner 4x4 Outside Vertical 45° Split Cover

Overview

The Panduit FROV45SC4LBL is a split-style outside vertical 45-degree bend cover designed specifically for the Panduit FiberRunner 4x4 fiber routing system. Installed in fiber cable management runs where horizontal pathways must transition vertically at a 45-degree angle along the outside of a turn, this cover snaps into place over the FiberRunner 4x4 raceway body — giving technicians front-access to cabling without dismounting or disassembling the raceway. That split construction is the key operational advantage: you add or remove fibers mid-run without taking down the channel. The FROV45SC4LBL is molded in black polycarbonate/ABS, a material combination that delivers the rigidity needed to protect bundled fiber while resisting the brittleness that straight polycarbonate can exhibit in temperature-cycling data center environments.

Key Features

• Split-Cover Design for Field Access: The cover separates along its length, meaning maintenance technicians can open the 45-degree bend section and route or pull additional fibers without breaking the entire raceway run. In dense data center overhead ladder rack installations where retrofitting a new circuit is common, this is the difference between a 20-minute add and a 2-hour teardown.
• Outside Vertical 45-Degree Geometry: Specifically engineered for outside vertical bend transitions — the geometry that routes fiber down a vertical wall or cabinet side while maintaining the FiberRunner system's bend-radius compliance. Using a straight cover or an incorrect angle here risks exceeding the minimum bend radius of your fiber and causing attenuation or physical damage.
• Polycarbonate/ABS Construction: The blended polymer provides high-impact resistance from polycarbonate combined with the improved processability and surface finish of ABS. In telecom central office environments with mechanical traffic around cable trays, this matters — a purely brittle cover that cracks on incidental contact can expose fiber bundles to physical risk.
• Designed for FiberRunner 4x4 System: The FROV45SC4LBL is dimensioned for the FiberRunner 4x4 raceway (4-inch width, 4-inch height channel) — overall width 5.36 in (136.1 mm), overall height 4.28 in (108.7 mm), overall length 8.06 in. It will not fit the 2x2, 2x4, 4x2, or 6x4 FiberRunner families. Confirm your installed raceway size before ordering.
• Black Finish for Standard Data Center Aesthetics: Matches the standard black FiberRunner 4x4 raceway body for a uniform overhead appearance — relevant in customer-facing colocation spaces or structured cabling installations where visual consistency is part of the spec.
• RoHS Compliance: Meets RoHS hazardous substance restrictions — a procurement requirement for most EU-destined builds and increasingly standard in US federal and enterprise bid requirements. No additional compliance substitution needed for RoHS-gated projects.
• UL-Listed Optical Fiber Cable Guiding Assemblies (to 2024A): UL certification for optical fiber cable guiding assemblies provides an independent verification that the raceway system meets recognized safety standards — a requirement on many commercial construction projects where AHJ (Authority Having Jurisdiction) approval depends on listed products.
• Telcordia GR-63-CORE and NEBS Level 3 Tested: The FiberRunner system has been tested to Telcordia GR-63-CORE (physical protection, seismic, thermal) and Network Equipment Building Systems (NEBS) Level 3 standards. If you're deploying into a carrier-grade central office or any NEBS-required environment, the raceway system supporting this cover already meets the environmental stress test criteria — you're not introducing a non-compliant component.
• Carton Quantity of 5: Sold individually (package quantity 1), but shipped in cartons of 5 — plan your bill of materials around that carton break to minimize freight cost on larger projects requiring multiple bend covers along the same run.

Integration & Compatibility

The FROV45SC4LBL is a component within the Panduit FiberRunner fiber routing system and is designed exclusively for use with the FiberRunner 4x4 (4-inch wide by 4-inch high) raceway. It does not cross-fit to other FiberRunner sizes or to Panduit's PanDuct or cable tray families. For data center overhead routing applications, pair this bend cover with the appropriate straight FiberRunner 4x4 raceway sections, inside vertical and horizontal bend covers, and tee or cross fittings as your pathway geometry requires. When planning a structured cabling installation, consult a cable management pathway guide to map bend types — outside vertical, inside vertical, horizontal — before ordering fittings, since mixing an inside-bend cover where an outside bend is needed is a common ordering error. The RoHS and UL compliance of this component aligns it with enterprise data center and telecom central office procurement standards without requiring additional documentation from the integrator.

What's in the Box

• 1x Panduit FROV45SC4LBL FiberRunner 4x4 Outside Vertical 45-Degree Split Cover (Black)

Frequently Asked Questions

Q: What raceway size is the FROV45SC4LBL compatible with?

A: The FROV45SC4LBL is designed exclusively for the Panduit FiberRunner 4x4 system — a 4-inch wide by 4-inch high fiber routing raceway. It will not fit the 2x2, 2x4, 4x2, or 6x4 FiberRunner variants. Confirm your installed raceway family and size before ordering.

Q: What does
