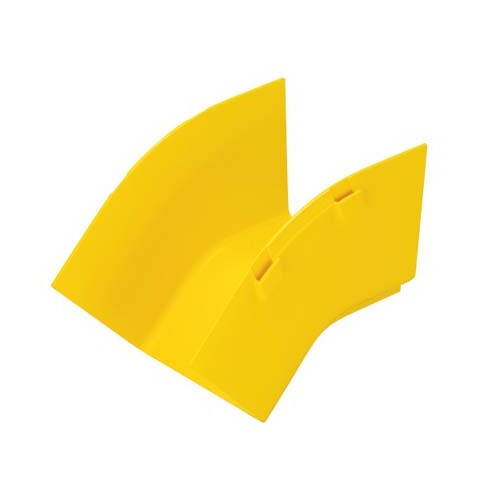

Panduit FROV454X4LYL FiberRunner 4x4 Outside Vertical 45° Fitting

Overview

The FROV454X4LYL is a yellow Polycarbonate/ABS outside vertical 45° fitting designed specifically for Panduit's FiberRunner® system in 4x4 channel configurations. It creates a controlled 45-degree downward bend from a horizontal cable run — the transition point where your horizontal tray meets a vertical drop in a data center or telecom room. Without this fitting, field-bent fiber is a compliance and damage risk; this purpose-built connector keeps bend radius within spec and the pathway continuous. Pair it with the inside vertical counterpart FRIV454X4LYL when changing planes on a straight horizontal run.

Key Features

• 45° Outside Vertical Geometry (6.08" H × 5.49" W): Engineered for outside-of-bend routing where the fiber tray turns downward away from a wall or rack column. The 154.4mm height and 139.4mm width give enough radius to protect even large-count fiber bundles from micro-bend attenuation — a real concern when you are managing 48-strand or higher-count trunks in a fiber cable management system.
• Polycarbonate/ABS Construction: This material combination delivers the impact resistance of ABS with the temperature stability and flame performance of polycarbonate. In active data centers where thermal cycling and occasional physical contact from techs are routine, that matters more than a pure ABS fitting would provide.
• UL Listed (2024A) for Fiber Routing Assemblies: The UL 2024A listing is specific to optical fiber cable routing assemblies — not a generic electrical listing. That distinction is important for AHJ inspections in facilities where fiber pathways must be independently listed, not just the cable.
• NEBS Level 3 / Telcordia GR-63-CORE Compliance: NEBS Level 3 is the benchmark for central office and carrier-grade environments — seismic, thermal shock, airborne contaminants. If you are installing in a telecom central office or colocation facility with NEBS requirements, this fitting meets the structural survivability tests without requiring a deviation or substitution approval.
• RoHS Compliant: Restricts hazardous substances, which satisfies procurement requirements for EU-destined deployments and many enterprise sustainability policies — no extra documentation chase at the end of a project.
• Yellow Color Coding: In multi-system FiberRunner installations, yellow is the standard identifier for single-mode fiber pathways. Using the correct color from the start keeps your infrastructure self-documenting and reduces the chance of a tech inadvertently mixing pathways during moves, adds, and changes.
• Overall Length 7.47 in: The 7.47-inch body accommodates a smooth arc transition — long enough to keep fiber bend radius well above the 1-inch minimum required by most fiber manufacturers at this channel width.

Integration & Compatibility

The FROV454X4LYL is designed exclusively for the Panduit FiberRunner 4x4 system. It connects to standard 4x4 FiberRunner channels and system connectors. For plane changes on a straight horizontal run, deploy alongside the inside vertical 45° fitting FRIV454X4LYL — the two are designed as a matched pair. This fitting is sold individually (Package Quantity: 1) with a minimum order of 5 units (Carton Quantity: 5), which aligns with typical rack-row or zone deployments where multiple bends are needed per installation. Review your fiber routing planning guide to confirm quantity requirements before ordering.

What's in the Box

• 1× Panduit FROV454X4LYL FiberRunner 4x4 Outside Vertical 45° Fitting (Yellow)

Frequently Asked Questions

Q: What is the FROV454X4LYL designed to connect to?

A: It is designed exclusively for use with the Panduit FiberRunner 4x4 system — connecting 4x4 channels and system connectors to create a 45-degree downward bend from a horizontal run.

Q: Does the FROV454X4LYL need to be paired with another fitting?

A: Yes. When changing the plane of a straight horizontal run, Panduit specifies pairing it with the inside vertical 45° fitting FRIV454X4LYL. The two work together to complete the bend transition.

Q: Is the FROV454X4LYL compliant with NEBS requirements?

A: Yes. It meets the requirements for relevant tests in Telcordia GR-63-CORE and NEBS (Network Equipment Building Systems) Level 3, making it suitable for carrier-grade and central office environments.

Q: What does the yellow color signify?

A: In the FiberRunner system, yellow identifies single-mode fiber pathways, keeping multi-system installations visually organized and reducing cross-pathway errors during MACs.

Q: What is the minimum order quantity for the FROV454X4LYL?

A: The carton quantity is 5, which represents the minimum order quantity. Each unit is packaged individually (Package Quantity: 1) within that carton.

Q: Is the FROV454X4LYL RoHS compliant?

A: Yes, the FROV454X4LYL is RoHS compliant, satisfying hazardous substance restrictions for EU deployments and enterprise sustainability procurement requirements.

Karl Wilson

The FROV454X4LYL is the fitting most integrators underorder — and then regret when the second rack row needs the same outside vertical drop. At 6.08 inches tall and 5.49 inches wide, the geometry is generous enough to handle high-count trunk cables without stressing individual fibers at the bend, which is the failure mode you will not see until months later when attenuation climbs on a link you cannot easily re-route.

Technical Highlights:

• NEBS Level 3 / GR-63-CORE: Meets seismic Zone 4 and thermal shock tests — if your colo or carrier customer requires NEBS certification on passive pathway components, this fitting passes without a waiver request.
• UL Listed 2024A: This listing is fiber-routing-assembly specific, not a generic electrical listing. AHJs in mission-critical facilities increasingly call this out separately on inspection — having the right listing avoids a corrective action.
• Polycarbonate/ABS, Yellow: The color is functional, not cosmetic — yellow = single-mode in the FiberRunner convention. Installing the wrong-color fitting in a mixed SM/MM environment creates a documentation error that propagates through every future MAC on that run.

Deployment Considerations:

• Always order the paired FRIV454X4LYL inside vertical fitting at the same time — a plane change requires both. Ordering them separately on different POs frequently causes installation delays when one arrives and the other is on backorder.
• The carton quantity of 5 is the minimum; for a standard 2-row data center bay with 4 outside vertical transitions per row, plan for 2 cartons (10 units) minimum before accounting for spares.

For telecom central offices and carrier colocation deployments where NEBS Level 3 is a hard requirement on passive infrastructure, the FROV454X4LYL is the correct fitting — not a substitution, not a field workaround.
