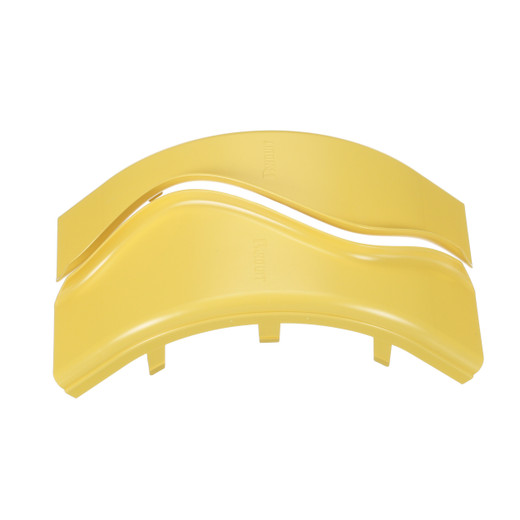

Panduit FROVRASC6LYL FiberRunner 6x4 Vertical Outside 90° Bend Cover
Overview
The Panduit FROVRASC6LYL is the vertical outside right-angle cover cap for the FiberRunner™ 6x4 fiber routing system — designed specifically for data centers and central telecommunications offices where maintaining bend-radius protection and cable access at 90° turns is non-negotiable. This is a purpose-built enclosure cover, not a universal fitting: it completes the outside vertical bend fitting in the FiberRunner 6x4 pathway, creating cleanly covered transitions while preserving the open access points that allow technicians to add or remove cables without dismantling the run. If you're building or extending a FiberRunner 6x4 infrastructure in a structured cabling environment, this cover is the matching cap for the exterior vertical 90° elbow. The FROVRASC6LYL ships individually (package quantity: 1) and is available in carton quantities of 5 for larger rollouts.
Key Features
- Polycarbonate/ABS Construction: The blend of polycarbonate and ABS delivers the impact resistance needed in active data center aisles while keeping the cover lightweight enough for ceiling or overhead routing where cumulative component weight matters. Neither pure polycarbonate (brittle under repeated flex) nor plain ABS (less rigid under load) alone matches this combination for long-term pathway durability.
- Yellow Colorway: The distinctly yellow finish matches the FiberRunner™ 6x4 system's color-coded standard for fiber pathways, making it immediately identifiable during moves, adds, and changes — reducing the risk of accidentally disturbing fiber routes during copper or power work nearby.
- Open-Access Design for Cable Management: The cover creates openings at the bend so cables can be added or removed from the 6x4 pathway without pulling the cover entirely or cutting ties. In a live data center environment, this translates directly to reduced maintenance downtime during fiber patching and circuit provisioning work.
- Compact Vertical Profile (8.67" H × 6.87" W): At 220.2 mm tall and 174.4 mm wide, this cover fits within the dimensional envelope of the FiberRunner 6x4 outside vertical bend fitting — confirm overhead clearances in tight above-ceiling or underfloor pathways before ordering to avoid interference with adjacent raceways or structural members.
- RoHS Compliance: Meets RoHS requirements, which matters for data centers with environmental certification programs or government/enterprise procurement mandates requiring restriction of hazardous substances across installed infrastructure.
- UL-Listed Optical Fiber Routing Assembly (to 2024A): UL listing for optical cable guide assemblies through 2024A means this component can be called out on drawings and specified in projects requiring listed fiber routing hardware — a practical necessity for facilities with AHJ (Authority Having Jurisdiction) inspection requirements or insurance-driven documentation standards.
- Telcordia GR-63-CORE and NEBS Level 3 Compliance: Conformance to Telcordia GR-63-CORE seismic and NEBS Level 3 environmental criteria means this cover is qualified for carrier-grade central office deployments where equipment must withstand zone 4 seismic events and controlled environment stressing — relevant if you're specifying for telecom CO or carrier hotel installations.
Integration & Compatibility
The FROVRASC6LYL is designed exclusively for the Panduit FiberRunner™ 6x4 system. It covers the outside vertical 90° bend fitting in that pathway family — it is not interchangeable with FiberRunner 4x4, 2x2, or 12x4 hardware, and it is not a universal raceway cover. Before ordering, confirm you are working with the FiberRunner 6x4 pathway (6-inch-wide by 4-inch-deep channel). This product is the cover only; the bend fitting itself is a separate component. For complete fiber routing and cable management builds, pair this with the matching FiberRunner 6x4 straight sections, other bend covers, and end caps as required by your pathway layout. The yellow color coding aligns with Panduit's fiber designation convention across the FiberRunner line, simplifying multi-pathway data center environments where color discipline prevents cross-system interference during ongoing operations.
Frequently Asked Questions
Q: What pathway system is the FROVRASC6LYL designed for?
A: The FROVRASC6LYL is designed exclusively for use with the Panduit FiberRunner™ 6x4 system. It is not compatible with other FiberRunner sizes or non-Panduit fiber routing systems.
Q: Does this listing include the bend fitting, or just the cover?
A: This listing is for the cover cap only (package quantity: 1). The outside vertical 90° bend fitting is a separate FiberRunner component and must be ordered independently.
Q: Is the FROVRASC6LYL RoHS compliant?
A: Yes. The FROVRASC6LYL meets RoHS compliance requirements, as stated in the product standards documentation.
Q: Is this cover UL listed?
A: Yes. The FiberRunner optical cable guide assemblies, including this cover, are UL-listed for optical fiber routing up to 2024A.
Q: Can I order the FROVRASC6LYL in bulk?
A: The carton quantity is 5 units. Individual units (package quantity: 1) are available for smaller installs or patch replacements.
Q: Is this product suitable for carrier central office environments?
A: Yes. The FROVRASC6LYL meets Telcordia GR-63-CORE seismic test criteria and Network Equipment Building Systems (NEBS) Level 3 requirements, qualifying it for carrier-grade central office and telecom infrastructure deployments.
The FROVRASC6LYL is one of those components that looks trivial on a BOM until it's missing on install day — at which point your outside vertical 90° bend in the FiberRunner 6x4 run sits open and your fiber is exposed at the turn. This cover is the finishing piece for that specific bend type; the polycarbonate/ABS shell at 8.67" tall and 6.87" wide closes out the fitting cleanly while leaving the access openings intact for future cable work.
Technical Highlights:
- NEBS Level 3 / Telcordia GR-63-CORE: If your project calls for carrier-grade CO qualification, these ratings are explicitly listed — this cover can go on a spec drawing without a variance, which matters when submittals go to a telecom AHJ.
- UL Optical Fiber Routing (to 2024A): UL listing for this assembly class means the cover contributes to a listed fiber pathway, not just a best-effort installation — a distinction that comes up in insurance documentation and code inspections for data centers.
- Polycarbonate/ABS Construction: More durable than plain ABS under repeated removal and reinstallation cycles — relevant in active environments where technicians are regularly opening the pathway for MAC work. It won't stress-crack at the snap tabs the way pure polycarbonate can after a few years.
Deployment Considerations:
- Confirm you are working with FiberRunner 6x4 (6" wide, 4" deep channel) before ordering — the FROVRASC6LYL does not fit 4x4 or 12x4 variants, and FiberRunner sizing is easy to mis-specify when multiple pathway widths are running in the same facility.
- This is the cover only — the outside vertical bend fitting ships separately. A common ordering gap is specifying covers without the matching fittings, which stalls installation when the fittings arrive on a different PO.
Best fit for enterprise data centers and carrier central offices running structured FiberRunner 6x4 fiber pathways where NEBS compliance, UL listing, and color-coded fiber identification are active project requirements — not overkill for high-density facilities, exactly right for carrier-grade CO builds.
