Panduit FROVRASC12LBL FiberRunner 12x4 Outside Vertical 90-Degree Cover
Overview

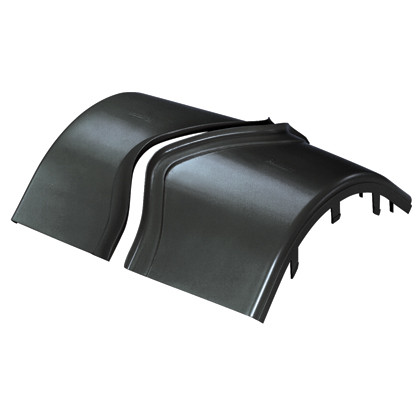

The Panduit FROVRASC12LBL is an outside vertical 90-degree split cover designed specifically for the Panduit FiberRunner 12x4 fiber routing system. Built from polycarbonate/ABS and spanning 13.7 inches wide by 9.26 inches tall, this cover creates a clean, accessible bend point where horizontal fiber runs transition vertically — a common routing challenge in data center ladder racks, open-frame cabinets, and telecommunications central offices. The split-cover construction means you can add or remove cables at the bend without re-routing the entire run, which saves real time during MACs (moves, adds, changes).
Designed for use with the FiberRunner 12x4 system, the FROVRASC12LBL ships individually (package quantity of 1) but is available in carton quantities of 5, making it practical to spec across multiple racks in a larger cable management project.
Key Features
- Outside Vertical 90-Degree Geometry: Routes fiber around the outside of a right-angle bend on vertical transitions — the correct orientation when cable runs exit a horizontal tray and travel down a rack column. Using the wrong bend direction (inside vs. outside) puts stress on fiber bend radius; this cover is shaped to maintain compliant bend radius on exterior corners.
- Split-Cover Construction: The two-piece design allows the cover to open without disturbing the fiber path. In practice, this means a technician can add a single strand during a future MAC without pulling connectors or re-routing — a meaningful time saver in live environments where downtime is measured in minutes.
- Polycarbonate/ABS Material: The polycarbonate/ABS blend gives this cover the impact resistance and dimensional stability needed in data center environments where equipment carts and cable trays create physical hazards. It will not warp under the moderate temperature swings typical of raised-floor or overhead tray installations.
- RoHS Compliance: Meets RoHS requirements, so it integrates cleanly into enterprise builds where environmental compliance documentation is required at the BOM level. No exemption paperwork needed for EU-destined deployments.
- UL Listed for Optical Fiber Routing Assemblies (up to 2024A): UL certification on the fiber routing assembly confirms the system meets fire and safety standards relevant to plenum and data center environments. This matters when AHJ inspections are in scope or when the customer's facilities team requires listed components.
- Telcordia GR-63-CORE Compliance: GR-63-CORE covers seismic zone 4 and network equipment building system (NEBS) Level 3 requirements. If you're installing in a carrier hotel, colocation facility, or any space that must meet NEBS Level 3, this cover — as part of the FiberRunner assembly — satisfies that requirement without additional engineering review.
- 13.7 in. × 9.26 in. Footprint: At 348 mm wide and 235.2 mm tall, the FROVRASC12LBL is sized for the 12x4 tray width. Confirm your tray variant before ordering — this cover is not interchangeable with 4x4 or 6x4 FiberRunner sizes.
- Black Finish: Matches standard black FiberRunner 12x4 tray components, keeping installations visually consistent — relevant for customer-facing data centers and co-lo environments where rack aesthetics matter.
Integration & Compatibility
The FROVRASC12LBL is designed exclusively for the Panduit FiberRunner 12x4 system. It pairs with FiberRunner straight sections, horizontal bends, tees, and end caps to form a complete enclosed fiber routing path. If you are building out a mixed tray environment — for example, combining Panduit wire duct for copper and FiberRunner for fiber — verify your 12x4 tray color and variant before adding this cover to the BOM. The system is commonly deployed alongside fiber patch panels and high-density cassette systems where bend point management is critical to maintaining minimum bend radius on OM4 and OS2 fiber.
Sold as a single unit (package quantity: 1). Carton quantity is 5, which maps cleanly to a 5-rack row or a single cabinet column with multiple bend points.
What's in the Box
- 1x Panduit FROVRASC12LBL Outside Vertical 90-Degree Split Cover (FiberRunner 12x4, Black)
Frequently Asked Questions
Q: What FiberRunner tray size does the FROVRASC12LBL fit?
A: The FROVRASC12LBL is designed specifically for the FiberRunner 12x4 system. It is not compatible with 4x4, 6x4, or other FiberRunner tray sizes — verify your tray variant before ordering.
Q: Is the FROVRASC12LBL RoHS compliant?
A: Yes. The FROVRASC12LBL meets RoHS requirements, making it suitable for deployments where environmental compliance documentation is required at the component level.
Q: Does the FROVRASC12LBL meet NEBS Level 3 / Telcordia GR-63-CORE requirements?
A: Yes. As part of the FiberRunner optical cable guidance assembly, it complies with Telcordia GR-63-CORE and Network Equipment Building Systems Level 3 standards — relevant for carrier, colocation, and telecom central office installations.
Q: Is this cover UL listed?
A: Yes. The FiberRunner optical fiber routing assemblies including this cover are UL listed for optical cable guidance up to 2024A.
Q: What is the difference between an inside and outside vertical 90-degree cover?
A: An outside cover (like the FROVRASC12LBL) routes fiber around the exterior of a right-angle bend — used when the cable exits the tray on the outer arc of the turn. An inside cover routes fiber around the interior arc. Using the wrong type puts mechanical stress on the fiber and can violate minimum bend radius requirements, so matching the correct orientation to the physical routing path is essential.
Q: How many units come in a carton?
A: Each order unit is a single cover (package quantity: 1). Cartons contain 5 units, which is practical for multi-rack deployments or large cable management projects.
The FROVRASC12LBL is the kind of component that shows up on BOMs without much discussion — until it's missing at pull time and a technician is holding unprotected fiber at an exposed outside corner. At 13.7 inches wide and 9.26 inches tall, this outside vertical 90-degree split cover is sized precisely for the FiberRunner 12x4 tray, and the split construction is the practical detail that separates a well-spec'd installation from one that needs to be partially deconstructed every time a strand is added.
Technical Highlights:
- NEBS Level 3 / GR-63-CORE: The full FiberRunner assembly including this cover meets Telcordia GR-63-CORE seismic and NEBS Level 3 — a hard requirement in carrier hotel and central office builds that many generic tray covers simply cannot satisfy.
- UL Listed (Optical Routing, up to 2024A): UL listing on the optical fiber routing assembly is the credential AHJ inspectors and enterprise facilities teams ask for. Having it on the cover — not just the tray — means the complete bend assembly is covered, not just the straight run.
- Polycarbonate/ABS Construction: Dimensionally stable under data center temperature cycling and impact-resistant enough to survive a cable tray installation with equipment carts in the aisle. Not a cover that will crack or deform under normal field conditions.
Deployment Considerations:
- Confirm 12x4 tray variant before ordering — this cover is not interchangeable with other FiberRunner widths. The 348 mm (13.7 in.) width is specific to the 12x4 family; ordering the wrong size is the single most common field error on FiberRunner builds.
- The split-cover design requires both halves to be secured properly at installation. In high-vibration environments (raised floor with active cooling), verify the latching mechanism is fully engaged — a partially seated cover can work loose over time and expose the bend.
The FROVRASC12LBL is the right spec for high-density data center rows and carrier-grade telecom central offices where bend point integrity, NEBS compliance, and future cable access all need to be designed in from the start — not retrofitted after the tray is full.
