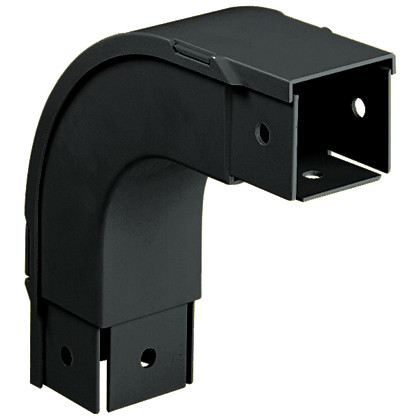

Panduit FOVRA2X2LBL FiberRunner Outside Vertical 90-Degree Elbow, 2x2, Black
Overview
The Panduit FOVRA2X2LBL is an outside vertical 90-degree elbow fitting for the Panduit FiberRunner® routing system, designed to transition fiber from a horizontal run downward along a wall or rack column in data centers and telecom rooms. Where most channel fittings handle in-plane direction changes, this outside elbow handles the vertical drop — attaching to the channel exterior to execute a clean 90-degree downward bend without kinking or over-bending fiber. If you've ever fought a messy freefall drop at the end of a horizontal tray run, this is the fitting that eliminates it.
Built for the FiberRunner 2x2 fiber routing system, the FOVRA2X2LBL pairs with the inside vertical elbow FIVRA2X2LBL when you need to change plane on a straight horizontal run — the outside and inside fittings work together to execute a controlled, protected 90-degree plane change. Solo use routes a straight horizontal run into a clean downward exit.
Key Features
- Outside Vertical 90-Degree Geometry: Attaches to the outer radius of the channel to redirect fiber downward from a horizontal run. This is the correct fitting when you need fiber to exit the top surface of a run and drop — not the inside elbow, which handles the opposite radius. Getting the inside/outside orientation wrong means the fitting won't mate flush to the channel.
- FiberRunner 2x2 System Compatibility: Sized and keyed specifically for the 2x2 FiberRunner channel. At 2.65 inches in overall length and 6.94 inches (176.3 mm) in overall height, the fitting provides the radius geometry needed to protect bend-sensitive fiber without adding unnecessary bulk to the pathway.
- Polycarbonate/ABS Construction: The PC/ABS blend delivers the impact resistance of polycarbonate with the processability of ABS — practical for a fitting that gets handled repeatedly during moves, adds, and changes in high-density data center fiber infrastructure. It won't crack under normal installation stress the way brittle materials can.
- UL Listed (2024A) for Fiber Raceway Assemblies: UL listing under standard 2024A means the fitting has been evaluated specifically for optical fiber raceway assemblies — not just generic cable management. This matters for data centers where NEC compliance and AHJ inspections are part of the commissioning process.
- NEBS Level 3 Compliant (Telcordia GR-63-CORE): NEBS Level 3 is the seismic and environmental qualification threshold required for telecommunications central office equipment. If you're deploying in a carrier-grade or colocation facility that mandates NEBS, this fitting meets the requirement — a non-trivial certification to have on a passive cable management component.
- RoHS Compliant: Restricts hazardous substances per EU directive — relevant for global deployments and customers with environmental procurement policies.
- Black Finish: Matches standard black FiberRunner channel for a consistent, professional appearance in finished data center environments. Color consistency across the pathway system matters in customer-facing colocation and enterprise MDF/IDF spaces.
Integration & Compatibility
The FOVRA2X2LBL is designed for use with the Panduit FiberRunner 2x2 fiber routing system and is intended to be used alongside the inside vertical elbow FIVRA2X2LBL (sold separately) when executing a full plane change on a horizontal run. The outside elbow alone handles a straight horizontal-to-vertical downward transition. This fitting does not fit the 4x4, 6x4, or other FiberRunner channel sizes — confirm your channel size before ordering. The FiberRunner fitting family includes a full range of elbows, tees, crosses, and end caps; the FOVRA2X2LBL is specifically the outside vertical bend for the 2x2 channel.
Sold individually (package quantity: 1). Carton quantity is 5 — if you're outfitting a full row of racks, purchasing by the carton is the efficient approach.
What's in the Box
- 1x Panduit FOVRA2X2LBL FiberRunner Outside Vertical 90-Degree Elbow, 2x2, Black
Frequently Asked Questions
Q: What is the difference between the FOVRA2X2LBL and the FIVRA2X2LBL?
A: The FOVRA2X2LBL is the outside vertical elbow — it mounts on the outer radius of the channel to redirect fiber from a horizontal run downward. The FIVRA2X2LBL is the inside vertical elbow. When used together, these two fittings execute a full 90-degree plane change on a straight horizontal FiberRunner 2x2 run. For a simple downward drop at the end of a horizontal run, the FOVRA2X2LBL is used alone.
Q: Is the FOVRA2X2LBL compatible with FiberRunner 4x4 or other channel sizes?
A: No. The FOVRA2X2LBL is sized exclusively for the FiberRunner 2x2 routing system. It will not mate correctly with 4x4, 6x4, or other FiberRunner channel sizes. Always verify your channel size before ordering fittings.
Q: Does the FOVRA2X2LBL meet NEBS requirements?
A: Yes. The FOVRA2X2LBL meets the relevant test requirements in Telcordia GR-63-CORE for NEBS Level 3 — the seismic and environmental qualification level required for carrier-grade and central office deployments.
Q: Is the FOVRA2X2LBL UL listed?
A: Yes. It is UL listed under standard 2024A for optical fiber raceway assemblies.
Q: How many units come in a carton, and how is it sold?
A: The FOVRA2X2LBL is sold individually (package quantity: 1). The carton quantity is 5, making carton purchases practical when outfitting multiple rack positions or a full row deployment.
Q: What material is the FOVRA2X2LBL made from?
A: The fitting is constructed from a Polycarbonate/ABS blend, which provides impact resistance and dimensional stability under the handling conditions typical of data center cable management work.
The FOVRA2X2LBL is a deceptively simple component that solves a specific structural problem in FiberRunner 2x2 deployments: getting fiber from horizontal overhead pathways down to equipment in a controlled, code-compliant way. At 6.94 inches (176.3 mm) in overall height, this fitting provides the vertical drop geometry without relying on unmanaged slack loops or improvised bends that can stress single-mode fiber over time.
Technical Highlights:
- NEBS Level 3 / Telcordia GR-63-CORE: Seismic qualification to NEBS Level 3 means this fitting is tested for the vibration and shock conditions present in carrier-grade central offices and colo facilities — a requirement many enterprise-only products skip entirely.
- UL 2024A Listing: UL listing specifically for fiber raceway assemblies (not generic cable tray) satisfies NEC and local AHJ requirements in commercial and carrier environments where optical fiber routing must be code-compliant at the fitting level.
- Polycarbonate/ABS Construction: PC/ABS handles repeated flex and handling stress without the brittleness of straight polycarbonate — relevant when fittings are repositioned during MAC work in live data center environments.
Deployment Considerations:
- The outside elbow addresses only the outer-radius downward transition. If you need to execute a full plane change on a mid-run horizontal segment, you must pair this fitting with the inside vertical elbow FIVRA2X2LBL — one fitting alone will not complete the plane change.
- Size-lock to 2x2: this fitting will not adapt to larger FiberRunner channels. In mixed-size pathways, confirm every elbow and fitting matches the specific channel width before the installation crew arrives — wrong-size fittings are a common delay source on larger cabling projects.
The FOVRA2X2LBL is the right spec for new-build or expansion rack rows in NEBS-qualified telecom central offices and enterprise data centers running FiberRunner 2x2 overhead pathways — anywhere a clean, certified vertical exit point is required at the end of a horizontal fiber run.
