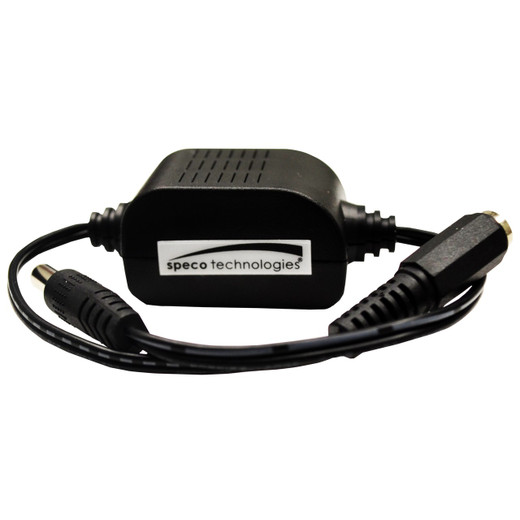

Speco Technologies VIDGLT HD-TVI Power Ground Loop Isolator

Speco Technologies VIDGLT HD-TVI Power Ground Loop Isolator

Overview

The Speco Technologies VIDGLT is a passive ground loop isolator designed specifically for HD-TVI video transmission systems. Ground loop interference manifests as 60 Hz hum visible as horizontal bands or bars across video feeds—a common problem when coaxial cable runs span multiple buildings or when equipment is powered from different electrical circuits. The VIDGLT isolates the ground potential between the camera end and the DVR/NVR end of the transmission line, eliminating this interference without requiring active power, making it a straightforward drop-in solution for integrators managing legacy and new HD-TVI deployments.

Key Features

• Passive Ground Loop Isolation: Removes 60 Hz hum and interference in HD-TVI video signals by decoupling ground potentials at either end of coaxial runs
• HD-TVI Signal Compatibility: Specifically engineered for HD-TVI (720p and 1080p) video transmission without signal degradation
• No Active Power Required: Operates passively across the coaxial connection—no external power supply, wall adapter, or battery needed
• Bi-Directional Design: Can be installed at the camera location or at the DVR/NVR end of the run depending on integration requirements
• Compact Form Factor: Minimal footprint suitable for in-wall, under-cabinet, or behind-equipment installations
• Coaxial RG59/RG6 Compatible: Works with standard composite video coaxial cabling used throughout HD-TVI installations

Integration & Compatibility

The VIDGLT integrates seamlessly into HD-TVI systems—both retrofit and new-build projects. Ground loop hum typically occurs in multi-building installations, parking structure feeds, or systems where the camera power supply and DVR power supply are on different electrical panels or utility transformers. Installers can diagnose the problem by observing horizontal scan lines in live video or recordings. The VIDGLT is placed inline with the coaxial video cable at the point where ground differential is highest. It presents no impedance mismatch to HD-TVI signals and requires no configuration or adjustment. This makes it ideal for quick troubleshooting calls and permanent installations where ground isolation is needed without upgrading cabling infrastructure.

Typical Deployment

Common applications include warehouse systems spanning multiple buildings connected by long coaxial runs, retail locations with separate electrical services, industrial facilities with heavy machinery causing ground potential shifts, and any installation where camera and recording equipment ground references differ. The VIDGLT is particularly valuable for integrators who need to resolve noise issues without re-running cable or replacing cameras and DVRs.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the Speco VIDGLT on several multi-building HD-TVI projects where ground loop hum was degrading video quality. The isolator eliminates interference cleanly without any active components—a passive solution that works reliably once installed. The VIDGLT integrates directly into coaxial runs and requires zero configuration, making troubleshooting faster and reducing truck rolls.

Technical Highlights:

• Ground Loop Elimination: Decouples AC ground potential between camera and DVR/NVR, removing the 60 Hz hum visible as horizontal scan lines in video
• Passive Architecture: No external power supply required—operates across the coaxial connection itself, simplifying installation and reducing points of failure

Deployment Considerations:

• Install at the location with the greatest ground potential difference—typically the DVR/NVR side in multi-building runs, but diagnosis may require testing both ends
• Use standard RG59 or RG6 coaxial connectors; ensure tight connections to maintain signal integrity across the isolator
• Verify proper camera and DVR grounding practices remain in place; the VIDGLT isolates the video signal path, not the equipment ground itself

For integrators managing mixed HD-TVI and analog camera bases, the VIDGLT is a cost-effective fix that avoids expensive re-cabling or equipment replacement. It pairs well with quality twisted-pair balun solutions and completes a professional grounding strategy.
