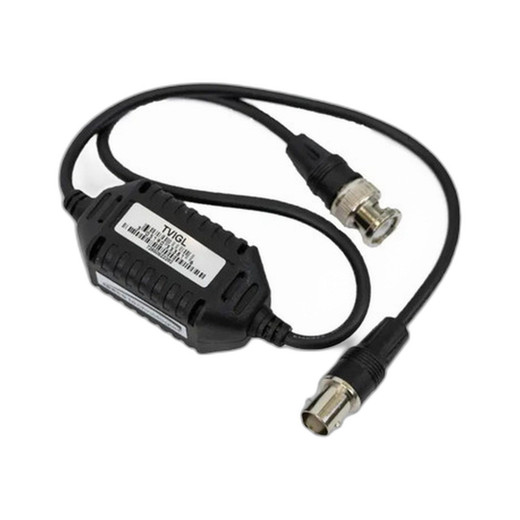

Speco Technologies TVIGL Ground Loop Isolator
The Speco TVIGL is a compact ground loop isolator designed to eliminate video hum and interference in TVI (TVI over coaxial) camera installations. Ground loop noise — a 50 Hz or 60 Hz hum pattern visible as horizontal lines across video feeds — is a common problem in multi-building or long-distance camera deployments where coaxial runs bridge multiple electrical grounds. The TVIGL isolates the video signal from ground potential differences, delivering clean, noise-free TVI video to your DVR or NVR without requiring camera replacement or system redesign.
Overview
Ground loop isolation is a critical but often overlooked component in professional video surveillance systems. When camera installations span multiple buildings, long cable runs, or mixed electrical grounds, the resulting ground potential differences induce AC hum into the coaxial video line. This manifests as visible horizontal scan lines that degrade image quality and can interfere with motion detection and analytics. The TVIGL solves this problem at the signal level, isolating the video ground from the coaxial shield without introducing signal loss or requiring active power.
The isolator supports TVI video formats and maintains compatibility with ONVIF Profile I systems, allowing seamless integration into standard IP-based VMS platforms. With a compact footprint (2.9" × 1.1" × 1") and minimal weight (0.188 lbs), the TVIGL installs easily in rack cabinets, wall-mounted enclosures, or cable termination boxes. Maximum resolution support extends to 3840×2160 (4K UHD), ensuring the isolator does not constrain high-resolution TVI camera feeds.
Key Features
- Ground Loop Elimination: Isolates video signal from coaxial shield ground potential differences, eliminating 50 Hz/60 Hz hum and interference patterns
- Passive Design: Requires no external power; operates through transformer isolation on the video signal path
- TVI Format Support: Compatible with TVI video standards used in analog and hybrid DVR/NVR systems
- ONVIF Profile I Compatibility: Integrates with standards-based VMS platforms and IP surveillance ecosystems
- 4K Resolution Support: Supports video feeds up to 3840×2160, maintaining signal integrity for high-resolution camera deployments
- Compact Form Factor: Ultra-small package (2.9" × 1.1" × 1", 0.188 lbs) enables flexible mounting in racks, panels, or field installations
- No Signal Loss: Passive isolation preserves video quality without introducing attenuation or processing artifacts
- Immediate Deployment: Field-installable without firmware updates, configuration, or system reconfiguration
Integration & Compatibility
The TVIGL integrates into existing TVI surveillance systems without modification to cameras, DVR/NVR hardware, or cabling infrastructure. Install the isolator at the DVR/NVR input panel by inserting the incoming TVI coaxial video line through the isolation transformer. The unit's ONVIF Profile I support ensures compatibility with modern VMS platforms that manage mixed analog and IP camera streams. Typical deployment scenarios include multi-building campus installations, rooftop camera arrays where cable runs cross multiple grounds, and hybrid systems mixing legacy analog cameras with newer TVI or IP devices.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Speco TVIGL in several multi-building surveillance projects where ground loop hum was degrading video quality and triggering false motion alerts. The TVIGL solved the problem immediately without requiring camera replacement or system redesign. Its passive design means it operates reliably without added power management, and the compact form factor fits easily into existing rack and panel installations.
Technical Highlights:
- Ground Loop Isolation: The transformer-based design breaks the ground loop path while preserving full video signal bandwidth, effectively eliminating 50/60 Hz hum without signal conditioning or processing artifacts.
- Resolution Preservation: Support for 4K (3840×2160) video ensures the isolator does not constrain high-resolution TVI camera feeds in modern surveillance deployments.
- ONVIF Profile I Integration: Standards-based compatibility with VMS platforms allows the TVIGL to work in IP-centric and hybrid analog/IP environments without proprietary drivers or custom integration.
Deployment Considerations:
- Install the TVIGL at the DVR/NVR input panel, between the long coaxial run and the recorder. This placement maximizes ground isolation effectiveness.
- In campus or multi-building deployments, prioritize ground loop isolation for camera runs longer than 150 feet or where coaxial cables cross multiple electrical grounds.
- Verify TVI video format compatibility with your DVR/NVR before installation; the TVIGL supports standard TVI but does not transcode formats.
The TVIGL is a practical, field-proven solution for eliminating ground loop noise in TVI surveillance systems. Its passive design, compact size, and straightforward installation make it an essential tool for integrators managing mixed analog, TVI, and IP camera environments. I recommend stocking the TVIGL for any project involving long coaxial runs or multi-building camera deployments.
