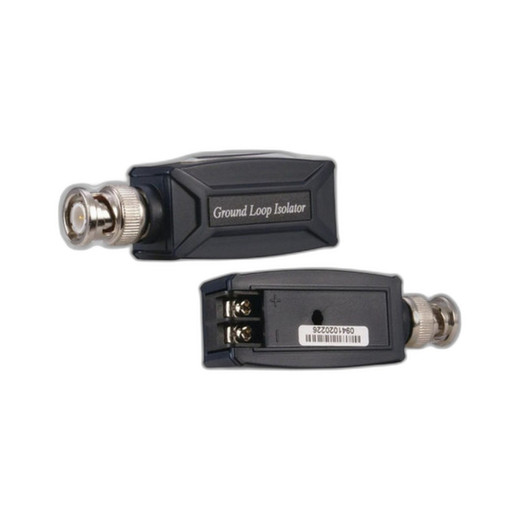

Speco Technologies UTPGLPR Video Ground Loop Isolator for UTP
Overview
The Speco Technologies UTPGLPR is a passive video ground loop isolator designed to eliminate ground loop interference in security camera systems that transmit video signals over unshielded twisted pair (UTP) cabling. Ground loop conditions occur when multiple ground paths exist between camera and monitoring equipment, resulting in visible hum bars, horizontal lines, and degraded video quality. The UTPGLPR isolates these ground potentials while maintaining video signal integrity across long UTP cable runs, making it essential for integrators deploying cameras in facilities with complex electrical grounding or mixed legacy and modern infrastructure.
Key Features
- Ground Loop Elimination: Passive isolation removes 50/60 Hz hum interference common in multi-building campuses, industrial sites, and facilities with variable grounding potentials
- UTP Compatibility: Designed specifically for unshielded twisted pair video transmission, the standard delivery method in cost-sensitive and retrofit security deployments
- Pair Configuration: Includes matched isolator pair for bidirectional or multi-camera setups, simplifying inventory management and ensuring consistent performance across system blocks
- Passive Design: Requires no external power, eliminating additional power infrastructure, conduit routing, or uninterruptible power supply (UPS) integration in remote or difficult-to-service locations
- Transparent Signal Path: Maintains full video bandwidth without compression, latency, or quality loss—critical for analog, HD-SDI, or IP-based video systems operating over extended cable distances
- Compact Form Factor: Compact housing suitable for installation in cable trays, junction boxes, or equipment racks without occupying significant space or creating thermal management challenges
- Broad Application Range: Effective in surveillance, access control camera systems, broadcast facilities, and industrial monitoring where ground potential differences introduce visible artifacts
- Installation Flexibility: Can be installed at camera end, receiving end, or midspan depending on system topology and ground loop source location
Integration & Compatibility
The UTPGLPR integrates into existing UTP-based video infrastructure without requiring protocol modification, firmware updates, or VMS reconfiguration. It works transparently with analog CCTV cameras, HD-over-UTP converters, and IP cameras using passive injectors. System integrators can deploy the UTPGLPR alongside twisted pair baluns, impedance transformers, and surge protection devices; its passive isolation complements rather than conflicts with these common infrastructure components. The pair format allows flexible deployment—use one isolator for a single long run, or distribute multiple pairs across a multi-zone facility.
Typical Deployment Scenarios
Ground loop interference becomes critical in multi-building industrial parks, campuses with separate electrical services, and retrofit installations where new camera circuits are grounded to existing structural steel or secondary ground rods. Integrators frequently encounter hum bars after installing cameras near motor control centers, variable frequency drives (VFDs), or HVAC equipment. The UTPGLPR addresses these conditions without requiring re-cabling, ground bond modifications, or engineering consultation. It is equally valuable in smaller facilities where cost-effective UTP cabling is preferred over shielded alternatives.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Speco UTPGLPR in numerous retrofit and new-build projects where ground loop hum became apparent only after camera installation or system commissioning. The isolator pair format and passive design make it a cost-effective troubleshooting tool that doesn't add operational complexity or power dependencies.
Technical Highlights:
- Ground Loop Suppression: Eliminates 50/60 Hz interference and harmonics introduced by multiple ground paths, restoring clean video without visible artifacts
- UTP Optimized: Specifically engineered for unshielded twisted pair delivery, maintaining impedance matching and signal fidelity across extended runs
Deployment Considerations:
- Identify ground loop source (separate electrical services, equipment grounding conflicts, or long cable runs) before installation to position the isolator pair at the optimal point in the signal chain
- Pair the UTPGLPR with proper grounding practices—ensure single-point grounding between camera power supply and receiving equipment to maximize isolation effectiveness
- Use the pair format to standardize isolation across multiple camera zones or to maintain spare isolators for rapid field replacement if interference conditions change
The UTPGLPR remains a reliable, field-proven solution for ground loop elimination in UTP-based deployments. Its passive operation and pair configuration make it ideal for integrators managing diverse facility types and budget-constrained projects where video quality and reliability depend on clean signal transmission.
