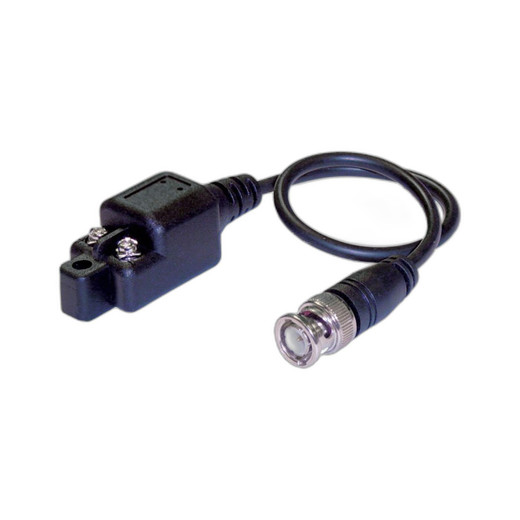

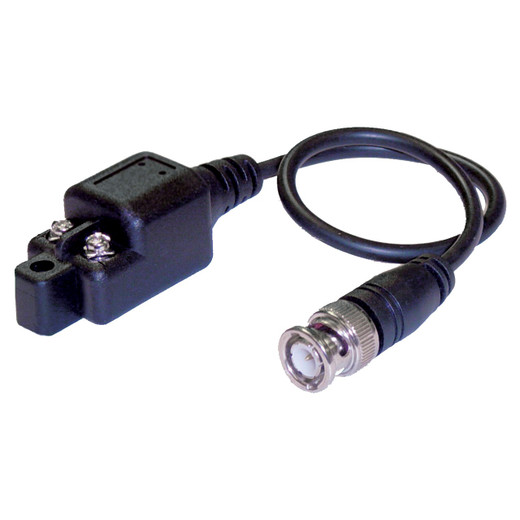

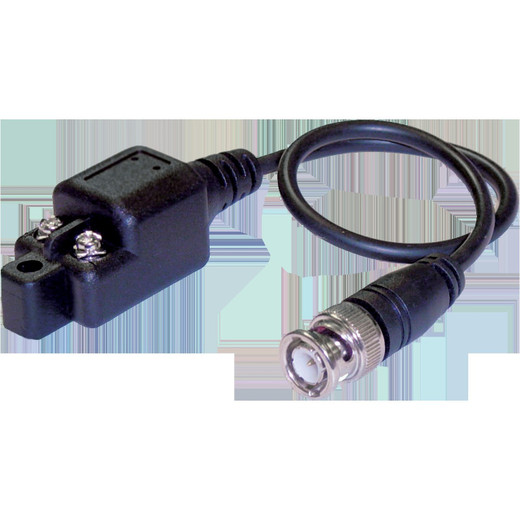

Speco Technologies UTPPTAIL UTP Transceiver with Pigtail

Overview

The Speco Technologies UTPPTAIL is a UTP transceiver module designed to extend analog surveillance video signals over standard unshielded twisted-pair cabling. This pigtail configuration enables integrators and installers to retrofit existing or new surveillance deployments where copper UTP infrastructure is preferred over coaxial or fiber solutions. The UTPPTAIL serves as a cost-effective transmission solution for facilities requiring extended video distribution without dedicated video cabling infrastructure.

Key Features

• UTP transceiver design for analog video transmission over twisted-pair copper cable
• Pigtail connector configuration for flexible field installation
• Extends analog surveillance signal distribution across structured cabling systems
• Compatible with standard security camera video outputs
• Compact form factor suitable for DVR installations and camera junction boxes
• Passive or powered operation depending on deployment distance requirements

Integration & Compatibility

The UTPPTAIL integrates seamlessly into analog surveillance systems where UTP cabling is the preferred transmission medium. Installers can use the pigtail connector to interface with DVR video inputs, multiplexer cards, or direct camera connections. This transceiver is particularly useful in retrofit applications where pulling new coaxial cabling is impractical but existing or newly installed UTP infrastructure is available. The module supports standard NTSC and PAL video signals commonly used in professional security deployments.

Typical Deployment Scenarios

The UTPPTAIL is commonly deployed in:

• Multi-tenant commercial buildings where UTP cabling distribution is already in place
• Educational facilities and campuses leveraging existing network infrastructure
• Retrofit installations where replacing video cabling is cost-prohibitive
• Environments where separation of video transmission from network data traffic is preferred
• Access control and gate entry systems requiring video integration over extended distances

Technical Operation

The UTPPTAIL operates as a balanced video transceiver, converting standard composite or component video signals into a format suitable for transmission across UTP cable pairs. The pigtail connector allows direct connection to camera outputs or DVR inputs without requiring bulkhead-mounted connectors. Transmission distance and signal quality depend on cable gauge, quality, and whether active amplification is employed. Integrators should verify cable specifications and run length to ensure signal integrity before final installation.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Speco UTPPTAIL addresses a practical gap in analog surveillance infrastructure: leveraging existing UTP cabling without the expense of re-running dedicated video lines. During pre-bid planning, I've found this transceiver invaluable for customers with established building UTP infrastructure who want to avoid coaxial cable deployment. It's a straightforward passive or low-power solution that doesn't add significant cost to the Bill of Materials.

Technical Highlights:

• UTP Transmission: Converts analog video signals for distribution over standard twisted-pair copper infrastructure, eliminating the need for dedicated coaxial runs
• Pigtail Configuration: Direct connector interface eliminates external bulkhead requirements, reducing installation complexity and junction box real estate
• Standard Video Compatibility: Supports NTSC and PAL video standards used across professional security deployments
• Retrofit-Friendly: Enables video system expansion in facilities where new cabling installation is impractical

Deployment Considerations:

• Verify existing UTP cabling meets video transmission specifications before selecting this transceiver; older Category 3 runs may not provide acceptable signal quality over extended distances
• Plan for adequate power supply at the transmit and receive locations if active amplification is required for cable runs exceeding 300 feet
• Use a separate UTP cable pair for video transmission rather than co-locating video and network data on the same runs to minimize crosstalk and ensure signal integrity
• Test the complete video path before final acceptance, confirming video quality, synchronization, and noise levels across the transmission distance

The UTPPTAIL is a cost-effective component for system integrators working within existing infrastructure constraints. For straightforward analog video extension over UTP cabling, it represents a pragmatic choice that simplifies installation and reduces material costs compared to full coaxial retrofit solutions.
