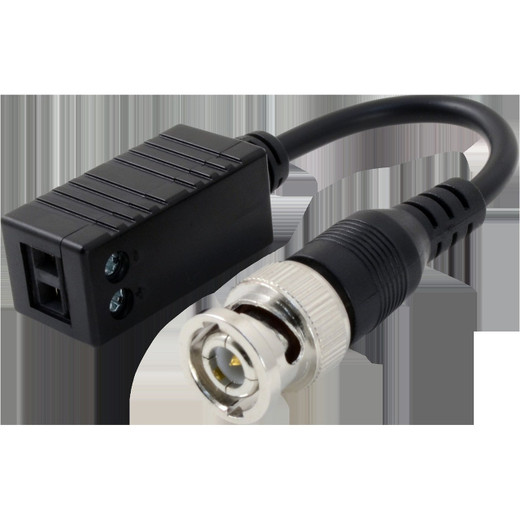

Speco Technologies TVIUTPPT HD-TVI Balun over UTP with Pigtail

Overview

The Speco Technologies TVIUTPPT is a passive HD-TVI balun designed to transmit HD-TVI video signals over standard unshielded twisted pair (UTP) cabling. This balun enables cost-effective video distribution in HD-TVI surveillance systems by allowing integrators to leverage existing copper infrastructure rather than requiring dedicated coaxial cable runs. The TVIUTPPT features a pigtail connection design, providing flexible installation in equipment racks, wall plates, and patch panel environments.

Key Features

• HD-TVI Video Transmission: Carries HD-TVI analog video signals over standard Category 5e/6 UTP cabling without signal loss or quality degradation
• Passive Design: Requires no external power supply, simplifying deployment and reducing infrastructure complexity
• Pigtail Configuration: Delivers flexible connectivity for direct connection to cameras, DVRs, and video distribution equipment
• Extended Cable Runs: Enables video transmission over distances up to 300 meters (985 feet) when using proper UTP gauge and quality cabling
• Operating Temperature Range: Functions reliably in environments from 32°F to 131°F (0°C to 55°C), supporting both indoor and temperature-controlled outdoor installations
• Impedance Matching: Precision-matched balun design maintains signal integrity across the HD-TVI frequency band

Integration and Deployment Considerations

The TVIUTPPT balun integrates directly into HD-TVI surveillance architectures without requiring protocol conversion or active signal processing. Security integrators frequently deploy this balun in retrofit installations where existing structured cabling must carry video alongside network traffic. The pigtail connector allows installation in wall plates, junction boxes, and equipment termination points. When paired with matching baluns at both transmission and reception points, the TVIUTPPT maintains the analog HD-TVI signal path from camera to DVR or hybrid recorder without introducing digital processing delays or compatibility constraints.

Operating temperature specifications ensure compatibility with climate-controlled server rooms (32°F minimum) and temperature-stabilized equipment closets (131°F maximum). Integrators should verify UTP cable quality and gauge when planning long-distance runs, as signal attenuation increases with cable length and decreases with conductor gauge.

Technical Characteristics

The balun operates on passive transformer principles, converting the 75-ohm unbalanced video signal to 100-ohm balanced transmission suitable for UTP propagation, then performing the reverse conversion at the receiver end. This design eliminates active component failure modes and guarantees compatibility with any HD-TVI source and termination point. The pigtail form factor positions the TVIUTPPT for use in centralized video infrastructure, equipment racks, and distributed termination architectures common in multi-camera deployments.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the TVIUTPPT balun in several retrofit projects where existing structured cabling needed to carry HD-TVI video without running new coax. The passive design eliminates power supply dependencies, which simplifies logistics in distributed camera networks. The pigtail connector integrates cleanly into patch panels and wall termination points, reducing per-camera installation labor.

Technical Highlights:

• Passive Operation: No external power required; operates reliably across the 32°F to 131°F operating temperature window without thermal management
• HD-TVI Signal Path: Preserves analog HD-TVI compatibility; no protocol conversion or DVR firmware dependencies

Deployment Considerations:

• Always deploy matched pairs—one TVIUTPPT at the camera end and one at the DVR end—to maintain balanced transmission
• Verify UTP cable runs support video frequencies; Cat5e/6 is standard, but older Cat3 installations may exhibit signal loss over long distances
• Temperature range compatibility (32°F–131°F) suits climate-controlled environments; outdoor conduit installations require temperature protection

For cost-sensitive integrations leveraging existing copper infrastructure, the TVIUTPPT offers a straightforward, passive solution to extend HD-TVI video distribution. Pair it with quality cabling practices and matched termination, and you'll achieve reliable analog video transport without active electronics complexity.
