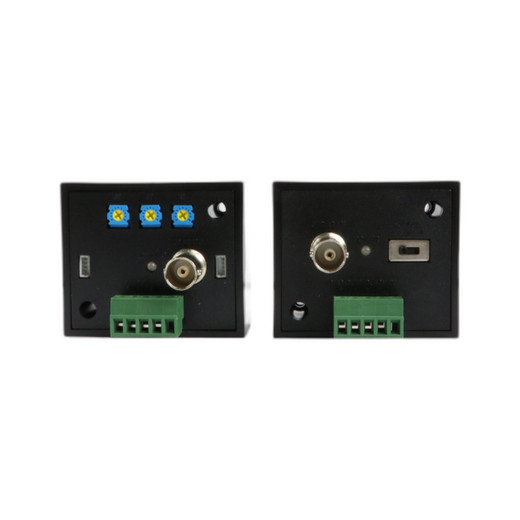

Speco Technologies TVIUTPA Active TVI Video Balun
The Speco Technologies TVIUTPA is an active TVI video balun designed for analog-to-digital signal conversion in TVI (Transport Video Interface) surveillance installations. This dual-purpose transmitter/receiver balun supports up to 8MP resolution video transmission, making it suitable for modernizing legacy analog infrastructure or extending 4K TVI video over extended cable runs.
Overview
The TVIUTPA functions as both a transmitter and receiver, allowing bidirectional video signal conditioning across your surveillance network. With native support for 8MP video at 3840x2160 maximum resolution, this balun bridges the gap between analog transmission standards and modern high-resolution TVI systems. Powered by DC 12V, the unit operates with minimal power draw, making it ideal for distributed surveillance deployments where central power distribution may not be practical.
Key Features
- Dual-Mode Operation: Functions as both transmitter and receiver in a single compact unit
- 8MP Resolution Support: Handles 8MP video streams at up to 3840x2160 maximum resolution
- TVI Signal Conditioning: Actively amplifies and regenerates video signals for reliable transmission over longer cable distances
- DC 12V Power Supply: Low-voltage operation simplifies installation and power budgeting in multi-camera deployments
- ONVIF Profile I Compatibility: Integrates with ONVIF-compliant video management systems and NVRs
- Compact Form Factor: Dimensions of 2.3" × 1.9" × 1.6" allow flexible mounting in tight equipment spaces or on pole-mounted installations
- Lightweight: At 0.2 lbs, installation adds negligible weight to cable runs or equipment racks
- AC/DC Power Flexibility: Accepts both AC and DC 12V input for deployment flexibility
Integration & Compatibility
The TVIUTPA is engineered for integrators deploying TVI-based security systems. ONVIF Profile I support ensures compatibility with enterprise-grade video management platforms, allowing the balun to function transparently within larger system architectures. The unit's active signal regeneration is particularly valuable in installations where cable runs exceed passive balun specifications, ensuring video integrity at the full 8MP resolution capability.
For system designers, the Speco TVIUTPA TVIUTPA provides a straightforward upgrade path for existing coaxial cable infrastructure, reducing the need for complete recabling when transitioning from SD analog to 4K TVI resolution. The transmitter/receiver configuration supports both point-to-point and daisy-chain topologies, depending on installation layout.
Technical Specifications
Maximum video resolution reaches 3840x2160 (8MP), with DC 12V power input. The unit measures 2.3 inches wide by 1.9 inches tall by 1.6 inches deep, and weighs 0.2 pounds. AC/DC power input provides flexibility in power distribution scenarios. ONVIF Profile I certification ensures video management system interoperability.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Speco TVIUTPA in several recent system upgrades where customers wanted to retain existing coax infrastructure while moving to 4K TVI cameras. The active amplification makes a real difference on longer runs—you get clean 8MP video without the signal degradation you'd see with passive baluns beyond 300 feet.
Technical Highlights:
- 8MP Resolution Ceiling: Native support for 3840x2160 video keeps the balun relevant as TVI cameras evolve beyond 4MP and 5MP standard offerings
- Dual Transmit/Receive: Single unit handles both video directions, simplifying BOM and reducing installation points of failure compared to separate TX/RX modules
- ONVIF Integration: Profile I compliance means your NVR and VMS will recognize the video stream properly without custom drivers or protocol translation
Deployment Considerations:
- Power the unit locally at the camera or at the NVR end depending on your cable topology; the DC 12V requirement is straightforward on most systems with auxiliary 12V supplies already present
- Verify coax cable quality on long runs; while the TVIUTPA adds active amplification, degraded or improperly terminated cable still limits range—use RG6 minimum for runs over 400 feet
The TVIUTPA is a workhorse balun for integrators who need active TVI signal conditioning without introducing VMS complexity. It's a solid add-on for retrofit projects and new TVI builds where you're optimizing cost and infrastructure reuse.
