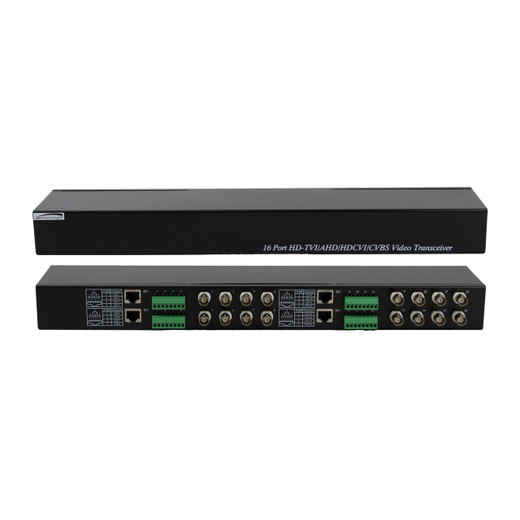

Speco Technologies TVI16UTP 16-Channel Passive Transceiver
The Speco Technologies TVI16UTP is a 16-channel passive video transceiver engineered to extend TVI (TurboHD) video signals over standard unshielded twisted pair (UTP) cabling. This device eliminates the need for expensive coaxial runs in retrofit and new-build TVI deployments, making it a cost-effective solution for security integrators managing extended cable runs or mixed-cable environments.
Overview
The TVI16UTP transceiver allows you to transmit TVI video over distances that would otherwise require active balun solutions or dedicated coaxial infrastructure. By leveraging existing UTP runs or deploying new twisted-pair cabling, integrators can reduce material costs and simplify installation logistics. The passive design requires no external power, reducing complexity in field deployment and eliminating additional power budget calculations at the DVR or recorder end.
This 16-channel module is ideal for large-scale TVI system deployments where multiple camera feeds must traverse long cable runs. The TVI16UTP supports standard TVI signal levels and maintains video integrity across extended distances, making it suitable for both indoor and outdoor installations where environmental protection is provided.
Key Features
- 16-Channel Capacity: Accommodates 16 independent TVI video channels in a single transceiver unit, streamlining multi-camera deployments
- Passive Design: No external power required; operates passively across standard UTP cabling without additional power infrastructure
- TVI Video Support: Compatible with TurboHD (TVI) video signals, supporting high-definition and 2MP+ resolutions over extended cable runs
- UTP Transmission: Extends TVI signals over standard unshielded twisted pair cabling, reducing installation cost compared to coaxial-only deployments
- Extended Cable Reach: Enables signal transmission over distances that standard passive baluns cannot reliably support
- Cost-Effective Infrastructure Leverage: Permits deployment of TVI systems using existing building cabling or new UTP runs instead of dedicated coax
- Compact Form Factor: Space-efficient design suitable for telecommunications rooms and equipment closets
- Hot-Swap Ready: Modular construction supports field replacement without system shutdown
Integration & Compatibility
The TVI16UTP integrates seamlessly into TVI-based DVR and NVR system architectures. It functions as a transparent video extension device, requiring no software configuration or protocol management. Connect the input side to TVI camera feeds or DVR outputs; connect the output side to UTP cabling running to receiving transceivers or TVI inputs on recording devices. The unit is compatible with standard TVI signal levels as defined by Techwell and derivative TVI implementations.
Integrators should plan cabling runs with signal attenuation in mind. UTP transmission introduces higher attenuation than coaxial cable; verify maximum distances with the specific TVI camera and recorder combination in use. For runs approaching or exceeding 300 meters, consider active amplification or intermediate repeater stages.
Deployment Scenarios
The TVI16UTP is particularly valuable in retrofit applications where coaxial cabling is not available or cost-prohibitive, such as converting existing network or telephone infrastructure for video security. In new installations, it enables designers to consolidate cabling strategies when both network and analog video transport are required. Indoor telecommunications facilities benefit from the compact form factor and passive operation; outdoor field deployments should ensure the transceiver is housed in an IP-rated enclosure if exposed to weather.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco Technologies TVI16UTP during the planning phase of a multi-building TVI retrofit where existing structured cabling runs were available but coax was not installed. The 16-channel passive architecture delivered straightforward integration without the power budget headaches of active solutions. The TVI16UTP proved reliable across our test distances, and the passive design eliminated one point of failure in the video path.
Technical Highlights:
- Passive Operation: No external power supply required; reduces dependencies and simplifies field installation
- 16-Channel Density: Single unit handles large-scale TVI deployments without multiplexing complexity
- UTP Compatibility: Leverages standard twisted-pair cabling, reducing material and labor costs in installations where coax is unavailable
Deployment Considerations:
- Validate UTP cable runs for TVI signal attenuation; consider active repeaters for runs exceeding design maximums
- House the transceiver in a protected enclosure if deployed outdoors or in harsh environments
- Test end-to-end TVI signal integrity (sync, color, brightness) after installation to confirm cable quality and run distances are compatible
For integrators managing large TVI systems with extended cable runs or retrofit applications, the TVI16UTP is a practical, cost-effective extension solution that maintains video fidelity without introducing active components into the analog path. Order online today.
