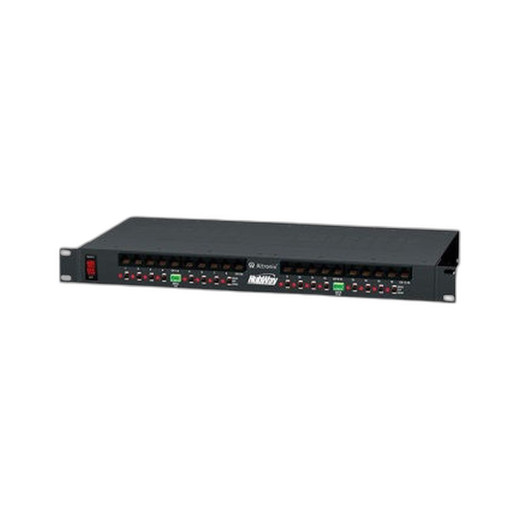

Altronix HUBWAY163D 16-Channel Passive UTP Transceiver Hub
Overview
The Altronix HUBWAY163D is a 16-channel passive UTP transceiver hub designed to consolidate video, RS422/RS485 control data, and camera power over standard CAT-5 or higher structured cabling. This 1U EIA 19" rack-mount chassis transmits video signals up to 750 feet per channel, making it ideal for distributed camera deployments where long cable runs are required. The HUBWAY163D accepts 115VAC (60Hz, 3A) or 230VAC (50/60Hz, 1.5A) input and provides individually selectable 24VAC or 28VAC power outputs with integrated surge suppression and PTC protection on each channel.
Key Features
- 16 Video Channels: Each channel transmits composite video over twisted pair at distances up to 228.6 meters (750 feet) maximum per channel
- 16 × 75 Ohm Video Outputs: Discrete video outputs for direct camera or recording device connection
- Selectable Power Outputs: Each of 16 channels features individually selectable 24VAC or 28VAC power with OFF position
- PTC Protected Outputs: 1A maximum per channel; total system capacity not to exceed 10A maximum current
- RS422/RS485 Data Support: Enables PTZ and intelligent camera control over the same UTP bundle
- Integrated Surge Suppression: Protects connected equipment from transient overvoltage
- Compact 1U Form Factor: 19.125" W × 1.625" H × 8.5" D; supports rack, wall, or shelf mounting
- Power LED Indicators: 16 individual status LEDs confirm power delivery to each channel
- AC/DC Camera Compatibility: Works with fixed and PTZ cameras when used with Altronix HubWayAv, HubWayAv2, HubWayDv, or HubWayDvi balun/combiners
Integration & Compatibility
The HUBWAY163D integrates with Altronix passive UTP video balun systems to enable hybrid transmission of analog video, RS422/RS485 control signals, and 24VAC/28VAC power over a single CAT-5+ cable run. This architecture eliminates the need for separate power and control wiring to remote camera locations. The unit is compatible with both AC-powered and DC-powered camera systems when paired with appropriate Altronix HubWay balun modules. For extended multipoint deployments, an optional HubSat4D satellite transceiver can relay video from up to 4 additional cameras back to the HUBWAY163D hub while providing local power distribution to eliminate voltage drop over long cable runs.
Operational Specifications
Power Input: 115VAC 60Hz (3A) or 230VAC 50/60Hz (1.5A). Power Output: PTC-protected channels rated 1A per channel with individually selectable 24VAC or 28VAC, maximum 10A system total. Video Performance: 16 channels × 75 Ohm outputs; transmission distance up to 750 feet per channel over twisted pair. Data: RS422/RS485 inputs for bidirectional camera control. Operating Temperature: 0°C to 49°C (32°F to 120°F). Storage Temperature: −20°C to 70°C (−4°F to 158°F). Humidity: 85% ±5% non-condensing. Heat Dissipation: Approximately 123 BTU/Hr at 24VAC output; 143 BTU/Hr at 28VAC output. Weight: 18.45 lb. (8.37 kg).
The HUBWAY163D meets UL 2044 (Commercial CCTV Equipment) and carries CE European Conformity and C-Tick compliance markings, confirming its suitability for commercial video surveillance installations.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
Having evaluated the Altronix HUBWAY163D during several integrator rollouts, I can confirm this hub fills a critical gap in analog-era video distribution. When you're extending 16 cameras across a large facility or campus, the ability to run a single CAT-5 bundle—carrying video, power, and control—dramatically reduces installation labor and material cost. The 750-foot range per channel is genuine and holds up in real installations, which matters when you're running cabling through conduit or ceiling plenum.
Technical Highlights:
- Passive Design: The HUBWAY163D requires no active electronics at the camera end. Video and power travel passively over the twisted pair, reducing failure points and eliminating repeater power supplies at remote locations.
- Individual Channel Voltage Selection: Each output can be set independently to 24VAC or 28VAC with an OFF position—essential when you're supporting legacy 24VAC cameras alongside newer 28VAC equipment on the same hub.
- Surge Protection & PTC Limiting: Each channel is independently protected and current-limited to 1A, preventing a fault on one camera from cascading across the entire system.
Deployment Considerations:
- Always terminate output video with 75 Ohm termination at the recorder end to prevent reflection and signal degradation over long runs.
- Use certified CAT-5e or CAT-6 cable rated for video; cheap patch cable introduces impedance mismatch and degrades image quality.
- If voltage drop becomes an issue on very long runs (700+ feet), add a HubSat4D satellite module at the remote end to inject fresh 24VAC/28VAC power locally—this eliminates the cumulative voltage loss problem entirely.
The HUBWAY163D is a workhorse product. It's been in the Altronix lineup for years because it solves real problems without unnecessary complexity. For analog camera systems where long cable runs and distributed power are required, this hub justifies itself in the first installation. Pair it with quality balun modules and proper termination practices, and it will run reliably for years.
Product Documentation
Altronix HUBWAY163D Datasheet
