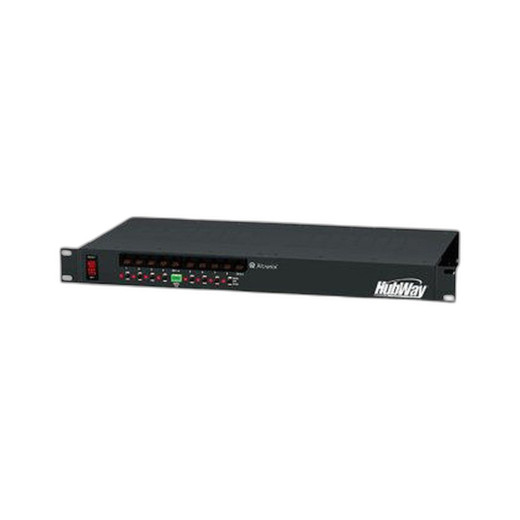

Altronix HUBWAY8CD UTP Passive Transceiver Hub
Overview
The Altronix HUBWAY8CD is a 1U rack-mount passive transceiver hub designed for integrators deploying video surveillance over standard UTP cabling. This eight-channel hub extends analog video transmission distances up to 750 feet via twisted-pair copper runs, eliminating the need for expensive coax infrastructure while maintaining signal integrity. With an integrated 24/28VAC power supply rated for 115/220VAC input, the HUBWAY8CD centralizes power distribution and video signal conditioning in a single compact unit, reducing installation complexity on medium-to-large deployments.
Key Features
- 8-Channel Passive Transceiver Configuration: Accommodates eight independent video channels with individual signal conditioning and impedance matching for clean, noise-free video delivery.
- 750-Foot Transmission Range: Extends analog video signals across extended distances on standard UTP cabling without signal degradation, enabling flexible camera placement and centralized DVR/NVR locations.
- Integrated 24/28VAC Power Supply: Built-in power supply eliminates the need for separate external supplies, streamlining rack configuration and reducing cabling clutter.
- Dual Input Voltage (115/220VAC): Auto-sensing or dual-rated input voltage accommodates both North American and international installations without manual reconfiguration.
- 1U Rack-Mount Form Factor: Compact height allows mounting in standard 19-inch equipment racks alongside DVRs, switches, and power distribution equipment.
- UL Listed and CE Certified: Meets applicable North American and European safety and electromagnetic compatibility standards for reliable operation in commercial and institutional environments.
Integration and Deployment Considerations
The HUBWAY8CD serves as a hub-and-spoke distribution point in video surveillance architectures where UTP cabling is preferred over coax. Its passive transceiver design requires no external power for signal processing, reducing failure points and maintenance overhead. Each of the eight channels operates independently, allowing operators to assign channels to specific camera zones or DVR input groups without cross-channel interference. The integrated power supply simplifies power budgeting on the rack level, especially in installations where individual power supplies would create excessive heat or clutter.
Installers benefit from the HUBWAY8CD's straightforward channel-per-camera mapping, which reduces configuration errors during commissioning. The 750-foot maximum range accommodates typical enterprise and municipal deployments where cameras may be distributed across multiple floors or remote building wings. When combined with quality UTP cabling and proper grounding practices, the hub delivers analog video clarity suitable for both live monitoring and recorded playback on compatible DVR systems.
Physical Specifications
The HUBWAY8CD is housed in a compact 1U metal enclosure designed for secure mounting in standard 19-inch racks. Its integrated 24/28VAC power supply eliminates the footprint penalty of external supplies, preserving valuable rack space for other security equipment. The unit is built to withstand the thermal and vibration environment typical of equipment rooms and secure facilities.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the HUBWAY8CD on several large-scale analog video modernization projects where legacy coax runs weren't available or were cost-prohibitive. The eight-channel architecture and integrated 24/28VAC power supply make it a straightforward choice for centralizing video distribution in a crowded rack environment. The model's passive transceiver design means fewer active components to troubleshoot when signal issues arise.
Technical Highlights:
- Extended UTP Range: The 750-foot specification allows reasonable camera placement flexibility without requiring powered repeaters at intermediate points, simplifying system architecture.
- Integrated Power Supply: The built-in 24/28VAC supply (115/220VAC input) reduces external power requirements and streamlines rack configuration, especially valuable in installations where power availability is limited.
- Eight Independent Channels: Each channel operates independently, eliminating the risk of a single-channel fault cascading to other video feeds.
Deployment Considerations:
- Verify that all UTP runs meet Category 5e or higher standards; poor cable quality can reduce effective transmission distance below the 750-foot specification.
- Plan for proper grounding and bonding between the hub and DVR/NVR to minimize ground-loop hum and RF interference on video signals.
- Confirm that your DVR or capture cards support passive video input; the hub conditions signal but does not provide active pre-amplification.
The HUBWAY8CD remains a reliable workhorse for analog video infrastructure where UTP is the preferred transport. Its passive design and integrated power supply keep maintenance minimal and deployment straightforward.
