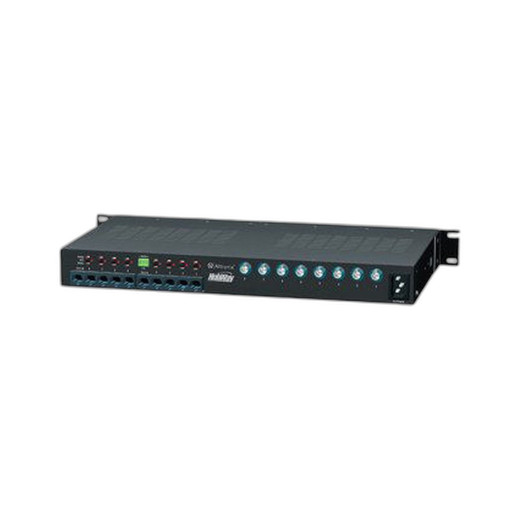

Altronix HUBWAY8CDS UTP Passive Transceiver Hub
Overview
The Altronix HUBWAY8CDS is a compact, passive transceiver hub designed for professional video surveillance installations requiring distributed analog video transmission over standard UTP cabling. This 8-channel unit consolidates video and power distribution in a single 1U form factor, streamlining installation workflows in mid-scale system deployments. With integrated 24/28VAC power generation and passive UTP transceiver technology, the HUBWAY8CDS reduces component count and simplifies field configuration for integrators managing multiple camera locations.
Key Features
- 8-Channel UTP Passive Transceiver Design: Distributes video signals over unshielded twisted-pair cabling without active amplification per channel, reducing power draw and hardware footprint
- Video Transmission Range to 750 Feet: Supports extended cable runs on UTP, enabling flexible camera placement and reducing the need for intermediate distribution points
- Integrated 24/28VAC Power Supply: Built-in transformer-based power generation eliminates separate PSU requirements for auxiliary devices and accessories
- Single-Side Connections: All video inputs, outputs, and power terminals are positioned on one side of the chassis, reducing installation complexity and enabling simplified panel mounting
- 1U Rack Form Factor: Standard 19-inch rack mounting profile fits directly into existing infrastructure racks alongside switches, NVRs, and other security equipment
- Dual Input Voltage Support (115/220VAC): Auto-sensing or manual selectable AC input accommodates international installations and diverse facility power availability
Integration & Compatibility
The HUBWAY8CDS functions as a passive hub in analog video distribution systems, compatible with standard BNC-terminated analog cameras and standard UTP cabling infrastructure. This architecture supports mixed legacy and modern camera deployments where UTP distribution is preferred over coaxial runs. The integrated 24/28VAC output enables direct powering of PTZ cameras, auxiliary relays, and access control devices without additional power modules, reducing physical rack space and simplifying power management documentation.
Passive transceiver topology ensures the HUBWAY8CDS introduces minimal signal degradation when properly terminated, preserving video quality across the specified 750-foot transmission range. The single-side connection layout accommodates both front-access and rear-access panel designs, supporting flexible rack configuration in control rooms and distributed hub installations.
Package Contents
Each HUBWAY8CDS unit ships ready for immediate deployment with integrated power supply and passive transceiver electronics. Verify power cord compatibility with your facility voltage before initial operation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the HUBWAY8CDS in several mid-scale surveillance refresh projects where the site infrastructure was already dominated by Cat5e/Cat6 runs. The integrated 24/28VAC supply was a significant time-saver during PTZ and door-sensor deployments, eliminating the need for separate power modules at the distribution point.
Technical Highlights:
- Extended Range Passive Architecture: The 750-foot UTP capability allows you to position this hub at a central facility point rather than splitting distribution across multiple smaller nodes, reducing overall panel space and power connections.
- Integrated Power Generation: The onboard 24/28VAC transformer output supports auxiliary devices directly—no auxiliary PSU overhead when powering camera heaters, lens motors, or access control interfaces.
Deployment Considerations:
- Verify UTP cable termination quality and impedance matching at both hub and camera ends; passive systems rely on proper cabling to achieve the full 750-foot range without signal boosters.
- The single-side connection layout is ideal for dense rack installations but requires careful planning if you need to service terminals from both front and rear—all patch points exit one side.
- Confirm your facility's AC source voltage (115 or 220VAC) matches the HUBWAY8CDS input configuration before power-up; verify correct input selection if the unit supports dual-voltage switching.
The HUBWAY8CDS is a practical, no-nonsense hub for integrators managing campus or multi-building deployments where UTP backbone infrastructure already exists and you need a reliable, compact distribution node with onboard auxiliary power. It does one job well—passive video and power distribution—without unnecessary complexity.
