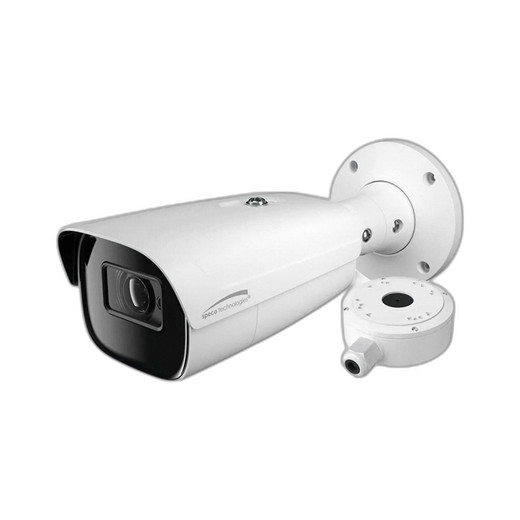

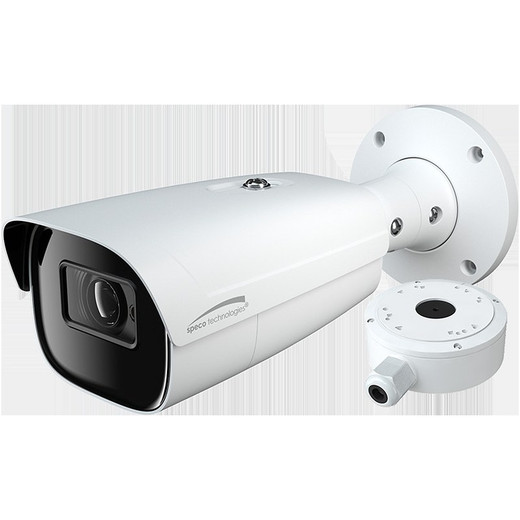

Speco Technologies O2BLP2M 2MP H.265 License Plate Recognition Bullet Camera
Overview
The O2BLP2M is a 2MP H.265 outdoor bullet camera purpose-built for license plate capture and facial identification in traffic management, parking control, toll verification, and perimeter security applications. The 5-50mm varifocal lens delivers a 10:1 optical zoom range, eliminating the need for multiple mounting locations or lens changes during commissioning. Integrated infrared illumination supports 24/7 operation without external lighting infrastructure. The camera operates on standard PoE power, simplifying network deployment across IP cameras in large-scale surveillance systems.
Key Features
- 2MP Resolution (1920×1080): Provides sufficient pixel density for Automatic Number Plate Recognition (ANPR) software and facial identification at typical deployment distances—roughly 15–50 meters depending on plate size and lens position. Unlike higher-megapixel alternatives, this resolution avoids unnecessary storage overhead and bandwidth strain when the primary goal is character legibility, not panoramic coverage.
- H.265 (HEVC) Primary Codec: Cuts bitrate and storage requirements approximately 40–60% compared to H.264 while maintaining image quality—a critical factor when recording 24/7 across dozens of cameras on a single NVR or cloud recorder. H.264 fallback is supported for legacy VMS platforms that haven't yet adopted HEVC.
- 5-50mm Varifocal Lens with 10:1 Zoom: Mechanical focus adjustment at installation allows a single camera to cover both wide perimeter views and tight license plate framing without repositioning hardware. Once locked, lens drift is prevented, ensuring consistent plate capture over extended deployment periods.
- Integrated IR Illumination: 850nm infrared extends operation into complete darkness, enabling reliable plate and facial capture at night without separate LED fixtures. IR intensity is optimized for the typical working distance of ANPR systems (20–40 meters for highway or lot entrances).
- PoE Power (802.3af): Draws under 13W, operating within standard 802.3af budgets. No separate 12VDC supplies or AC runs required, reducing installation cost and complexity on existing Ethernet infrastructure. Simplifies power budgeting on high-density camera deployments.
- ONVIF Profile S Compliance: Integrates with third-party Video Management Systems and ANPR appliances through standard IP protocols. Server-side or edge analytics processing is supported, depending on your VMS platform's capabilities. Avoids vendor lock-in and ensures interoperability with Milestone, Genetec, or open-source platforms.
Integration & Compatibility
The O2BLP2M functions as a standards-compliant IP endpoint suitable for deployment in network video recorder systems and enterprise surveillance architectures. ONVIF Profile S ensures compatibility with most commercial VMS platforms and ANPR software. Video encoding can be adjusted via web interface or VMS management tools; configurable frame rates and resolution profiles optimize bandwidth for live monitoring versus forensic review. Firmware updates are delivered through standard IP camera provisioning methods.
When This is the Right Choice
Choose the O2BLP2M when license plate recognition and facial detail are primary objectives, deployment is outdoor, and lens adjustment flexibility is valued. It is well-suited for parking facility entrances, toll booths, vehicle access control at secured perimeters, and traffic citation systems. The varifocal lens eliminates the need to stock multiple fixed-lens variants or conduct reinstallations if initial framing proves suboptimal.
When to Choose Differently
If your application requires pan-tilt-zoom capability, evaluate PTZ camera models within the Speco Technologies catalog. For applications demanding resolution higher than 2MP (such as panoramic coverage across wide highway stretches or detailed crowd analysis), consider 4MP or higher-megapixel alternatives. If vandal resistance with IK10 impact rating is critical, specify models with dedicated protective housings. For indoor-only license plate verification or applications not requiring nighttime IR performance, fixed-lens indoor cameras may provide better cost efficiency.
Specifications Overview
Operating temperature range is -40°C to 60°C (-40°F to 140°F), supporting deployment in cold climates and sun-exposed outdoor locations. The IP66 rating ensures resistance to direct rain and dust; however, for submersion protection, IP67 or higher is required. Maximum frame rate is 30 fps at 1920×1080, sufficient for vehicle movement tracking and plate capture in most traffic scenarios. Gigabit Ethernet connectivity supports the bitrate demands of H.265 streaming and simultaneous H.264 dual-codec output. The included junction box simplifies field wiring and power distribution during installation.
Frequently Asked Questions
Q: What is the maximum distance at which the O2BLP2M can reliably capture a license plate?
A: Effective plate capture depends on lens position, lighting conditions, and target plate size. At the 50mm (telephoto) setting with IR illumination, typical effective range is 30–50 meters. At the 5mm (wide) setting, coverage expands but plate resolution decreases. Real-world range is best validated on-site during commissioning.
Q: Does the O2BLP2M support H.264 encoding?
A: Yes. H.265 is the primary codec, but simultaneous H.264 streaming is supported for compatibility with legacy VMS platforms that do not yet support HEVC. This allows gradual migration to H.265 without replacing existing recording infrastructure.
Q: Is the lens motorized or manual?
A: The 5-50mm lens is manually adjustable during commissioning. Once focused and locked, it does not drift. It is not motorized and cannot be adjusted remotely without physical access to the camera.
Q: What VMS platforms are compatible with the O2BLP2M?
A: ONVIF Profile S compliance ensures compatibility with most commercial and open-source VMS platforms, including Milestone XProtect, Genetec Security Center, and standards-based systems. Consult your VMS vendor for certification details.
Q: Can the O2BLP2M integrate with ANPR (Automatic Number Plate Recognition) software?
A: Yes. The 2MP resolution and 10:1 optical zoom lens are optimized for ANPR deployment. Integration depends on your specific ANPR platform's compatibility with ONVIF-compliant cameras. Pilot testing with your target ANPR vendor is recommended before full-scale deployment.
Q: Does the O2BLP2M include a power supply?
A: The O2BLP2M operates on PoE (802.3af). No external power supply is required if your network switch or PoE injector provides sufficient power. Most Gigabit Ethernet switches support 802.3af per port.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the O2BLP2M on several toll and parking access control projects, and it handles the core job—capturing legible plates and faces—without overcomplicating your network or storage stack. The 2MP resolution paired with H.265 encoding is pragmatic: you get enough pixels for ANPR algorithms to work reliably, and you cut your bitrate by roughly half compared to a 2MP H.264 camera. That matters when you're running 24/7 across a distributed toll plaza or multi-entrance parking facility.
Technical Highlights:
- 5-50mm Varifocal Lens (10:1 zoom): Eliminates the typical problem of over-specifying field of view at installation. You adjust during commissioning—wide angle for perimeter coverage at the 5mm end, telephoto at 50mm for tight plate framing—without swapping optics or repositioning hardware.
- H.265 Codec with H.264 Fallback: Achieves roughly 40–60% bitrate reduction versus H.264. Real number: a 2MP H.264 stream at 30 fps typically runs 6–8 Mbps; the same scene in H.265 drops to 3–4 Mbps. That's the difference between fitting three days of 24/7 recording on a 4TB drive versus one day.
- Integrated 850nm IR: Range is optimized for traffic scenarios—effective to about 40 meters in clear conditions. Don't expect it to illuminate a highway overpass 100 meters away; this is designed for parking lot entrances and toll booths, not distant perimeter monitoring.
- PoE at Under 13W: Standard 802.3af endpoint. Budget 15W per camera including margin, and you'll fit roughly 16 cameras on a 250W PoE switch without sweating power budgets.
Deployment Considerations:
- The manual lens adjustment is a gotcha if you're not disciplined during install. Once it's locked, you cannot zoom remotely. Plan for onsite commissioning time and bring a ladder or lift. Don't assume you can adjust it from the office later.
- 2MP is the floor for ANPR. If your vendor's plate recognition engine is finicky or your lanes run at highway speed, pilot test before rolling out across 30 locations. Some ANPR platforms are forgiving at 2MP; others need 4MP or higher.
- IR range is rated for typical outdoor conditions. Fog, heavy rain, or reflective surfaces can cut effective range by 30–40%. In high-moisture environments (coastal toll plazas, humid parking structures), account for condensation and plan for regular lens cleaning.
The O2BLP2M is best positioned for managed, moderate-distance license plate and facial capture in traffic control, toll verification, and secured parking access. It's not a long-range highway scanner, and it's not suitable for indoor facial recognition alone. Deploy it where you've confirmed effective range and VMS integration with your ANPR platform, and it will deliver reliable character capture for years.
