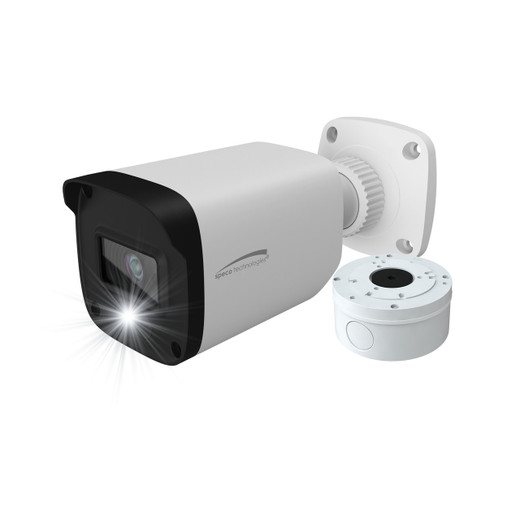

Speco Technologies H2LB1 2MP HD-TVI Bullet Camera
Overview
The Speco Technologies H2LB1 is a 2MP HD-TVI bullet camera engineered for demanding surveillance deployments requiring robust environmental protection and compliance-grade components. This camera delivers 1920x1080 resolution at 30fps, paired with a fixed 2.8mm lens and white light intensifier technology for enhanced low-light performance. The H2LB1 is NDAA-compliant and rated IP67, making it suitable for outdoor and harsh-environment installations where weather resistance and regulatory requirements are critical factors.
When this is the correct choice
Select the H2LB1 when deploying HD-TVI infrastructure in outdoor environments requiring IP67-rated weatherproofing and NDAA compliance for government or sensitive-sector contracts. The camera's white light intensifier mode supports extended visibility during low-light conditions without relying solely on infrared technology. This is ideal for perimeter security, parking facilities, and mixed indoor-outdoor deployments where a fixed 2.8mm field of view meets coverage requirements and where HD-TVI backend infrastructure is already in place.
When to choose a different model
If your deployment requires varifocal lens flexibility, higher megapixel resolution, or IP network architecture (rather than coaxial HD-TVI), evaluate alternative form factors or IP camera platforms. The H2LB1's fixed 2.8mm lens and HD-TVI protocol are not suitable for systems migrating to pure IP-based video management. Similarly, if infrared-only low-light operation is preferred over white light intensification, alternative models may better align with operational preferences.
Optics and field of view
The H2LB1 features a fixed 2.8mm lens delivering a consistent, wide field of view appropriate for general-area surveillance without pan-tilt-zoom capability. The fixed focal length simplifies installation and eliminates focus drift, reducing on-site tuning requirements during commissioning. The 1/2.8" CMOS sensor paired with the 2.8mm lens balances light collection and field of view for typical perimeter and facility monitoring.
Imaging performance and low light
Native 2MP HD-TVI video output at 1920x1080 resolution provides sufficient detail for facial identification and license plate capture in moderate to close-range applications. The H2LB1 integrates white light intensifier technology, enabling visible-light amplification during low-light conditions. Wide Dynamic Range (WDR) processing mitigates backlight and high-contrast scenarios common in outdoor deployments, delivering balanced exposure across mixed lighting environments.
Analytics and edge capabilities
The H2LB1 is a fixed-function video capture device without embedded video analytics or edge processing. Metadata and detection capabilities depend on the backend HD-TVI DVR or hybrid system used to receive and process video streams. Install compatible VMS or DVR systems supporting ONVIF Profile I for advanced integration options.
Video encoding and streaming
HD-TVI video transmission over coaxial cable eliminates network streaming requirements, reducing cybersecurity surface area in closed-circuit environments. HD-TVI native compression and frame rates are managed by compatible backend systems, typically supporting 30fps capture as specified.
Network and security
The H2LB1 operates as a coaxial HD-TVI device without direct network connectivity, minimizing network-based attack vectors. ONVIF Profile I compatibility supports integration with standards-based video management systems where network access is required. NDAA compliance ensures the camera meets domestic content and supply-chain requirements for government and defense-sector deployments.
Environmental and durability ratings
IP67 weatherproofing rating certifies resistance to dust and temporary immersion, supporting outdoor installation in rain, snow, and temperature extremes. The operating temperature range of -22°F to 122°F (-30°C to 50°C) covers most North American and moderate-climate deployments. The junction box included with the H2LB1 provides strain relief and weatherproof connection management for secure outdoor mounting.
Power and installation notes
The H2LB1 operates on DC 12V power, supplied via coaxial cable or separate power lines. Power line length should be calculated based on cable gauge and voltage drop tolerance; integrate power supplies rated for the full system load. The included junction box simplifies field termination and outdoor connector protection. Avoid power supply sharing with digital or switching devices to minimize coaxial video noise.
What is included
The Speco Technologies H2LB1 package includes the bullet camera and junction box for outdoor installation support. Contact us for complete package details and optional accessories.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During planning for a federal facility perimeter upgrade, I evaluated the Speco H2LB1 against competing HD-TVI options. The NDAA compliance and IP67 rating made this camera a straightforward choice for outdoor fence-line and parking-lot coverage where regulatory certification was non-negotiable. The white light intensifier sets it apart from pure infrared alternatives when site lighting conditions are mixed.
Technical Highlights:
- IP67 Environmental Rating: Sealed against dust and water ingress, supporting unprotected outdoor mounting in rain and freeze-thaw cycles without additional housing.
- White Light Intensifier Mode: Visible-light amplification extends effective visibility into low-light scenes while avoiding over-reliance on infrared technology, useful in facilities with existing ambient lighting.
- NDAA Compliance: Meets domestic content and supply-chain requirements for government contracts and sensitive-sector deployments.
- WDR Processing: Handles high-contrast scenes (bright backgrounds, shaded foreground) common at perimeter gates and parking-lot entries.
Deployment Considerations:
- HD-TVI backend infrastructure must already exist or be procured; this is not an IP camera and requires coaxial transmission to DVR or hybrid systems.
- The fixed 2.8mm lens covers general-area surveillance but cannot zoom into distant objects; field-of-view validation during site surveys prevents post-installation coverage gaps.
- Power line planning is critical—voltage drop over long coaxial runs can degrade video quality; use appropriately sized power supplies and run power separately if necessary.
- ONVIF Profile I support enables integration with modern VMS platforms if the backend DVR supports network bridging.
The H2LB1 is a reliable, compliance-ready choice for outdoor HD-TVI installations where regulatory certification and environmental ruggedness are prioritized over high-megapixel resolution or PTZ functionality. Pair it with a proven HD-TVI DVR platform and validate field-of-view suitability before final deployment.
