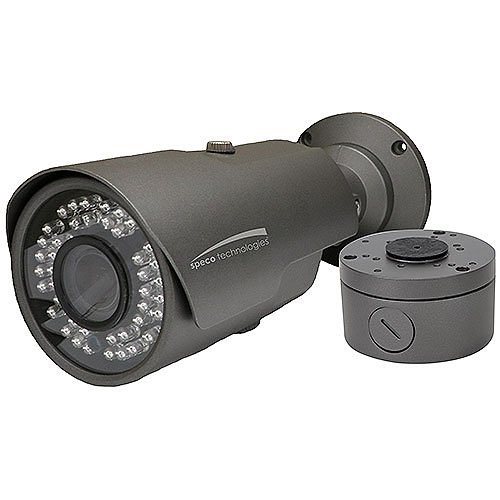

Speco Technologies HT7040TM 2MP HD-TVI Bullet Camera
Overview
The Speco Technologies HT7040TM is a compact 2MP HD-TVI bullet camera designed for outdoor surveillance where flexible framing and low-light performance matter. Built with a motorized 2.8-12mm varifocal lens, the HT7040TM delivers 1920×1080 resolution at 30fps, letting you adjust field of view during commissioning without swapping lenses. The grey housing includes an integrated junction box for simplified wiring and carries TAA compliance, meeting federal procurement requirements. Choose this camera when you have existing HD-TVI infrastructure or prefer coaxial-based architectures over IP-native systems.
Key Specifications & Benefits
- 2MP (1920×1080) at 30fps: Captures sufficient detail for identification and forensic review in general-purpose surveillance. At this resolution, scene complexity (foliage, weather, reflections) stays manageable for DVR storage calculations—expect roughly 30–50 GB per camera per day with moderate compression.
- Motorized 2.8-12mm varifocal lens: Provides approximately 113° horizontal field of view at 2.8mm (wide) and 28° at 12mm (telephoto). Motor-driven zoom and focus eliminate the need to stock multiple fixed-lens variants for similar deployment footprints. Technicians can dial in exact framing on-site or adjust remotely if the DVR supports motor control signals.
- HD-TVI video transmission over coaxial cable: Sends baseband analog-like signals directly to a compatible HD-TVI DVR or hybrid recorder. No IP networking layer, no HTTP streaming, no embedded credentials—coaxial cable provides physical isolation from network attack surfaces. Operates up to 500 meters typically without additional encoding overhead.
- True day/night with infrared: Integrated IR illumination enables continuous 24/7 monitoring without switching external lighting. True WDR (Wide Dynamic Range) processing balances exposure in mixed-lighting scenes—building entrances with bright skylights and shadowed alcoves render usable video across the entire frame without washout or crushing.
- IP67 environmental rating: Fully sealed against dust and protected against temporary immersion (up to 1 meter for 30 minutes). Operating temperature range of -4°F to 122°F supports year-round outdoor deployment in temperate climates. This rating handles direct rain and hose-down scenarios; do not submerge permanently or use in high-pressure washdown environments.
- Motion detection analytics: Supports basic motion triggers when integrated with compatible DVR or NVR platforms. Motion-triggered recording reduces storage consumption and simplifies event review. No on-camera deep learning or advanced object classification—analytics are DVR/recorder-dependent.
Integration & Compatibility
The HT7040TM connects directly to HD-TVI DVR or hybrid recorder inputs via coaxial cable. It does not connect to IP networks, possess an embedded web interface, or support firmware updates on the camera itself. Recording, motion configuration, and motor control (if supported) are managed entirely through the compatible DVR or hybrid recorder. Verify that your recording platform supports HD-TVI input channels and motor-driven lens control before procurement.
When This Is the Right Choice
Deploy the HT7040TM for outdoor perimeter monitoring, parking areas, building exteriors, and general-purpose surveillance where operators need flexible zoom capability and true day/night imaging. It excels in environments with existing coaxial infrastructure, shorter cable runs (under 500 meters), or organizations preferring analog-based architectures over IP-native systems. Its TAA compliance also makes it suitable for federal or government procurement frameworks.
When to Consider Alternatives
If your installation requires IP-native streaming, ONVIF interoperability, or integration with modern IP VMS platforms, evaluate IP cameras instead. For indoor applications with minimal environmental exposure, fixed-lens cameras may reduce cost and complexity. High-motion environments requiring 60fps frame rates should explore alternative models with higher capture speed support. Organizations seeking advanced on-camera analytics (people counting, vehicle detection, anomaly detection) will need a platform with embedded deep learning capabilities—this model depends on DVR-based motion detection only.
Mounting & Installation
The HT7040TM ships in bullet form factor with wall or ceiling mount provisions. Standard Speco mounting hardware supports horizontal and angled installations. Junction box integration simplifies coaxial and power connections during commissioning. Ensure mount surfaces are structurally sound and weathersealed; over-tightening the varifocal lens motor can cause mechanical binding.
Frequently Asked Questions
Q: Does the HT7040TM work with IP-based VMS platforms like Milestone or Genetec?
A: No. The HT7040TM is an HD-TVI camera and requires a compatible HD-TVI DVR or hybrid recorder. It does not support ONVIF or IP-native protocols. If you need IP-based VMS integration, select an IP camera from the Speco catalog instead.
Q: What is the maximum cable run distance for the HT7040TM?
A: HD-TVI signals typically operate reliably up to 500 meters (1,640 feet) over standard RG59 or equivalent coaxial cable. Beyond that distance, signal degradation may occur. Verify cable quality and run length with your DVR manufacturer's recommendations.
Q: Can I remotely adjust the varifocal lens zoom and focus?
A: Yes, if your compatible DVR or hybrid recorder supports motor control signals. Confirm motor control capability on your recording platform before purchase. If your DVR does not support motor control, lens adjustment must be performed manually on-site.
Q: What is the infrared range on the HT7040TM?
A: The infrared illumination range is not specified in available documentation. Contact the manufacturer or your integrator to confirm IR performance for your specific deployment scenario.
Q: Is the HT7040TM TAA-compliant?
A: Yes. The HT7040TM carries TAA (Trade Agreements Act) certification, meeting federal procurement requirements for government and publicly funded projects.
Q: What power does the HT7040TM require?
A: The HT7040TM operates on PoE (Power over Ethernet). Check your DVR or recorder documentation for PoE supply availability on each video input channel.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HT7040TM is a straightforward choice for organizations with committed HD-TVI infrastructure. If you're already running coaxial-based recording platforms and need motorized zoom flexibility, this camera delivers value without network complexity. The 2MP resolution and 1920×1080 30fps stream is sufficient for most perimeter and parking applications, and the varifocal lens eliminates inventory headaches across similar deployment sites.
Technical Highlights:
- Motorized 2.8-12mm varifocal lens: Covers 113° wide to 28° telephoto. Means you dial in framing during commissioning without swapping optics, reducing truck rolls and on-site adjustment time.
- True WDR processing: Balances bright and dark areas in mixed-light scenes. Critical for building entrances and covered loading docks where skylights create harsh contrasts.
- IP67 rating with -4°F to 122°F operating range: Handles year-round outdoor deployment without environmental concerns—direct rain, dust, and freeze-thaw cycles won't compromise the camera housing.
- HD-TVI coaxial transmission: No IP layer means no credential management, no firmware update surface, no network scanning. Physical cable isolation is a security feature if your installation sits on an isolated or air-gapped network.
Deployment Considerations:
- Architecture lock-in: HD-TVI commits you to coaxial-based recording. If you migrate to an IP VMS platform in the future, you'll need to replace cameras and cabling. Plan for this if modernization is on the roadmap within 5–7 years.
- Cable run limits: 500-meter maximum distance over standard coaxial cable. Longer runs require signal boosters or repeaters, adding cost and complexity. Verify DVR location before finalizing camera placement.
- Motor control dependency: Remote zoom and focus require DVR support. Some budget DVR platforms lack motor control channels. Confirm this feature on your recorder before purchase, or you're limited to manual lens adjustment.
- Analytics are DVR-dependent: No on-camera object detection, people counting, or vehicle classification. Motion detection only. If advanced analytics are required, source a different camera class or upgrade the recording platform.
The HT7040TM is the right call for outdoor perimeter and parking surveillance in organizations with established coaxial infrastructure and no immediate IP-migration timeline. It's rugged, weathersealed, and the varifocal lens cuts procurement complexity. Don't force it into new deployments planning IP-native architecture—the architectural mismatch will surface during VMS selection and cost you flexibility down the road.
