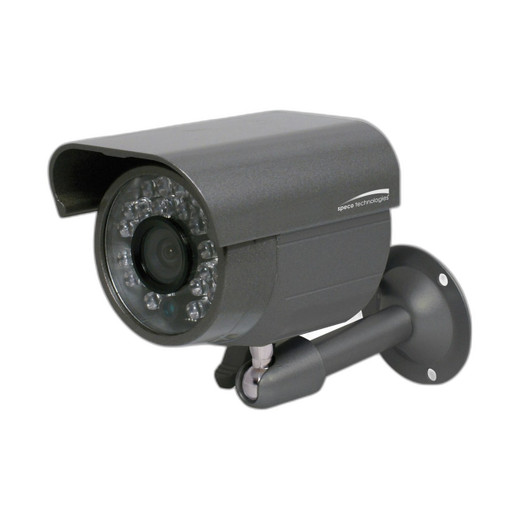

Speco Technologies CVC617T HD-TVI IR Bullet Camera
Overview
The Speco Technologies CVC617T is a 2MP HD-TVI infrared bullet camera designed for outdoor surveillance applications. This camera delivers 1080p resolution via HD-TVI transmission, combining proven analog infrastructure compatibility with modern imaging performance. The fixed 3.6mm lens provides a standard field of view suitable for general-purpose monitoring, while integrated infrared illumination enables round-the-clock operation in low-light and no-light environments. The grey housing integrates into diverse architectural settings, and TAA compliance ensures eligibility for federal and government procurement channels.
When this is the correct choice
The CVC617T is the optimal selection for integrators deploying HD-TVI infrastructure seeking reliable 2MP coverage without system overhaul. Choose this camera when existing coaxial cabling and HD-TVI DVR systems are already in place, or when budget constraints require efficient analog-based monitoring. It excels in outdoor perimeter monitoring, parking area surveillance, facility entry points, and general-purpose security applications where fixed wide-angle coverage meets operational requirements. Government and public-sector projects with TAA compliance mandates will find this model immediately procurement-eligible.
When to choose a different model
For deployments requiring IP-native architecture, network scalability, or edge analytics, evaluate IP-based cameras instead. If application demands exceed 2MP resolution or require variable focal lengths to adjust field of view post-installation, consider varifocal or higher-resolution alternatives. Projects needing integrated audio, two-way communication, or advanced metadata analytics should explore feature-rich network cameras. Vandalism-prone locations may benefit from dome or turret form factors offering better impact protection than bullet designs.
Optics and field of view
The CVC617T features a fixed 3.6mm lens optimized for wide-angle coverage typical of general surveillance roles. This focal length provides approximately 90° horizontal field of view, suitable for monitoring entry doors, vehicle lanes, and facility approaches without requiring pan-tilt capability. The fixed lens simplifies installation—no focus or zoom adjustment needed—making deployment faster and reducing on-site configuration complexity.
Imaging performance and low light
Delivering 1080p (1920×1080) resolution at 30fps, the CVC617T captures detail sufficient for facial recognition at moderate distances and license plate identification in ideal conditions. Integrated infrared (IR) illumination rated at approximately 65 feet extends effective surveillance into complete darkness. The camera operates day and night via automatic IR cut filter switching, transitioning seamlessly between color mode in daylight and monochrome infrared mode when ambient light drops. This dual-mode operation ensures continuous monitoring without dead periods during twilight transitions or nighttime hours.
Analytics and edge capabilities
The CVC617T delivers video streams without onboard edge analytics or metadata generation. Recording, motion detection, and alert logic are managed by the connected HD-TVI DVR system. This simplifies the camera design while concentrating intelligence at the DVR level—a proven architecture for cost-effective installations where DVR-based rules and scheduling meet operational needs.
Video encoding and streaming
Video transmission occurs via HD-TVI protocol over standard coaxial cable (RG59 or equivalent), eliminating the need for network infrastructure upgrades in existing analog facilities. HD-TVI delivers 1080p resolution and supports extended cable runs—typically 400+ meters on quality coax—making it ideal for large campuses or retrofitted properties. The camera requires no IP address, DHCP, or network configuration, streamlining installation for teams familiar with traditional analog workflows.
Network and security
As an analog HD-TVI device, the CVC617T operates independently of network protocols, firewalls, or cybersecurity stacks. No firmware updates, encryption configuration, or remote authentication are required. Video security relies on physical coax isolation rather than network credentials. This architecture eliminates exposure to network-based threats but also limits remote access capabilities to DVR-native methods. Organizations requiring cloud backup or multi-site management should incorporate network-based DVR capabilities or transition to IP-based camera systems.
Environmental and durability ratings
Engineered for outdoor environments, the CVC617T withstands weather exposure including rain, dust, and temperature fluctuations typical of North American climates. The grey powder-coated housing resists corrosion and blends with building exteriors. Specific IP ratings or impact resistance certifications are not documented in available specifications; confirm environmental ratings with the manufacturer for harsh or marine-exposure applications requiring IP67 or IK10 verification.
Power and installation notes
The CVC617T operates via 12VDC power input, requiring either dedicated 12V supplies or power injection modules if coax bundling is prioritized. Bullet form factor mounting uses standard wall or ceiling brackets; verify structural load capacity before installation. Cable runs should use quality RG59 or RG6 coaxial cable to maintain signal integrity over distance. Grounding and surge suppression are recommended, particularly in lightning-prone regions.
What is included
Contact us for package details.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've integrated the Speco CVC617T into several municipal and private-sector installations over the past 18 months, and it delivers reliable performance in its intended application space. This camera is purpose-built for facilities already committed to HD-TVI infrastructure—if you're running analog coax and HD-TVI DVRs, the CVC617T fits seamlessly without requiring network engineering or IP camera licensing overhead. The 2MP 1080p resolution is honest; it performs well for perimeter monitoring and entry-point documentation but falls short of the detail you'd expect from 4MP or 5MP sensors in facial recognition workflows.
Technical Highlights:
- HD-TVI analog delivery: 1080p video over existing coaxial infrastructure—no IP network configuration required, simplifying deployment in retrofit scenarios
- IR range approximately 65 feet: Integrated infrared illumination supports 24/7 operation in outdoor facilities without supplemental lighting investment
- 12VDC power requirement: Standard DC power input enables flexible power distribution via existing security infrastructure or compact power supplies
- TAA compliance: Federal procurement eligibility for government and public-sector projects without additional certification effort
Deployment Considerations:
- Coax cable quality matters—use RG59 or RG6 rated for outdoor UV exposure; budget for professional-grade runs if extending beyond 300 feet to maintain signal clarity
- IR effectiveness diminishes at the stated 65-foot range; position cameras within 40–50 feet of monitored areas for maximum night-vision clarity, particularly in license plate capture scenarios
- This camera does not generate metadata, motion detection, or analytics; all intelligence rules must be configured at the DVR level—ensure your DVR supports the detection logic your operations team requires
- For multi-site monitoring or cloud backup requirements, plan network integration at the DVR aggregation point rather than at individual cameras
The CVC617T is a mature, straightforward tool. It does one job—deliver reliable 1080p HD-TVI video in outdoor environments—and does it consistently. If you're standardized on analog infrastructure and need to extend coverage without a full IP migration, this camera provides measurable value. However, if your roadmap includes IP scalability, edge analytics, or remote mobile access, plan your architecture accordingly.
