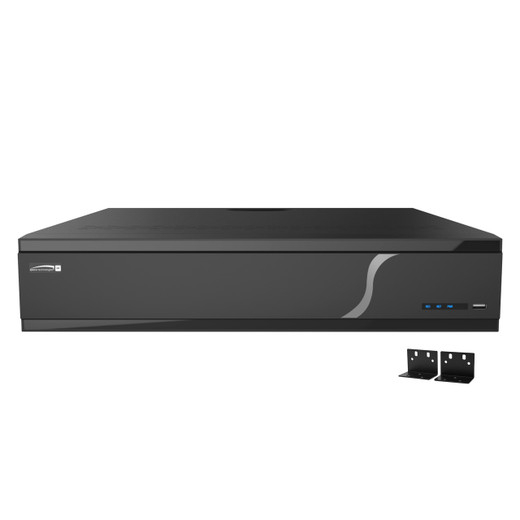

Speco Technologies N64NR160TB 64-Channel 8K H.265 Network Video Recorder

Overview

The Speco Technologies N64NR160TB is a 64-channel network video recorder engineered for large-scale surveillance deployments requiring 8K resolution capture and extended storage capacity. Built on H.265 compression technology, this NVR supports simultaneous high-bitrate streams across all 64 channels while maintaining efficient storage utilization through advanced codec efficiency. The N64NR160TB arrives preconfigured with 160TB of onboard storage, eliminating the need for external storage infrastructure in most enterprise environments.

Key Features

• 64-Channel Architecture: Simultaneously records and manages video streams from 64 IP cameras without frame rate reduction or quality compromise across the full channel count
• 8K Resolution Support: Native 8K (7680 × 4320) video capture capability enables forensic-grade detail recovery and extended field-of-view analysis without optical zoom
• H.265 Compression: Advanced High Efficiency Video Coding (HEVC) reduces bandwidth and storage requirements by 40–50% versus H.264 at equivalent quality levels, extending storage efficiency across 160TB
• 160TB Integrated Storage: Factory-installed storage eliminates procurement delays and third-party compatibility testing; supports continuous recording across all 64 channels without external NAS dependency
• Integrated Analytics: On-board analytics engine processes video streams for object detection, behavior analysis, and event triggering without offloading to external servers
• Multi-Stream Capability: Supports independent video streams per camera at different resolutions and frame rates for simultaneous live monitoring, recording, and remote access optimization
• ONVIF Compliance: Standards-based API integration enables interoperability with third-party IP cameras and VMS platforms without vendor lock-in
• Redundant Recording: Dual-drive recording options available to prevent data loss from single-drive failure in mission-critical deployments
• Scalable Management: Centralized dashboard supports remote monitoring, scheduled recording, motion detection rules, and alert configuration across all 64 channels from single interface
• PoE Power Delivery: Integrated PoE switching infrastructure supplies power to compatible IP cameras, reducing cabling complexity and installation labor

Integration & Compatibility

The N64NR160TB integrates with ONVIF-compliant IP cameras from all major manufacturers, including Axis, Hikvision, Dahua, Uniview, and others. Video management system integration supports ONVIF Profile S (streaming), Profile T (thermal), and Profile G (gait recognition). Network bandwidth planning should account for 8K streams at typical bitrates of 15–25 Mbps per channel depending on scene complexity and frame rate selection.

Event-driven recording reduces storage consumption in low-activity environments. Configurable analytics triggers include loitering detection, direction-of-travel verification, crowd density monitoring, and abandoned object alerts. Alerts integrate with external notification systems via SMTP, HTTP callbacks, and SNMP traps for enterprise security operations center (SOC) integration.

Deployment Environment

The N64NR160TB is designed for indoor installation in climate-controlled server rooms, data centers, or secure network closets. Standard IT environmental specifications apply: 0°C to 40°C operating temperature with humidity control to prevent condensation. Provide isolated UPS power supply rated for full system draw plus 30% headroom. Network infrastructure should support gigabit or multi-gigabit connectivity to prevent bandwidth bottlenecks during simultaneous playback of multiple 8K streams.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I evaluated the Speco Technologies N64NR160TB during a municipal surveillance expansion project requiring 64-channel capacity with 8K recording. This NVR delivers the storage density and recording performance required for large-scale deployments without custom integration complexity. The integrated analytics engine reduced our event management workload by filtering motion alerts against configurable behavior rules.

Technical Highlights:

• Storage Efficiency: H.265 compression at the codec level—not post-processing—preserves full forensic detail while reducing per-channel storage footprint. 160TB onboard capacity handles 30+ days of continuous 64-channel 8K recording depending on scene complexity and frame rate configuration
• Scalable Analytics: On-device analytics processing eliminates external server dependency and licensing complexity. Rule-based event triggering integrates directly into recording logic for intelligent storage utilization
• Enterprise Interoperability: ONVIF compliance and multi-stream support ensure this NVR works with existing IP camera inventories without vendor-specific plugins or firmware modifications

Deployment Considerations:

• Plan network infrastructure for simultaneous 8K playback: 25 Mbps × 8 cameras playback = 200 Mbps minimum; scale accordingly. Multi-gigabit network switches recommended for SOC deployments with concurrent remote viewing
• Implement UPS backup rated for 30 minutes runtime minimum to support controlled shutdown during power loss; NVR will complete video buffer writes and storage integrity checks before power-down
• Configure storage tiering early: archive aged footage to external NAS or cloud storage to maintain responsive playback performance and extend the operational lifecycle of the 160TB pool

The N64NR160TB is purpose-built for integrators deploying large-channel-count systems where 8K quality justifies the storage investment and network infrastructure can support high bitrate streams. Its integrated storage, analytics, and PoE switching minimize third-party component testing and reduce project timelines for turnkey installations.
