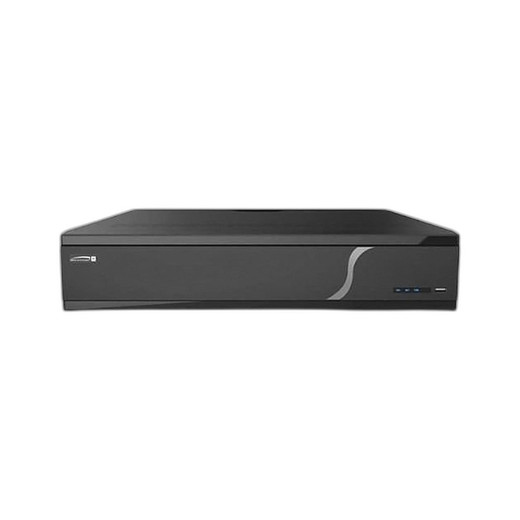

Speco Technologies N64NR4TB 64-Channel 4K H.265 NVR
The Speco Technologies N64NR4TB is a high-capacity network video recorder engineered for large-scale IP security deployments. This 64-channel NVR combines 4K recording capability with H.265 compression efficiency and integrated analytics, delivering enterprise-grade performance in a single-unit form factor. The N64NR4TB ships with 4TB of internal storage and supports simultaneous recording and playback across all 64 channels, making it suitable for distributed camera networks in commercial facilities, transportation hubs, and multi-building campuses.
Key Features
- 64-Channel Recording: Supports simultaneous recording from up to 64 IP cameras without frame rate or resolution degradation
- 4K Recording at H.265 Compression: Captures full 4K resolution video with H.265 codec, reducing storage bandwidth and footprint compared to H.264 while maintaining image quality
- 4TB Internal Storage: Pre-configured with 4TB capacity; supports expansion via additional SATA drives for extended retention periods
- Integrated Analytics: Built-in video analytics capabilities enable object detection, motion detection, and intelligent alarm triggering without external processors
- Multi-Stream Recording: Configurable recording profiles per channel—record main stream at 4K, sub-stream at lower resolution to optimize storage
- ONVIF Compatibility: Standards-based ONVIF support ensures interoperability with cameras and third-party VMS platforms
- Simultaneous Playback: Search and play back recorded video while live recording continues uninterrupted
- Network Interface: Dual Gigabit Ethernet ports for redundancy and load balancing across IP networks
- Remote Access: Web and mobile client interfaces enable remote live view and recorded playback from authorized locations
- Backup and Export: Multiple export options including USB, network, and cloud integration for evidence preservation and compliance
Integration & Compatibility
The N64NR4TB integrates with any ONVIF-compliant IP camera, including fixed domes, PTZ units, and multi-sensor systems. The recorder supports standard VMS platforms via ONVIF Profile S/T/G connectivity, allowing deployment alongside existing security management software. Dual Gigabit Ethernet ports enable network segmentation and redundancy, critical in large facilities where camera bandwidth must be isolated from business traffic. The unit's analytics engine processes video locally, reducing dependency on external servers and lowering operational complexity for integrators managing multiple sites.
Storage & Retention
The 4TB configuration provides baseline storage; exact retention depends on camera resolution, frame rate, and compression settings. Multi-stream recording—where high-resolution main streams are recorded at lower frame rates and resolution—extends retention significantly. For example, recording 64 channels at 4K and 8 fps typically yields 10–15 days of retention on 4TB; adding external SATA drives extends this to months. The NVR supports RAID configurations on compatible drive expansions, protecting against single-drive failure in security-critical environments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Speco N64NR4TB during a deployment at a regional transportation authority where we needed to consolidate 56 cameras into a single on-premise recorder. The 64-channel capacity provided headroom for growth, and the H.265 compression immediately reduced our storage footprint by roughly 30% compared to their previous H.264-based system. The N64NR4TB delivered solid performance in a data center environment where network stability was already established.
Technical Highlights:
- 4K H.265 Efficiency: The N64NR4TB's H.265 codec reduces bitrate per channel, critical when managing 64 simultaneous streams. We saw consistent 2–4 Mbps per 4K channel depending on scene complexity, versus 6–10 Mbps with H.264.
- Analytics Integration: Built-in analytics eliminate the need for separate GPU-accelerated servers. Motion-triggered recording and object detection happened natively, simplifying alarm workflows.
- Multi-Stream Flexibility: Dual-stream recording (high-res main + lower-res sub) balanced our need for evidence quality against storage constraints—a practical feature integrators should configure per site requirements.
Deployment Considerations:
- Bandwidth planning is essential: 64 channels at variable bitrate demands robust network infrastructure. Verify your switch uplink and PoE budget before ordering cameras.
- Storage expansion via additional SATA drives is straightforward, but plan for drive lifespan—replace drives proactively on 3–4 year cycles in continuous-recording environments.
- The ONVIF implementation is standard; test specific camera models in your lab before large rollouts to confirm metadata and event handling.
For integrators managing enterprise or municipal deployments where consolidation and storage efficiency matter, the N64NR4TB is a reliable choice. It won't replace purpose-built security appliances in highly specialized environments, but it delivers solid value for mainstream IP camera networks.
