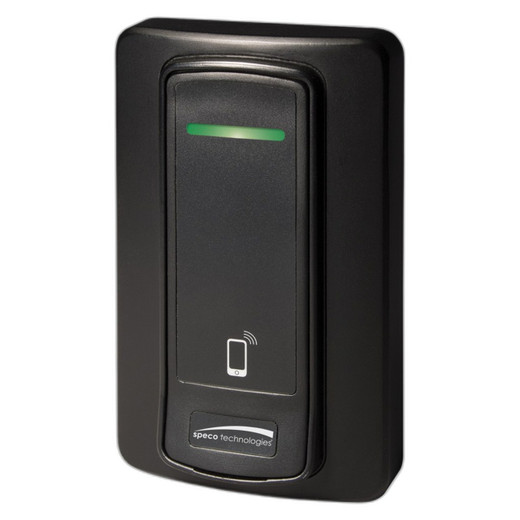

Speco Technologies ACSR35L Contactless Smart Card Reader
The Speco Technologies ACSR35L is a long-range, weather-resistant contactless smartcard reader engineered for enterprise access control systems requiring dual-credential support. This reader operates simultaneously on 13.56 MHz (contactless smartcard) and 2.4 GHz Bluetooth Low Energy (BLE) bands, allowing credential reads from physical cards, key fobs, and smartphone-based mobile credentials. The ACSR35L delivers a 15-foot read range for BLE mobile credentials—a practical advantage when you need to authenticate users before they reach a physical door or checkpoint—while maintaining the standard 1.5-inch range for traditional ISO 14443 Type A/B smartcards. IP67 construction with epoxy potting and tamper-resistant design makes this reader suitable for perimeter gates, outdoor checkpoints, and weather-exposed wall or mullion mounts where environmental durability is non-negotiable.
Key Features
- 15-foot BLE read range: Mobile credentials on smartphones authenticate users from distance, reducing contact points and improving throughput at high-traffic entry points.
- Dual-frequency operation: 13.56 MHz contactless smartcard combined with 2.4 GHz Bluetooth means one reader handles physical cards, fobs, and app-based credentials without additional hardware.
- IP67 rating with epoxy potting: Direct rain, dust, and moisture won't compromise the reader. Skip this if you need full submersion—IP67 stops short of underwater use.
- Wiegand (26–64 bit, 32 formats) or OSDP output: Integrates with legacy Wiegand-based access control panels and modern OSDP systems. Choose Wiegand for older security infrastructure; OSDP for newer deployments demanding bidirectional communication and encrypted credential exchange.
- Multi-credential format support: MIFARE Classic, DESFire EV1/EV2, UltraLight, Plus, FIPS 201 PIV Type A, TWIC, and CAC—covers government, defense, and enterprise compliance requirements in a single device.
- Sector and card serial number (CSN) reads across 32 integrated formats: Reduces custom firmware development and simplifies credential provisioning when migrating between card types.
- Five-state LED indicator (blue, red, green, amber, off) with audio beeper: Visual and audible feedback on read status, authentication state, and error conditions helps operators and integrators diagnose installation issues on-site.
- Operating temperature −40°F to 149°F (−40°C to 65°C): Deployed in Canadian winters and desert heat without thermal de-rating; verify your climate falls within this window before specifying for extreme environments.
- Power draw: 40 mA typical @ 12 VDC, 195 mA peak: Low quiescent current reduces standby load on your access control power supply; peak draw during BLE transmission is brief and predictable.
- Single-gang wall box, metal door frame, and mullion mounting: Flexible form factor fits standard electrical boxes and retrofit into existing metal frames without major structural rework.
- NDAA Section 889 Part B compliant: Critical for government and defense integrators—confirms no prohibited foreign components in the supply chain.
- FCC, ICC, CE, and UL 294 certified: Meets electromagnetic compliance, card reader safety, and access control standards across North America and Europe.
Integration & Compatibility
The ACSR35L pairs with any access control panel supporting Wiegand input or OSDP protocol. Wiegand output (26–64 bit) works with older legacy panels and new systems alike; OSDP enables encrypted credential delivery and real-time reader health monitoring. Cabling requires 24 AWG minimum, multiconductor stranded with foil shield to prevent RF interference in crowded electrical enclosures. Power supply should deliver 8–14 VDC at minimum 195 mA peak capacity; under-spec'd supplies will cause intermittent BLE dropout during high-traffic windows. For mobile credential deployment, pair with a Conekt-compatible mobile access platform or any FIPS 201-compliant smartphone credential service that transmits BLE beacons on 2.4 GHz.
When to Choose a Different Model
The ACSR35L excels in outdoor, multi-credential environments where mobile access is a requirement. If your deployment is card-only (no smartphone credentials), a lower-cost single-mode smartcard reader may reduce hardware spend. If you need very long range (beyond 15 feet) for outdoor checkpoint scanning, explore ultra-high-frequency (UHF) RFID readers—they deliver 50+ foot reads but require different credential infrastructure and higher power draw. For indoor-only access, consider a standard IP20-rated contactless reader without weatherproofing to save cost.
Frequently Asked Questions
Q: Is the ACSR35L NDAA Section 889 compliant?
A: Yes. The reader is certified NDAA Section 889 Part B compliant, confirming no prohibited foreign components in the supply chain. Required for U.S. government and defense installations.
Q: Can the ACSR35L work with my existing Wiegand access control panel?
A: Yes. The ACSR35L outputs Wiegand format (26–64 bit, 32 formats) compatible with standard legacy panels. It also supports modern OSDP for systems requiring encrypted bidirectional communication.
Q: What mobile credential platforms does the ACSR35L support?
A: The reader supports Conekt Mobile Access and any FIPS 201-compliant smartphone credential service transmitting BLE beacons on 2.4 GHz. Confirm your mobile access platform's BLE implementation matches the 13.56 MHz + 2.4 GHz dual-frequency design.
Q: What's the warranty on the ACSR35L?
A: Lifetime warranty covers defects in materials and workmanship.
Q: Is the ACSR35L suitable for outdoor installation?
A: Yes. IP67 rating and epoxy potting make it suitable for direct rain, dust, and weather-exposed mounting on metal door frames, mullions, and gate posts. Operating temperature range −40°F to 149°F supports cold and warm climates.
Q: What power supply do I need for the ACSR35L?
A: 8–14 VDC input at 195 mA peak capacity. A standard 12 VDC access control power supply rated for at least 195 mA per reader will suffice. Verify your supply's total capacity if deploying multiple readers on the same power rail.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco Technologies ACSR35L is a dual-mode reader that solves a real integration headache: supporting both physical credentials and smartphone-based mobile access in a single weatherproof device. The 15-foot BLE read range is the critical differentiator here—it means authenticated users can present their credentials before physically approaching the door, reducing contact friction and bottlenecks at high-traffic entry points. The IP67 epoxy-potted construction is not marketing theater; it genuinely handles outdoor weather without thermal drift or intermittent connectivity issues that plague cheaper potted alternatives.
Technical Highlights:
- Dual-frequency (13.56 MHz + 2.4 GHz BLE): One reader eliminates the need to deploy separate smartcard and mobile credential infrastructure. The 15-foot BLE range means pre-authentication before physical contact; this is meaningful in high-throughput corridors where every second counts.
- 32 integrated card formats (MIFARE, DESFire, FIPS 201 PIV, TWIC, CAC): You don't need custom firmware to support credential migration or multi-tenant deployments. Card format switching is often a hidden cost in access control projects; native format support cuts integration time by weeks.
- Wiegand (26–64 bit) + OSDP dual output: Legacy Wiegand panels will work day one. Modern OSDP deployments get bidirectional encryption and reader health telemetry without replacing the control panel. This flexibility matters when you're retrofitting aging infrastructure.
- 195 mA peak power draw: This is low enough that a single 12 VDC access control supply can handle 4–5 readers on one power rail, reducing cabinet clutter and cost. Typical quiescent draw is 40 mA—essentially dormant unless actively authenticating.
Deployment Considerations:
- BLE range is 15 feet in ideal RF conditions: Metal doors, steel frames, and dense RF environments (adjacent WiFi, cellular, or microwave) will reduce effective range to 8–12 feet. Test your specific environment before final installation.
- Cabling matters: 24 AWG minimum with foil shield. Under-spec'd cable or unshielded runs will cause intermittent BLE dropout, especially in high-EMI electrical rooms. Budget time for proper cable runs and conduit separation from power lines.
- FIPS 201 PIV and CAC support is verified: If you're deploying this in federal or DoD facilities, the NDAA Section 889 certification means procurement and compliance are pre-qualified. No surprises late in the project.
The ACSR35L is the right choice for outdoor or weather-exposed multi-credential deployments where you need both card and mobile access in one reader. It's particularly strong in government and defense environments where NDAA compliance and PIV/CAC support are table stakes. Deploy this when your access control strategy includes smartphone credentials and your site can support 12 VDC powered readers on existing control panels.
