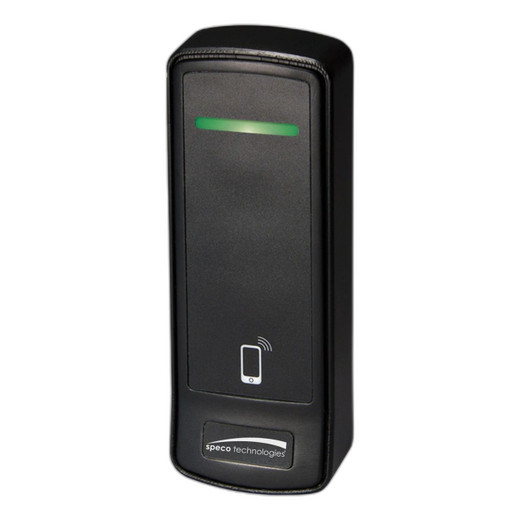

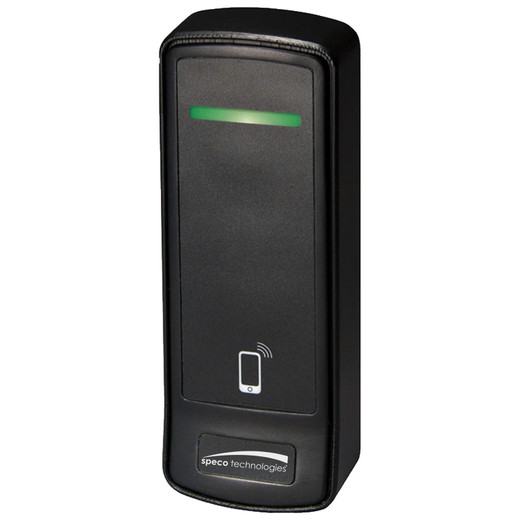

Speco Technologies APCR35L Contactless Proximity Reader with Bluetooth

Speco Technologies APCR35L Contactless Proximity Reader with Bluetooth

Overview

The APCR35L is a long-range contactless proximity reader engineered for hybrid access control environments where legacy card credentials and modern smartphone-based access must coexist. This reader bridges two authentication worlds: physical proximity cards at up to 4 inches and Bluetooth Low Energy (BLE) mobile credentials at up to 15 feet — a significant reach advantage when deploying BYOD (bring your own device) access without replacing existing card infrastructure. The dual read range means you can retire contact-based systems (which wear out) while preserving your installed card stock, reducing migration friction in larger deployments.

Key Features

• Dual-Credential Architecture: Reads 125 kHz proximity cards up to 4 inches; BLE smartphone credentials reach 15 feet. This eliminates the false choice between legacy cards and mobile access — both work simultaneously, so facility managers can phase in smartphone access without forcing users off cards.
• Proximity Protocol Support: Compatible with Pyramid, HID 125 kHz, and AWID card stocks. Supports both sector and card serial number (CSN) reads, preserving your existing credential database without recoding.
• Wiegand 26-Bit Output: Direct integration with standard access control panels and access control systems — no gateway hardware required. This reduces BOM cost and simplifies commissioning on retrofit projects.
• IP67 Sealed Design with Epoxy Potting: Complete protection against dust and temporary water immersion up to 1 meter for 30 minutes. Tamper-resistant potted electronics mean exterior mounting on loading docks, outdoor entry frames, and high-moisture areas won't require constant maintenance. Operates reliably from −35°C to +66°C (−31°F to 150°F), handling both cold-climate warehouses and sun-exposed door frames without thermal drift.
• Flexible Mounting: Mullion mount dimensions 1.7″ W × 4.7″ H × 1.2″ D; switch plate configuration 3″ W × 5.1″ H × 1.2″ D. Integrates into single-gang wall boxes, metal door/window frames, and flat surfaces — no custom brackets needed for most installations.
• Low Power Profile: Draws 60 mA typical, 90 mA peak at 12 VDC; accepts +8 to −14 VDC input. This power flexibility simplifies wiring on legacy systems where voltage regulation may drift, and the low consumption won't strain power budgets on larger multi-reader installations.
• User Feedback: Five-state LED indicator (blue, red, green, amber, off) plus integrated beeper provide immediate confirmation without adding external signage — critical for high-traffic areas where users need instant access confirmation.
• Mobile Access Integration: BLE credentials provision through Conekt Mobile Access Credentials platform, enabling centralized management of both card and smartphone credentials from a single console. No separate mobile app infrastructure required.
• NDAA Section 889 Part B Compliance: Meets federal procurement security guidelines for critical infrastructure and government applications — essential for integrators supporting federal clients or state/local government contracts.
• Lifetime Warranty: Manufacturer-backed coverage for hardware defects and premature failure, reducing total cost of ownership over facility lifecycle deployments.

Integration & Deployment Considerations

The APCR35L integrates via standard Wiegand output into most conventional access control panels and legacy systems without firmware updates. Electronics comply with UL Standard 294, FCC, ICC, and CE certifications, meeting international procurement standards. Cabling requires 24 AWG minimum multiconductor stranded wire with overall foil shield to maintain signal integrity on extended runs — a detail often overlooked in retrofit designs but essential for reliable reads in noisy electrical environments (loading docks, warehouses near heavy machinery).

Deployment note: the 15-foot BLE range assumes unobstructed line-of-sight and clear signal propagation. Metal door frames or reinforced walls may reduce effective range by 20–30%. Test on-site before final placement to avoid read failures during peak traffic periods.

Frequently Asked Questions

Q: Does the APCR35L require a separate mobile app or backend server?

A: No. The reader integrates with the Conekt Mobile Access Credentials platform, which handles centralized credential provisioning and revocation. Your access control panel manages authentication logic — the reader is the edge device only.

Q: Can I use the APCR35L with my existing HID or Pyramid card stock?

A: Yes. The reader supports HID 125 kHz, AWID, and Pyramid proximity protocols at both sector and CSN levels, preserving your installed card base. No recoding required.

Q: Is the APCR35L NDAA Section 889 compliant for federal procurement?

A: Yes. The APCR35L meets NDAA Section 889 Part B requirements, making it eligible for federal, state, and local government contracts where supply-chain compliance is mandated.

Q: What happens if the Bluetooth module fails — can cards still work?

A: The reader operates independently for proximity card reads (125 kHz); BLE is additive. A BLE module failure does not disable card authentication, ensuring fallback access during mobile credential system downtime.

Q: What cabling do I need for outdoor runs?

A: Minimum 24 AWG multiconductor stranded wire with overall foil shield. Shielding prevents signal degradation in electrically noisy environments (loading docks, motor control areas) and is non-negotiable for reliable reads over distances beyond 50 feet.

Q: Does the reader work in cold warehouse environments?

A: Yes. Operating range −35°C to +66°C (−31°F to 150°F) covers most cold-storage and exterior climates. IP67 sealing prevents condensation ingress during thermal cycling, extending operational life in freeze-thaw cycles.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

From a retrofit and phased-migration perspective, the APCR35L addresses a critical constraint in access control modernization: the need to preserve legacy card infrastructure while introducing smartphone-based credentials. Most readers force a hard cutover — you pick cards or mobile, not both. The APCR35L eliminates that binary choice. You keep your HID or Pyramid cards running while selective users (executives, remote staff, contractors) transition to BLE on a per-user basis. That flexibility alone saves 6–12 months of facility-wide credential recoding on large deployments.

Technical Highlights:

• Dual Read-Range Performance (4 inches / 15 feet): The 15-foot BLE range means users can authenticate from several feet away in doorway congestion, eliminating the "tap the reader" friction point that exists with contact-based or short-range RF cards. In high-traffic areas (warehouse receiving, distribution center loading dock), this reduces access bottlenecks and improves throughput by allowing read-ahead before users reach the door frame.
• IP67 + Epoxy Potting: IP67 (1 meter, 30 minutes) handles splash-back from dock hoses and bay wash-down, but outdoor mounting in direct rain or open-air gate applications requires careful placement — a ceiling overhang or weather hood is not just nice-to-have, it extends effective service life by eliminating thermal cycling stress on the potted seal.
• Low Voltage Tolerance (±8 to −14 VDC): The wide input range accommodates legacy 24 VDC power supplies with voltage sag and aging regulators. On retrofit projects where 18 VDC is the practical norm due to long wire runs, the APCR35L still delivers full performance — a spec detail that prevents field callbacks and simplifies commissioning without power supply replacement.
• Wiegand Direct Output: No gateway, no IP networking required. The reader outputs raw 26-bit Wiegand to your existing panel — a massive advantage on air-gapped facilities or sites where IT won't provision network access for building systems. This also means zero IP-layer security exposure for the reader itself.

Deployment Considerations:

• BLE range is not guaranteed through metal door frames or reinforced wall — test on-site before committing placement. A 30% reduction in range in high-RF-noise environments (loading docks near forklifts, cellular boosters) is not unusual.
• Credential provisioning relies on Conekt platform; if you're not already using Conekt for other mobile access, you'll incur setup overhead (user import, credential lifecycle policies). Factor that into project planning.
• The reader outputs Wiegand only — if your panel is IP-based and expects ONVIF, you'll need a separate edge controller or gateway to translate, adding cost and complexity.

Position the APCR35L in scenarios where you must preserve card stock, support selective mobile migration, and operate in harsh outdoor or high-moisture environments without complex IP networking. Hybrid card-plus-mobile deployments at distribution centers, secured loading docks, and large manufacturing facilities with staged access modernization are the sweet spot.
