Speco Technologies AP300HA IP67 Mullion Proximity Reader
Overview

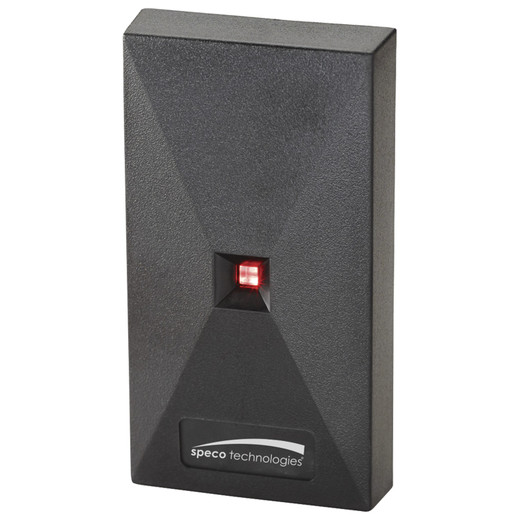

The Speco Technologies AP300HA is a compact, IP67-rated contactless proximity reader engineered for mullion mounting on metal and standard door frames, windows, and flat surfaces. Built for security integrators and access control installers, the AP300HA delivers reliable 125 kHz RFID credential recognition with native Wiegand protocol output, enabling direct integration into existing access control systems without protocol translation middleware. Its weather-resistant epoxy potting, low power draw, and flexible voltage input make it equally viable for interior access points and exterior vestibules across diverse climates. At just 1.7" W × 3.2" H × 0.7" D and weighing 3 oz (85g), the AP300HA simplifies installation without requiring reinforced mounting infrastructure.
Key Features
- 125 kHz RFID Technology: Contactless proximity detection eliminates the need for physical card insertion or contact, reducing wear on credentials and allowing secure identification of cards stored in wallets, bags, or pockets without removal.
- 5-Inch Detection Range (126 mm): Extends credential recognition distance beyond pocket depth, reducing user frustration at busy access points and supporting touchless workflows in high-traffic or high-hygiene environments.
- Wiegand Protocol Output (ABA Track II Compatible): Direct integration with standard access control panels and door controllers without additional protocol converters saves engineering effort and reduces wiring complexity on retrofit and new builds alike.
- IP67 Rating: Full dust and water ingress protection qualifies the AP300HA for exterior mullion mounting, unconditioned utility rooms, and high-humidity environments—meaning no separate weatherproof enclosure is required, reducing installation footprint.
- Epoxy Potted Electronics: Tamper-resistant potting seals the circuit board against moisture, corrosion, and physical tampering, extending service life in salt-spray, freeze-thaw, and coastal environments where standard readers would fail within 2–3 years.
- Four-State LED Indicator (Red/Green/Amber/Off): Visual feedback for successful reads, tamper events, and system faults allows users and integrators to diagnose issues at a glance without requiring software access.
- Integrated Audio Feedback: Beeper confirms successful credential recognition, reducing confusion at multitenant or high-volume access points where users may not see or understand LED states.
- 30 mA Typical / 195 mA Peak at 12V DC: Low power consumption means the AP300HA can operate on a single 12 or 24V access control system power supply without straining infrastructure or requiring dedicated circuit conditioning.
- +5 to -16 VDC Input (Flexible Voltage): Accepts standard 12V and 24V access control system supplies without voltage regulators, accommodating legacy and modern panel designs from different vendors.
- Included Black and Ivory Snap-On Covers: Aesthetic customization options allow the reader to match stainless-steel, anodized, or painted door hardware without field repainting or bracket modifications.
Integration and Compatibility
The AP300HA supports HID 125-kHz and AWID 125-kHz proximity card formats, ensuring your existing card stock and key fob inventory remain in service without replacement. ONVIF compliance facilitates integration into multi-vendor security ecosystems where video management and access control convergence is required. Requires 24 AWG minimum, multiconductor stranded conductors with overall foil shield to maintain read-range reliability and reduce electromagnetic interference in electrically noisy environments (e.g., near power conduits, motor controllers, or RF interference sources). Integrators should spec twisted-pair shielded cabling (typical 22–24 AWG) for runs exceeding 50 feet or in industrial settings with heavy RF emissions.
Environmental and Operational Specifications
Operating temperature range of -40°F to 149°F (-40°C to 65°C) qualifies the AP300HA for unheated utility rooms, exterior vestibules, and climate-controlled environments without requiring thermal management or de-rating. ETL listing to UL-294 standards for access control system units confirms third-party validation of electrical safety and performance under operational extremes. NDAA Section 889 Part B compliance confirms the device meets federal procurement restrictions for sensitive government and defense applications where supply-chain provenance is a regulatory requirement. Lifetime warranty coverage provides long-term asset protection for integrators and end-users, reducing total cost of ownership on installations where reader replacement labor exceeds hardware cost.
Frequently Asked Questions
Q: Is the AP300HA NDAA Section 889 compliant?
A: Yes. The AP300HA carries NDAA Section 889 Part B compliance, meeting federal procurement requirements for systems deployed in sensitive government and defense applications.
Q: What warranty does the AP300HA come with?
A: Lifetime warranty coverage is provided, offering long-term asset protection for integrators and end-users.
Q: Can the AP300HA be used outdoors?
A: Yes. The IP67 rating and epoxy potted electronics make it suitable for exterior mullion mounting, unconditioned utility rooms, and high-moisture environments without requiring a separate weatherproof enclosure.
Q: What credential formats does the AP300HA support?
A: The reader supports HID 125-kHz and AWID 125-kHz proximity card formats, enabling interoperability with existing card stock and key fob inventories.
Q: What power supply voltage does the AP300HA require?
A: The AP300HA accepts +5 to -16 VDC, accommodating standard 12V and 24V access control system configurations without voltage regulators or converters.
Q: Does the AP300HA work with standard access control panels?
A: Yes. Native Wiegand protocol output connects directly to standard access control panels, badge readers, and door controllers without middleware or protocol converters.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The AP300HA is a workhorse mullion reader for integrators who need IP67 durability without reinventing the access control wheel. Its strength is simplicity: 125 kHz proximity, native Wiegand output, and no middleware dependencies mean you're installing a direct drop-in to existing panels. The epoxy potting and -40 to 65°C operating range tell you this reader was engineered for real-world abuse—salt spray, freeze-thaw cycling, unheated loading docks, and exterior vestibules where standard readers oxidize and fail within a few seasons.
Technical Highlights:
- IP67 + Epoxy Potting: Full dust and water ingress protection combined with sealed electronics means no separate weatherproof enclosure is required—fewer components to stock, fewer integration points to debug, and lower total installed cost on outdoor retrofits.
- 5-Inch Read Range: 126 mm detection distance is sufficient for wallet-carry scenarios and touchless workflows, reducing user friction at multitenant or high-traffic access points where users expect card-in-pocket operation.
- 30 mA Typical / 195 mA Peak: Draws minimal current from a 12V or 24V access control supply—no dedicated power conditioning or circuit upgrade required on retrofit installations where panel power budgets are already tight.
- NDAA Section 889 Compliance: Lifetime warranty + federal procurement compliance unlock government and defense deployments where supply-chain provenance is non-negotiable; competitive advantage on sensitive bids.
Deployment Considerations:
- Mullion mounting is the primary use case—don't force this into flush-mount or recessed applications; the snap-on cover design assumes a raised surface. Verify door frame geometry (metal vs. wood) before quoting; some installations require adhesive-backed backing plates.
- Flexible voltage input (5 to -16 VDC) accommodates legacy and modern panels, but confirm your panel's Wiegand output voltage and pull-up resistor configuration—some older panels use non-standard rail voltages that may affect signal integrity over long cable runs.
- 24 AWG minimum shielded cable is mandatory; longer runs (50+ feet) in noisy RF environments may require twisted-pair shield with grounding at the panel end only to avoid ground loops and signal degradation.
Position the AP300HA for exterior and high-moisture environments where durability and long service intervals outweigh form-factor flexibility. If you need recessed, surface-mount, or low-profile variants, evaluate other Speco Technologies access control readers in the same family. For RFID-intensive deployments (badge encoding, real-time inventory), pair this with a compatible Wiegand aggregator or a mid-range controller that supports 125 kHz badge programming.
