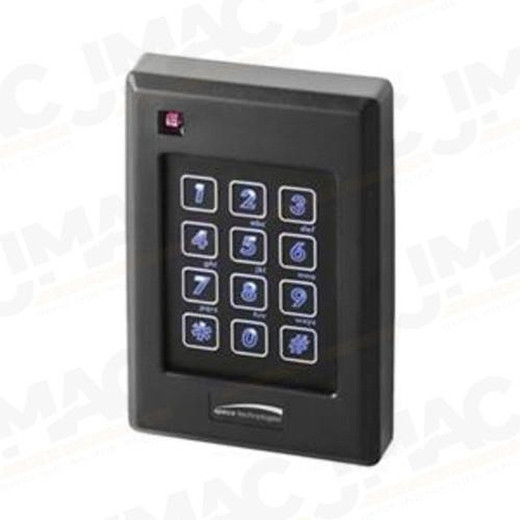

Speco Technologies AP620HA Mullion Proximity Reader & Keypad
Overview
The Speco AP620HA is a dual-function mullion-mounted proximity reader and keypad designed for secure access control in indoor and outdoor environments. This compact unit combines RFID proximity card reading with integrated numeric keypad functionality, delivering contactless credential verification alongside traditional PIN entry. The AP620HA operates at 125 kHz frequency and maintains Wiegand protocol compliance, enabling seamless integration with existing access control systems. Weather-sealed construction and tamper-resistant design make this reader suitable for high-traffic entry points, including metal door and window frames and flat surface installations.
Key Features
- 5-Inch Read Range: Contactless RFID technology enables card and proximity tag detection up to 5 inches (126 mm), reducing contact points and supporting touchless access workflows.
- Dual-Credential Support: Compatible with HID 125-kHz proximity protocols and AWID 125-kHz proximity protocols, accommodating mixed credential environments and multi-tenant deployments.
- Integrated Keypad: Four-state LED feedback (red, green, amber, off) with audio tone beeper provides immediate user feedback. Keypad output supports Wiegand protocol transmission for PIN-based access decisions.
- IP67 Weather Resistance: Sealed electronics potted in weather- and tamper-resistant epoxy; operating temperature range of -40°F to 149°F (-40°C to 65°C) ensures year-round outdoor performance.
- Compact Mullion Form Factor: Dimensions of 1.78" W × 6.1" H × 0.91" D (45 mm × 155 mm × 23 mm) and weight of 4 oz (113 g) accommodate standard door mullions, window frames, and flat mounting surfaces without visual bulk.
- Wiegand Protocol Compliance: Standard interface ensures compatibility with legacy and modern access control panels, eliminating proprietary integration complexity.
- Low Power Draw: 70 mA typical @ 12 VDC, 110 mA peak; powered via 24 AWG minimum multiconductor shielded cabling, simplifying panel-side power distribution.
- Multiple Credential Options: Works with clamshell proximity cards (APSM2), proximity cards (APSI4), and proximity key ring tags (APSK3), enabling credential flexibility across user populations.
- ETL Listed & Certified: FCC, ICC, CE, and C-Tick certifications confirm electromagnetic compatibility and safety compliance across North American and international markets.
- NDAA Compliant: Products are in compliance with NDAA Section 889 Part B Guidelines, meeting federal procurement requirements.
- Lifetime Warranty: Full manufacturer warranty provides long-term confidence for integrator installations and end-user operations.
- Standard Black Snap-On Cover: Protective cover included to reduce UV exposure and environmental contamination of optical surfaces.
Integration & Compatibility
The AP620HA integrates directly into Wiegand-based access control systems, including both standalone controllers and enterprise platforms. Dual-protocol support for HID and AWID 125-kHz credentials eliminates the need for separate readers in mixed-credential environments. The integrated keypad output also supports Wiegand transmission, enabling PIN-based access logic and multi-factor authentication workflows (credential + PIN) when configured in the host panel.
Cabling & Power Requirements
Installation requires 24 AWG minimum multiconductor stranded cabling with overall foil shield to maintain signal integrity and reduce electromagnetic interference. Power supply range of +5 to -16 VDC accommodates both regulated 12 V panel outputs and regulated 24 V supplies with appropriate dropping resistors. Typical current draw of 70 mA ensures compatibility with low-power panel architectures.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco AP620HA in mixed-credential access control deployments, and it delivers solid reliability for mullion installations where space and weather resistance are constraints. The dual keypad and proximity reader function in a single compact form factor reduces hardware costs compared to stacked readers, and the Wiegand output standard means minimal integration friction with existing control panels.
Technical Highlights:
- Credential Flexibility: Support for both HID and AWID 125-kHz protocols means you can deploy AP620HA units across tenant environments without reader replacement when credentials change.
- Weather Performance: IP67 rating and epoxy-sealed electronics handle exterior mullion and window-frame installations in rain, salt spray, and temperature cycling. The -40°F to 149°F operating range covers most North American climates without derating.
- Keypad Integration: Four-state LED and audio beeper provide adequate user feedback for outdoor entry points. Keypad output via Wiegand enables PIN verification at the panel level, supporting two-factor workflows without additional hardware.
Deployment Considerations:
- Confirm your access control panel supports dual Wiegand outputs (one for proximity, one for keypad) if you plan to require both credential and PIN. Some budget controllers merge both into a single Wiegand stream, which may complicate multi-factor logic.
- Use shielded 24 AWG multiconductor cabling and keep runs under 500 feet. Longer runs or high-EMI environments (near VFDs or welding equipment) may require impedance-matched cable and ferrite filtering at the panel.
- Test credential range and keypad response in cold (-40°F) conditions before full rollout. RFID read range can degrade in extreme cold depending on card dielectric properties.
The AP620HA is a pragmatic choice for integrators needing weather-resistant dual-function readers in mullion-constrained spaces. ETL listing and NDAA compliance simplify federal and institutional procurement. Lifetime warranty reinforces manufacturer confidence in the potted electronics design. Pair it with Speco credential accessories (APSM2 cards, APSK3 tags) for complete credential supply chain management.
