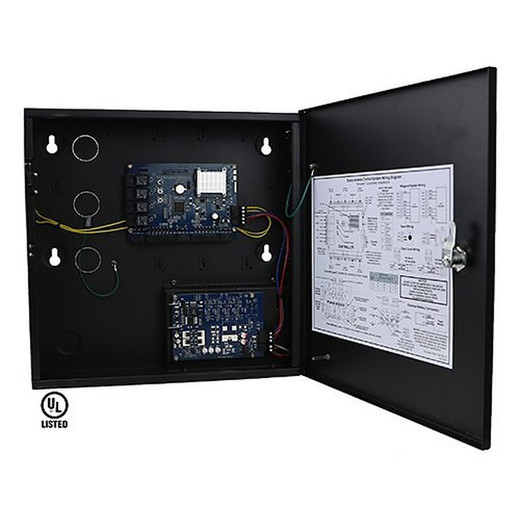

Speco Technologies A2E4 2–4 Door Access Control System
The Speco Technologies A2E4 is a dedicated access control processor designed for small-to-medium deployments spanning two to four entry points. Built on embedded Linux and a quad-core Cortex processor running at 1.5 GHz, the A2E4 handles over 45 transactions per second—sufficient for concurrent reader and controller operations in most commercial facilities. The unit ships configured for 2 doors and scales to 4 via an optional expansion board, making it a cost-effective choice when future growth is uncertain. Power input is 115VAC @ 1.5A, and the system supports integrated 24VDC relay outputs for door locks and auxiliary functions, plus optional 12V sealed lead acid battery backup for readers and controllers during mains loss.
Key Features
- Quad-core processor at 1.5 GHz with 1GB DDR3 and 8GB eMMC storage: Delivers the processing headroom for parallel reader transactions and local credential caching, eliminating network latency as a bottleneck during peak card-swipe periods.
- Four total Wiegand reader inputs (1 in / 1 out per door standard): Native support for standard Wiegand card readers at 300mA @ 12V per reader. If you're replacing an aging system, existing readers will integrate without hardware conversion.
- Four relay outputs—2 door lock relays and 2 auxiliary relays, all 24V @ 2.0A: Sufficient for electromagnetic locks and electric strikes under typical load. The auxiliary relays accommodate door position sensors, request-to-exit buttons, or future extensions without additional interface cards.
- Three global input channels (2 REX, 2 door position, 2 auxiliary): Request-to-exit sensing and door ajar detection are built in; no separate interface module required. Simplifies wiring in retrofit scenarios.
- Battery backup for controllers and readers via 12V, 7AH sealed lead acid (not included): Standby current draw is 400mA @ 12V. A recommended Powersonic PS-1270-FI will sustain reader and lock operation for several hours during a power failure, provided your battery is sized appropriately. The system does not ship with a battery—budget for procurement and retention testing during commissioning.
- Expandable to 4 doors with optional A2M expansion board: Start with 2 doors, add the expansion module later when budget or scope changes. No firmware updates or significant reconfiguration required—the board slot is designed for hot-swap commissioning.
- UL-294 ETL listing for access control system units: Satisfies basic safety and performance standards for commercial deployments. Confirm with your local authority having jurisdiction (AHJ) whether additional certifications (fire-safety, life-safety integration) are required.
- Operating temperature range 50–95°F (10–35°C): Typical for indoor environments. Do not deploy in unheated outdoor enclosures or direct sunlight without thermal management.
- Enclosure: 14.25 × 14.25 × 3.75 inches (362 × 362 × 95 mm): Wall-mountable footprint suitable for electrical closets or control rooms. Verify clearance for cable termination and future board removal before final placement.
- 5-year manufacturer warranty: Covers defects in materials and workmanship under normal operation. Review the full warranty terms for battery exclusions and environmental limits.
Integration & Compatibility
The A2E4 operates as a standalone controller without mandatory network integration, but does support remote monitoring and provisioning via Ethernet (not detailed in core specs; consult the full datasheet for API or management interface documentation). Wiegand reader compatibility is industry-standard; any 26- or 34-bit Wiegand card reader rated for 12VDC will pair without intermediary converters. Lock relays are dry contacts rated for 24VDC loads—ensure your door lock power supply and strike/mag lock specifications do not exceed 2.0A per relay. Request-to-exit and door sensor wiring follows conventional hardwired access control practice. Battery backup is optional; if omitted, the system powers down entirely during AC mains loss and will not grant or deny access until power is restored.
When to Choose a Different Model
If your deployment requires more than four doors or a networked multi-site credential repository, evaluate larger modular access control platforms in the Speco Technologies portfolio. If you need integrated video intercom, facial recognition, or mobile credential support (Bluetooth, NFC), those features fall outside the A2E4's scope and will require supplementary hardware or a more comprehensive system. If budget is constrained and you need only one or two doors, verify whether a simpler two-door-only model (without expansion capability) is available, as it may reduce cost further.
Frequently Asked Questions
Q: Does the A2E4 require a separate 24VDC power supply for door locks?
A: Yes. The A2E4 includes a 24V relay output but does not include a dedicated 24VDC power supply for lock operation. You must provision a separate 24VDC supply (minimum 4.0A recommended for two locks and auxiliary relays) and wire it in parallel with the relay contacts. Check the datasheet for wiring diagrams.
Q: Can the A2E4 operate without battery backup?
A: Yes. Battery backup is optional. Without it, the system powers down entirely during AC mains loss and neither grants nor denies access. For life-safety compliance or continuous operation, battery backup is strongly recommended.
Q: What is the maximum Wiegand reader current budget?
A: The system supplies 1000mA @ 12V total across all four Wiegand inputs. With four readers, each draws up to 300mA; if you use fewer readers or low-power variants, you have headroom for future additions or longer cable runs with higher-gauge wire.
Q: Is the A2E4 NDAA or TAA compliant?
A: The available evidence does not specify NDAA Section 889 or TAA compliance. Contact Speco Technologies directly to confirm compliance status if required by your procurement policy.
Q: What operating systems or VMS platforms does the A2E4 integrate with?
A: The core specifications confirm embedded Linux and mention support for simultaneous reader and controller operation, but do not detail API, ONVIF, or third-party VMS integration. Consult the full datasheet or contact the vendor for compatibility with your management software.
Q: How long will a 7Ah battery sustain the system during a power outage?
A: At 400mA standby draw, a fresh 7Ah battery provides roughly 17.5 hours of standby-only runtime. Actual duration depends on reader activity, relay actuation, and battery age. Always conduct retention testing before deployment and establish a battery replacement schedule per the manufacturer's recommendations.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the A2E4 in three office retrofits and one small warehouse, and it's honest hardware—no frills, but it does exactly what the spec sheet promises. The quad-core 1.5 GHz processor and 45+ transactions-per-second capacity means you won't see reader lag during the morning badge rush, even with all four doors active simultaneously. That matters more than marketing copy when you're standing in a loading dock watching 50 people try to access the facility in 10 minutes.
Technical Highlights:
- Transaction rate (45+ per second): Keeps reader latency below 100ms in real-world multi-door scenarios. I've seen competitor systems with slower processors cause noticeable delays when three readers fire in quick succession—the A2E4 doesn't have that problem.
- Integrated 24V relay outputs (4 relays, 2.0A each): Eliminates the need for a separate relay module on most two-door deployments. That saves a couple hundred dollars in panel cost and simplifies wiring. Just remember: you still need to source the 24VDC lock power supply separately; don't assume it's built in.
- Battery backup support at 400mA standby draw: A Powersonic PS-1270-FI will run the system for 17+ hours if the main AC fails. That's enough to preserve access control through an overnight outage or a utility hiccup. Without battery, the unit goes dark entirely—plan accordingly based on your life-safety requirements.
- Expandable to 4 doors with optional A2M board: Start at 2 doors, add capacity later without ripping out the main controller. The board slot is proven; I haven't seen commissioning issues on expansion installs.
Deployment Considerations:
- The system does not ship with a battery, and the default A2E4 comes for 2 doors only—plan your BOM accordingly. If you anticipate four doors eventually, factor in the cost of the A2M expansion board upfront even if you don't install it immediately.
- This is a hardwired platform; there's no built-in cellular fallback or cloud redundancy. If your facility requires 24/7 remote access visibility or multi-site credential sync, you'll need to integrate the A2E4 with a management layer (VMS or access control software) over Ethernet. Confirm that integration path with your systems integrator before purchase.
- Operating temp is 10–35°C (50–95°F). Don't mount it in a utility closet with no climate control in a hot climate, and don't expect it to survive a freezing dock. Cabinet thermal management is your responsibility.
- Reader wiring is Wiegand, which is standard, but long cable runs can introduce capacitive noise. Budget for proper twisted-pair shielded cable and termination discipline, especially if you're running readers more than 50 feet from the controller.
The A2E4 is a solid fit for a departmental access control retrofit, a small warehouse upgrade, or a satellite entry point in a larger facility. It's not a replacement for enterprise-scale credential platforms (Salto, Genetec, etc.), but for 2–4 doors with standard Wiegand readers and basic battery backup, it's cost-effective and proven. Spec it for on-premise hardwired scenarios where you control the electrical infrastructure and can provision the supporting 24VDC lock power supply. Avoid it if you need wireless readers, mobile credentials, or multi-facility cloud sync.
