Middle Atlantic SNE 24W 660CFM TOP W/fc - SNE24-6FT-FC-K

Middle Atlantic SNE24-6FT-FC-K 660 CFM Rack Fan Top with Fan Speed Controller

Overview

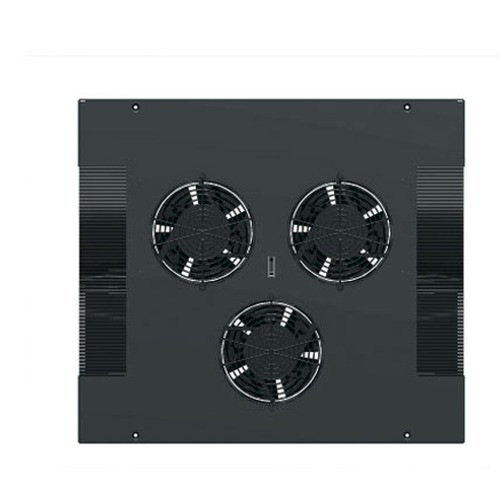

The Middle Atlantic SNE24-6FT-FC-K is a rack-top fan assembly delivering 660 CFM of airflow for 24-inch-wide SNE enclosures — a direct fit when thermal load in your rack demands active exhaust and passive convection no longer cuts it. Designed exclusively for the Middle Atlantic SNE rack line, this unit ships pre-assembled with three fans, fan guards, and an integrated proportional speed controller, so installation is a matter of mounting rather than wiring a fan system from scratch. If your security or AV rack is running NVRs, managed switches, or dense power distribution that generates sustained heat, the SNE24-6FT-FC-K addresses that load without requiring a separate controller module or aftermarket fan kit.

At 2.2 inches tall, the assembly sits on top of the rack without consuming internal rack units — a meaningful distinction when every U matters in a fully loaded rack cooling deployment. The 22.2 × 19.8-inch footprint is engineered to the SNE24 chassis dimensions, so airflow paths align with the rack's internal layout rather than spilling around the edges.

Key Features

• 660 CFM Airflow Capacity: Three fans working in concert move 660 cubic feet per minute out of the rack. That's enough to handle dense switch, NVR, and power supply loads without thermal throttling — if you've had equipment log high-temp events or shut down during summer peaks, this is the spec that resolves it.
• Proportional Speed Controller Included: The integrated fan speed controller adjusts fan RPM in response to actual rack temperature rather than running at full blast continuously. That means lower noise during light loads, reduced energy consumption, and longer fan bearing life — relevant in 24/7 security operations centers where constant fan noise at full speed becomes a real operational issue.
• Pre-Assembled Configuration: All three fans, guards, and the controller arrive as a single ready-to-mount assembly. No fan-by-fan installation, no sourcing guards separately. This matters when you're commissioning multiple racks on a deadline — it reduces installation time to a single mounting step rather than a sub-assembly task.
• Rack-Top Mount — Zero U Consumed: The 2.2-inch unit sits above the rack plane. Your internal rack units remain fully usable for active equipment. In a fully populated SNE24 rack, that distinction between a top-mount fan and a 1U or 2U internal fan tray is real rack capacity recovered.
• Precision Fit for SNE24 Racks: At 22.2
