Middle Atlantic SNE 24W Vent Fd/rd 45U - SNE24-LVD-45

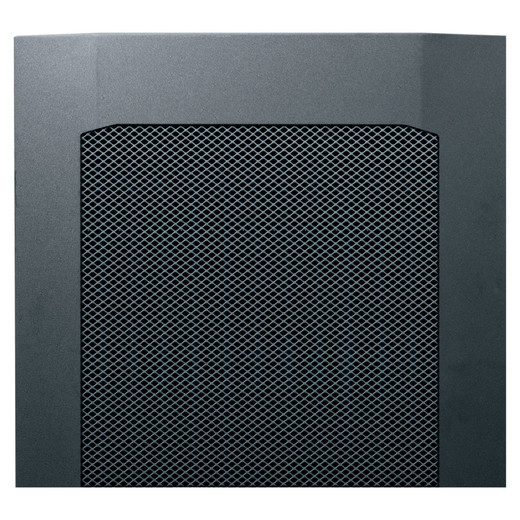

Middle Atlantic SNE24-LVD-45 45U Vented Front/Rear Rack Door

Overview

The Middle Atlantic SNE24-LVD-45 is a 45U vented door designed specifically for 24-inch-wide SNE Series rack enclosures. With 64% open area across its ventilated face, this door keeps airflow moving through densely loaded network, AV, and security equipment racks — without requiring active cooling infrastructure. It mounts as either a front or rear door on SNE24 enclosures, giving integrators flexibility when configuring equipment access and airflow paths in server rooms, IDF closets, and surveillance head-end racks.

At 23.814 inches wide and 81.326 inches tall with a shallow 2.6-inch profile, the SNE24-LVD-45 (often searched as SNE24 LVD 45) fits standard 45U rack footprints without consuming additional floor or wall clearance. A black texture powder coat finish is consistent with professional rack system aesthetics and resists wear in high-traffic equipment rooms.

Key Features

• 64% Vented Open Area: More than half the door face is open to airflow — meaningful when you're running 30+ rack units of switches, NVRs, and servers that generate sustained heat loads. This level of perforation supports passive convection and reduces reliance on supplemental cooling in moderate-density deployments.
• Front or Rear Mounting: Configurable as either the front or rear door on SNE24 Series enclosures, so you can deploy this door on whichever face of the rack needs maximum airflow — or replace just one door without purchasing a full enclosure kit.
• 45U Capacity: Sized for full-height 45U SNE24 racks, covering the entire usable rack unit span from top to bottom. No gaps, no exposed equipment openings along the door plane.
• SNE24 Series Fit: Built specifically for Middle Atlantic's SNE24 rack line — this door is not a universal fit. Verify your enclosure model before ordering. If your rack is a different width or series, a different door model is required.
• 23.814
