Middle Atlantic SNE 30W 660CFM TOP W/fc - SNE30-6FT-FC-K

Middle Atlantic SNE30-6FT-FC-K Rack Fan Top with Controller for SNE 30\" Racks

Overview

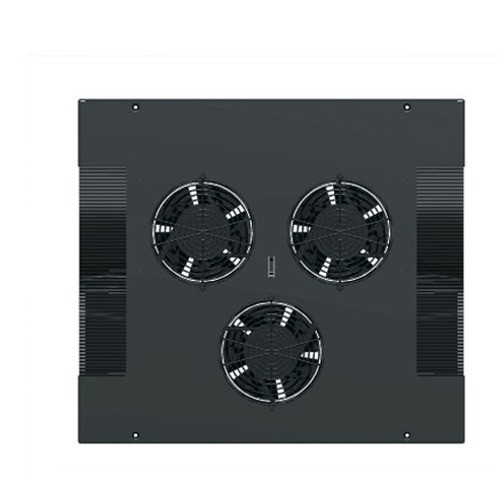

The Middle Atlantic SNE30-6FT-FC-K is a 600 CFM fan top designed specifically for the SNE 30-inch wide rack series. At 2.166 inches tall, it sits flush on top of the rack enclosure and moves enough air to keep thermally dense AV and security equipment within safe operating ranges — without requiring a separate fan controller purchase. Three built-in fans and an integrated controller ship together, so there's no guesswork about compatibility between the fan assembly and the speed regulation hardware.

If you're building out an SNE 30 series rack for an access control head-end, NVR stack, or managed switch layer in a wiring closet or security operations room, this is the purpose-matched cooling solution rather than a generic aftermarket fan tray. The SNE30-6FT-FC-K (often searched as SNE30 6FT FC K) is sized and specified to match the SNE 30 series footprint exactly.

Key Features

• 600 CFM Airflow: Three built-in fans collectively move 600 cubic feet of air per minute — enough to exhaust heat from a full rack of PoE switches, NVRs, and access control panels. In enclosed wiring closets where ambient temperatures rise quickly, this airflow rating keeps internal rack temps from hitting equipment thermal limits.
• Integrated Fan Controller: The included controller lets you regulate fan speed rather than running all three fans at full throttle constantly. Reducing fan speed when thermal load is low cuts noise output and extends fan bearing life — both relevant in occupied spaces like reception areas, server rooms adjacent to offices, or security desks.
• Three-Fan Configuration: Multiple fans provide airflow redundancy. If one fan fails, the remaining two continue moving air — giving you time to schedule maintenance rather than facing an immediate thermal emergency. Single-fan designs have no fallback.
• Purpose-Built for SNE 30 Series Racks: At 28.187 inches wide, this fan top is dimensioned to mate with Middle Atlantic's SNE 30-inch rack family. Using a matched component eliminates the fitment issues and airflow gaps that can result from third-party fan trays that don't seat properly against the rack frame.
• Low Profile at 2.166 Inches: The 2.166-inch height keeps the rack's overall footprint compact. In installations where vertical space or ceiling clearance is tight — finished equipment rooms, millwork enclosures, or low-ceiling closets — a 2U-or-under fan top preserves usable rack space for actual equipment.
• 19.75-Inch Depth: The 19.75-inch depth matches standard SNE 30 rack enclosure dimensions, ensuring full coverage across the rack interior without overhanging the rear cable management zone.

Integration and Compatibility

The SNE30-6FT-FC-K is compatible with Middle Atlantic SNE 30-inch wide rack enclosures. If your installation uses a different SNE series rack width — such as the 20-inch or 25-inch variants — this unit will not fit without modification; verify the rack width before ordering. The fan top mounts on the top panel of the SNE 30 enclosure and integrates with the rack's existing ventilation cutouts for directed airflow. Review the Middle Atlantic rack accessories catalog for additional cooling and ventilation options across the SNE lineup.

For rack infrastructure planning, the rack enclosures category covers compatible SNE series chassis options. If you're specifying a complete rack build including network switches or NVR hardware, thermal management planning starts with knowing the total wattage of installed equipment — then sizing fan capacity to maintain adequate airflow margin. A rack cooling accessories review can help identify supplemental options if a single fan top is insufficient for high-density builds.

Frequently Asked Questions

Q: Is the SNE30-6FT-FC-K compatible with SNE racks other than the 30-inch wide series?

A: No. The SNE30-6FT-FC-K is designed specifically for Middle Atlantic SNE 30-inch wide rack enclosures. Its 28.187-inch width is matched to that rack series. It will not properly fit SNE racks of different widths.

Q: Does the SNE30-6FT-FC-K include a fan speed controller, or is that sold separately?

A: The fan controller is included with the SNE30-6FT-FC-K. You do not need to purchase a separate controller — the assembly ships with three fans and the controller as a complete unit.

Q: How many fans are in the SNE30-6FT-FC-K, and what happens if one fails?

A: The SNE30-6FT-FC-K has three built-in cooling fans. If one fan fails, the remaining two continue to operate, maintaining partial airflow while you schedule a replacement — unlike single-fan designs that provide no cooling redundancy.

Q: What is the total airflow rating of the SNE30-6FT-FC-K?

A: The SNE30-6FT-FC-K delivers 600 CFM of airflow from its three-fan assembly, which is sufficient for exhaust cooling in fully populated SNE 30 racks running AV, security, and networking equipment.

Q: How much vertical space does the SNE30-6FT-FC-K add to the rack installation?

A: The SNE30-6FT-FC-K measures 2.166 inches in height, adding minimal vertical clearance requirement above the SNE 30 rack enclosure. This is important in installations with limited ceiling clearance or in finished millwork enclosures.

Jerry Tildsen

The SNE30-6FT-FC-K is one of those components that looks simple on paper but gets specified wrong constantly. At 600 CFM across three fans, it has real airflow capacity for a fully loaded SNE 30 rack — but the detail that matters most in practice is the included controller. Without speed regulation, fan tops in occupied spaces (security desks, reception head-ends, conference room AV closets) run at full RPM continuously, creating noise complaints within the first week of deployment.

Technical Highlights:

• 600 CFM Three-Fan Array: Three fans at a combined 600 CFM means each fan is contributing roughly 200 CFM — a balanced load that avoids overworking any single motor. This matters for longevity in 24/7 security rack environments where fan tops run continuously for years.
• Integrated Controller: Speed regulation ships in the box, not as an add-on. In a rack build where you're already managing cable runs, power distribution, and equipment positioning, having the controller bundled eliminates a compatibility variable and a separate procurement line item.
• 2.166-Inch Profile: At just over 2 inches tall, this fan top doesn't eat into the rack's usable vertical space. For SNE 30 builds in finished millwork or low-ceiling closets, that height constraint is often the deciding factor between this unit and a bulkier alternative.

Deployment Considerations:

• Verify your SNE rack is the 30-inch wide variant before ordering — the 28.187-inch fan top width is specific to that series, and Middle Atlantic makes SNE racks in multiple widths. A mismatched fan top leaves airflow gaps at the frame edges.
• The 19.75-inch depth covers the full SNE 30 enclosure interior, but confirm your rear cable management arrangement doesn't obstruct the fan top's exhaust path. Dense horizontal cable bundles directly above the rack can redirect airflow and reduce effective CFM.

The SNE30-6FT-FC-K is well-suited for security operations head-end builds where an SNE 30 rack houses NVRs, PoE switches, and access control panels in a partially occupied space — the controller lets the integrator dial back fan speed during business hours without sacrificing thermal protection when the equipment load peaks.
