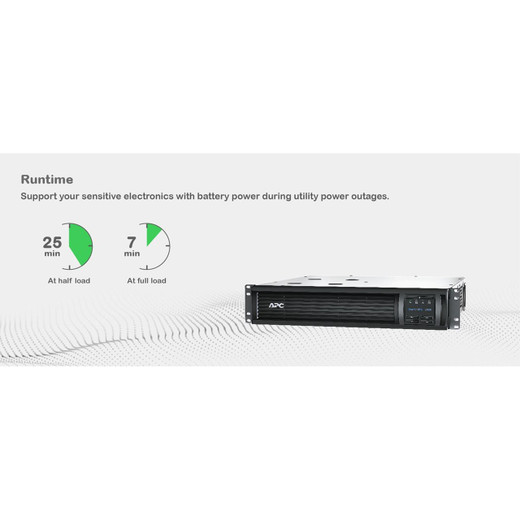

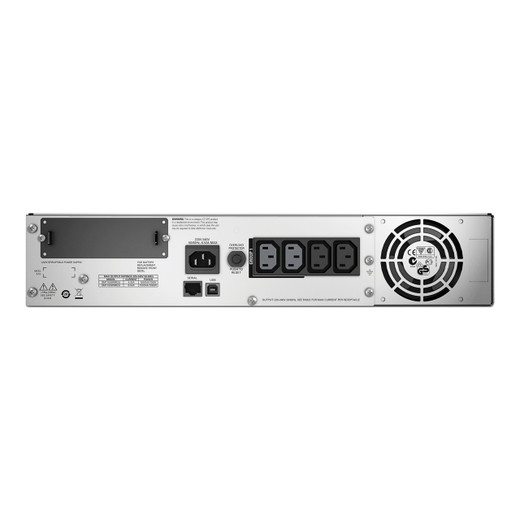

APC by Schneider Electric SMT1500RMI2U - UPS - 2U - Line-interactive - 230V - 1000WATT - 1500VA

APC by Schneider Electric SMT1500RMI2U 1500VA 2U Rack Line-Interactive UPS

Overview

The APC by Schneider Electric SMT1500RMI2U is a 1500VA / 1000W line-interactive UPS in a 2U rackmount chassis, designed to protect servers, network infrastructure, and surveillance recording systems running on 230V circuits. Line-interactive topology means the unit actively conditions voltage fluctuations — sags and surges — without switching to battery, preserving battery runtime for actual outages and extending battery life over the long term. For equipment rooms and server racks where power quality is inconsistent, that distinction matters more than raw VA capacity.

At 1000W true output power, the SMT1500RMI2U can carry a meaningful load: a mid-density network rack, a multi-drive NVR, or a cluster of access switches and edge compute nodes. The 1500VA / 1000W rating reflects a 0.67 power factor, which is typical for this class — size your load to the watt figure, not the VA, when calculating headroom.

Key Features

• 1500VA / 1000W line-interactive topology: Voltage regulation handles brownouts and overvoltages inline without battery drain — extending usable battery life in environments where utility power fluctuates regularly.
• 2U rackmount form factor (3.39 × 17 × 18 in.): Fits standard 19-inch equipment racks. The shallow 18-inch depth accommodates most two-post and four-post racks without a depth extension shelf.
• 230V input/output: Matched to European and international single-phase infrastructure — confirm your facility runs 230V before ordering; this unit is not rated for 120V North American circuits.
• Maintenance-free sealed lead-acid battery with suspended electrolyte: Leakproof construction means this UPS can be rack-mounted in any orientation without spill risk — relevant for side-mounted or non-standard rack installations. No routine electrolyte maintenance required.
• Network and server protection class: Rated for the load profiles typical of switches, routers, NVRs, and rack servers — equipment with non-linear power draws and sensitivity to momentary interruptions.

Deployment Context

The SMT1500RMI2U fits naturally into a security operations infrastructure rack — protecting the NVR, PoE switch, and access control server that must stay online during a utility event. Size your connected load below 1000W with margin for inrush current on startup. For 120V North American environments or higher wattage requirements, a different model from the APC Smart-UPS line is the correct path.

This UPS is appropriate for deployment in rackmount UPS systems supporting commercial security and IT infrastructure. Pair it with a PoE network switch and NVR for a complete protected recording stack. Consult a UPS sizing guide to match runtime requirements before specifying battery capacity.

Frequently Asked Questions

Q: Is the SMT1500RMI2U compatible with 120V North American power infrastructure?

A: No. The SMT1500RMI2U is rated for 230V circuits and is designed for European and international deployments. It is not compatible with standard 120V North American outlets.

Q: What is the actual watt output of the SMT1500RMI2U?

A: The SMT1500RMI2U delivers 1000W of true output power. When sizing your load, always calculate against the watt figure — not the 1500VA rating — to ensure adequate headroom.

Q: Can the SMT1500RMI2U be mounted in any rack orientation?

A: The sealed lead-acid battery uses suspended electrolyte construction, making it leakproof and suitable for standard rackmount installation. Always follow the manufacturer's installation guidelines for your specific rack configuration.

Q: What type of equipment is the SMT1500RMI2U designed to protect?

A: It is classified for network and server protection — switches, routers, NVRs, rack servers, and access control infrastructure that require clean, uninterrupted 230V power.

Q: Does line-interactive topology protect against brownouts as well as full outages?

A: Yes. Line-interactive UPS units regulate voltage sags and surges inline without switching to battery, providing protection against brownouts and overvoltages while preserving battery capacity for complete outages.

Eden Phillips

The SMT1500RMI2U is the unit I reach for when specifying a 230V rack protection layer for a mid-density security infrastructure stack. The line-interactive topology is the deciding factor here — it handles the voltage instability that's common in commercial facilities without cycling the battery on every sag, which is how you actually get multi-year battery service life in a working installation rather than a lab.

Technical Highlights:

• 1000W true output power: At 1500VA with a 0.67 power factor, the 1000W figure is what you plan to — leave 20% headroom for inrush and you're safely loading this unit to about 800W continuous.
• Leakproof suspended-electrolyte battery: Maintenance-free sealed construction eliminates the orientation and spill restrictions that complicate other battery chemistries in tight rack environments.
• 2U chassis (3.39 × 17 × 18 in.): The 18-inch depth fits most standard two-post relay racks without a depth adapter — a non-trivial consideration when space is already allocated.

Deployment Considerations:

• Confirm your facility is wired for 230V single-phase before ordering — this unit will not operate on North American 120V circuits, and there is no auto-ranging input on this model.
• Size your protected load to the watt rating (1000W), not the VA rating (1500VA); overloading the watt capacity reduces runtime and can trigger protective shutdown under inrush events.

Best fit: a 230V European or international equipment room running a security NVR, managed PoE switch, and access control server in a single rack — where you need voltage conditioning plus outage bridge time in two rack units without a dedicated power room.
