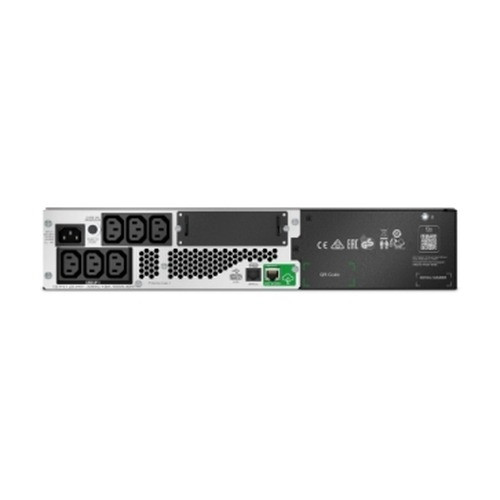

APC Smart-ups 1000VA Lithium-ion 2U 120V Smartconnect+network Card W/ 1 NO - SMTL1000RM2UCNCITE

APC by Schneider Electric SMTL1000RM2UCNCITE 1000VA Lithium-Ion 2U Rackmount UPS with SmartConnect + Network Card

Overview

The APC Smart-UPS SMTL1000RM2UCNCITE is a 1000VA / 800W lithium-ion rackmount UPS designed for server closets, network equipment rooms, and security infrastructure deployments where dependable power conditioning and runtime matter — and where battery longevity is a real operational cost. The 2U form factor keeps it rack-friendly in tight installations, and the included SmartConnect capability plus integrated network card means remote monitoring and management are available out of the box without additional license dongles or adapter cards.

This unit fits into UPS and power protection deployments alongside network switches, NVRs, access control panels, and VoIP infrastructure — anywhere a brief power interruption would cause equipment damage or lost recordings. If you're speccing APC by Schneider Electric power protection into a physical security or IT closet build, the SMTL1000RM2UCNCITE targets the mid-density single-rack equipment tier.

Key Features

• 1000VA / 800W Lithium-Ion Power Capacity: At 800W true power output, this unit can carry a fully loaded 1U server, a managed PoE switch, and a small NVR simultaneously through a typical brief outage. The lithium-ion chemistry is the meaningful differentiator here — Li-Ion batteries charge faster, last significantly longer than traditional VRLA/AGM cells, and tolerate a wider temperature range, which reduces replacement frequency and total cost of ownership in live installations.
• 120V Input and Output: Designed for standard North American 120V infrastructure. No step-up or step-down transformer needed for typical US commercial deployments — wire it inline with your existing 120V circuit and connected equipment sees a clean, regulated 120V output.
• 2U Rackmount Form Factor: Two rack units of vertical space is the right tradeoff at this power class. It fits standard 19-inch EIA racks and two-post relay racks common in telecom and security closets. At 35.9 lb (16.3 kg), plan your rack loading accordingly — bottom-of-rack placement is standard practice for units in this weight range to preserve rack stability.
• SmartConnect Cloud Monitoring: SmartConnect provides remote visibility into battery health, load percentage, and runtime estimates through APC's cloud portal — no on-site visit required to confirm UPS status. For multi-site security integrators managing distributed camera and access control infrastructure, this is operationally useful: you know about a degraded battery before it becomes an after-hours emergency.
• Integrated Network Card: The included network management card means SNMP and web-based monitoring are available immediately on first rack installation. You don't need to purchase a separate AP9630/AP9631-class accessory card or leave a slot empty — a meaningful cost and configuration simplification on a per-unit basis when deploying across multiple racks.
• 8 ft (2.4 m) Input Power Cable: The 8-foot cord gives you flexibility in rack placement relative to floor PDUs or wall receptacles — long enough to reach a rear-mounted PDU without a cord extension, which matters in deep two-post rack configurations common in security equipment rooms.
• Lithium-Ion Battery Chemistry — Reduced Maintenance Burden: Traditional UPS batteries in comparable VA classes typically require replacement every 3–5 years. Li-Ion chemistry in the Smart-UPS line is rated for a longer service life and a smaller physical footprint for equivalent energy storage. In a multi-rack deployment where battery swap logistics are a real labor cost, this is worth quantifying before comparing upfront unit prices against AGM-based alternatives in the same VA class.

Integration and Compatibility

The SMTL1000RM2UCNCITE integrates into standard 19-inch rack infrastructure and is compatible with APC's PowerChute software for local and network-based graceful shutdown of connected servers and NAS devices during extended outages. The integrated network card supports SNMP-based monitoring, making it compatible with NMS platforms that accept standard SNMP traps — including common enterprise monitoring tools used alongside network video recorders and access control head-end equipment.

For deployments pairing this UPS with PoE network switches or edge security appliances, the 1000VA / 800W capacity is sized for mid-density loads — confirm your connected equipment's aggregate wattage before commissioning. A fully loaded 24-port PoE+ switch drawing 150–200W plus an NVR at 50–80W and a firewall at 30–50W is well within this unit's continuous output capacity, leaving headroom for brief surge loads at startup.

The SmartConnect feature requires an internet-connected network port at the installation site for cloud-based monitoring to function. Local SNMP monitoring via the integrated network card operates independently of SmartConnect and does not require cloud connectivity.

Frequently Asked Questions

Q: What is the power capacity of the SMTL1000RM2UCNCITE?

A: The SMTL1000RM2UCNCITE is rated at 1000VA / 800W. This is the continuous output capacity — size your connected load to stay within 800W for reliable operation and adequate runtime.

Q: Does the SMTL1000RM2UCNCITE include a network management card, or is it purchased separately?

A: The network card is included in this SKU. That's part of what the 'NC' designation in the model number indicates — you get network management capability out of the box without purchasing a separate card.

Q: What battery type does the SMTL1000RM2UCNCITE use?

A: It uses a lithium-ion (Li-Ion) battery, not the traditional VRLA/AGM chemistry found in most comparably priced UPS units. Li-Ion offers longer service life, faster recharge, and lower weight for equivalent energy storage.

Q: How much does the SMTL1000RM2UCNCITE weigh, and what rack space does it require?

A: It weighs 35.9 lb (16.3 kg) and occupies 2U (3.39 inches) of rack height in a standard 19-inch rack. Plan rack loading with this weight positioned low in the rack for stability.

Q: What is SmartConnect, and does it require additional licensing?

A: SmartConnect is APC's cloud-based remote monitoring feature that provides battery health, load, and runtime visibility through a web portal. Based on APC's implementation, SmartConnect does not require a separate paid license for basic monitoring — it uses the integrated network card and an internet-connected port at the installation site.

Q: What input voltage does the SMTL1000RM2UCNCITE require?

A: It requires 120V AC input, standard for North American commercial and light industrial electrical circuits. It is not designed for 208V or 240V input without appropriate step-down infrastructure.

James Everett

The SMTL1000RM2UCNCITE stands out in the 1000VA rackmount class primarily because of the lithium-ion battery chemistry — at 35.9 lb for a 1000VA / 800W unit, it's meaningfully lighter than comparable AGM-based units, and the Li-Ion service life advantage reduces the battery replacement cycle that's a recurring cost in multi-site security closet deployments. If you're managing a portfolio of remote sites, that maintenance reduction compounds quickly.

Technical Highlights:

• 1000VA / 800W Output: Sufficient capacity for a mid-density security equipment stack — NVR, managed PoE switch, and access control panel — with headroom for startup surge loads. Keep aggregate connected load under 800W continuous for rated performance.
• Lithium-Ion Battery: Li-Ion chemistry charges faster and lasts longer than VRLA — directly reduces truck-roll frequency for battery replacements across a multi-site deployment. Weight at 35.9 lb (16.3 kg) is also lower than AGM equivalents at this VA class.
• Integrated Network Card + SmartConnect: Remote monitoring of battery health and load percentage is available immediately post-installation with no additional card purchase. SmartConnect cloud visibility plus local SNMP gives you two independent monitoring paths on the same unit.

Deployment Considerations:

• At 35.9 lb in a 2U form factor, mount this unit low in the rack — bottom or lower-third position — before populating the rack with lighter equipment above. Standard practice, but easy to overlook when staging equipment off-site before final rack installation.
• SmartConnect cloud monitoring requires an active internet connection at the site. In air-gapped or internet-restricted security environments, plan to rely on local SNMP via the integrated network card — SmartConnect will not function without outbound connectivity to APC's cloud infrastructure.

The SMTL1000RM2UCNCITE is a strong fit for enterprise physical security head-end closets — specifically multi-camera NVR deployments paired with managed PoE switches where the combination of remote battery monitoring and Li-Ion service life reduces operational overhead at sites that don't have on-site IT staff.
