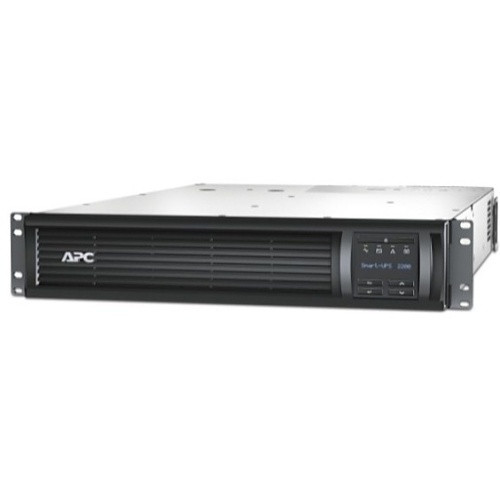

Brand:
APC by Schneider Electric
MPN:
SMT2200RM2U
Presentation:
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Main Input Voltage:
120 V AC 1 phase
Input Connection:
NEMA 5-20P
Efficiency At Full Load:
75...154 V adjustable 82...143 V
Input Frequency:
50/60 Hz +/- 3 Hz auto-sensing
Output Voltage:
120 V AC 1 phase
Rated Power In W:
1920 W
Rated Power In Va:
1920 VA
Output Connection:
6 NEMA 5-15R 2 NEMA 5-20R
Harmonic Distortion:
Less than 5%
Maximum Configurable Power In Va:
2200 VA
Maximum Configurable Power In W:
1980 W
Transfer Time:
4ms typical : 8ms maximum
UPS Topology:
Line Interactive
Waveform Type:
Sine wave
Output Frequency:
50/60 Hz +/- 3 Hz sync to mains
Replacement Battery:
RBC43
Run Time:
View Runtime Graph
Efficiency:
View Efficiency Graph
Battery Type:
Lead-Acid battery
Control Panel:
LED status display with on line : on battery : replace battery and overload indicators
Free Slot:
1
Alarm:
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Ups Connectivity:
Serial port USB port Available expansion slot
Surge Energy Rating:
530 J
Number Of Rack Unit:
2U
Cable Length:
8 ft (2.4 m)
Number Of Cables:
1
Color:
Black
Dimensions:
3.4 in (86 mm)
Weight:
93.28 lb(US) (42.31 kg)
Mounting Location:
Front
Mounting Preference:
Lower
Mounting Mode:
Rack-mounted with included kit
Two Post Mountable:
0
Provided Equipment:
CD with software Documentation CD Rack Mounting brackets Rack Mounting support rails Smart UPS signalling RS-232 cable USB cable
Number Of Power Modules:
0
Number Of Power Module Filled Slots:
0
Number Of Power Module Free Slots:
0
Range Of Product:
Smart-UPS
Product Or Component Type:
Uninterruptible power supply (UPS)
Product Certification:
CSA
Ambient Air Temperature For Storage:
5…113 °F (-15…45 °C)
Storage Altitude:
0…50000 ft (0…15240 m)
Relative Humidity:
0…95 %
Storage Relative Humidity:
0…95 %
Acoustic Level:
55 dBA
Heat Dissipation:
215 Btu/h
Operating Altitude:
0...10000 ft
Extendable Runtime:
0
Included Battery Module:
0
Empty Battery Slot:
0
Typical Recharge Time:
3 h
Rbc Quantity:
1
Battery Life:
3…5 year(s)
Battery Charging Power:
164 W rated
Unit Type Of Package 1:
PCE
Nbr. Of Units In Pkg:
1
Package 1 Height:
10.0 in (25.4 cm)
Package 1 Width:
38.6 in (98 cm)
Package 1 Length:
23.6 in (60 cm)
Package Weight(Lbs:
109.64 lb(US) (49.73 kg)
