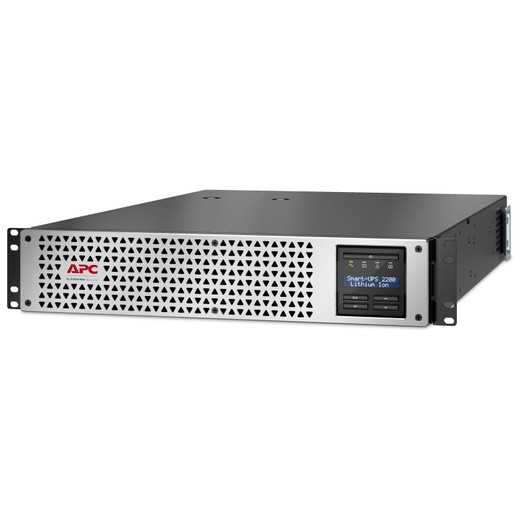

APC by Schneider Electric SMTL2200RM2UCNC 2U Rack Line-Interactive UPS 2200VA/1920W
Overview
The APC by Schneider Electric SMTL2200RM2UCNC is a 2200VA / 1920W line-interactive rack UPS in a 2U form factor, built for IT closets, security head-end rooms, and surveillance infrastructure where clean, regulated power is non-negotiable. It accepts a wide 82–144V input range without switching to battery, delivers a true sine wave output at 120V, and runs at 96% efficiency — numbers that matter when the unit is energized 24/7 and every watt of heat in a rack costs cooling dollars. If you're protecting NVRs, PoE switches, and access control servers in a single rack, this is the class of UPS that belongs in that conversation.
Key Features
- Line-Interactive Topology with True Sine Wave Output: Line-interactive designs correct browndowns and overvoltages through the AVR stage without pulling from battery — extending battery life significantly in environments with chronic utility instability. The sine wave output (not simulated/stepped approximation) is critical for active PFC power supplies common in modern NVRs and servers; a simulated sine wave can trip PFC supplies into fault or reduce their MTBF.
- 2200VA / 1920W Capacity: At a 0.87 power factor, the SMTL2200RM2UCNC delivers 1920W of real power. Size your protected load to 80% of rated wattage (roughly 1536W) for reliable runtime headroom. That comfortably covers a 24-channel NVR, a managed PoE switch, and a rack access control panel simultaneously.
- 96% Efficiency: At 96% efficiency, this unit dissipates roughly 77W of heat at full load — far less than older ferroresonant or double-conversion designs at the same capacity. In a sealed IDF closet, that differential matters for ambient temperature control and cooling costs over a multi-year deployment.
- Wide 82–144V Input Range (AVR): The automatic voltage regulation window spans 82V to 144V — a 62-volt swing — before the unit transfers to battery. Facilities with aging electrical infrastructure or shared circuits with heavy motor loads benefit directly: the UPS absorbs the sag rather than cycling battery chemistry on every dip.
- 530J Surge Energy Rating: 530 joules of surge suppression is adequate for general transient protection on 120V circuits. If the site has a history of direct lightning exposure or is in a high-lightning zone, pair this with a dedicated SPD upstream at the panel — the UPS surge stage is a last line of defense, not a primary lightning arrestor.
- 8 AC Outlets (NEMA 5-15R and 5-20R Mix): The outlet bank includes both NEMA 5-15R (standard 15A) and NEMA 5-20R (20A) receptacles, covering the full range of rack equipment power cords without adapters. Eight outlets is sufficient for most 2U–4U security head-end builds without a separate rackmount PDU.
- 55 dB Noise Level: At 55 dB, audible fan noise is present under load — equivalent to a conversational office environment. For deployments in occupied spaces (reception desks, open offices with collocated security equipment), factor this into enclosure selection or closet placement.
- USB and Serial Management Interfaces: Both USB and serial (DB-9) management ports are onboard, allowing direct connection to a host server for graceful shutdown signaling via compatible UPS management software. No network management card is required for basic shutdown automation — the USB connection handles it without additional licensing.
- 50/60 Hz Input and Output Frequency: Dual-frequency input (50 or 60 Hz) means the unit can be commissioned in facilities with non-standard utility feeds or generator power that may waver between frequencies during transfer — a real-world edge case in generator-backed security operations centers.
- ±5% Output Voltage Regulation: Output voltage stays within ±5% of 120V under all conditions short of battery depletion. Tight regulation protects sensitive surveillance electronics — specifically NVR storage controllers and managed switch ASICs — from the cumulative effects of chronic undervoltage.
Integration & Compatibility
The SMTL2200RM2UCNC fits standard 19-inch rack-mount UPS rails in 2U of rack space. The USB management port integrates with Windows and Linux UPS management utilities for automated graceful shutdown on extended outages, protecting NVR write operations and database integrity on access control servers. The serial port provides a secondary management path compatible with legacy server management cards and select APC by Schneider Electric environmental monitoring accessories.
For deployments requiring SNMP-based remote monitoring, alerting, and runtime reporting across a distributed network video recorder infrastructure, an optional network management card (sold separately) slots into the UPS to deliver full IP-based management. This is the correct upgrade path for multi-site security operations where centralized power monitoring integrates into the same dashboard as camera and NVR health status.
When sizing this unit into a rack alongside a PoE switch and NVR, total the actual draw of all protected devices at steady state — not their nameplate maximums. Most commercial PoE switches and NVRs run at 40–60% of rated wattage at typical loads, leaving meaningful headroom under the 1920W ceiling. For a more detailed walkthrough of UPS sizing methodology for security racks, the UPS and power protection buying guide covers load calculation, runtime estimation, and battery sizing specific to surveillance infrastructure.
Frequently Asked Questions
Q: What is the difference between the SMTL2200RM2UCNC and a standard double-conversion UPS at this wattage?
A: The SMTL2200RM2UCNC uses a line-interactive topology, which means utility power flows directly to the load (through AVR correction) rather than being continuously inverted from the battery bus. This makes it 96% efficient — typically 8–10 percentage points more efficient than a double-conversion unit at the same capacity. The trade-off is a brief transfer time (typically under 4ms) to battery during a complete power failure, versus zero transfer time in a double-conversion design. For NVRs, PoE switches, and access control servers with standard ATX or active-PFC supplies, a sub-4ms transfer is within equipment hold-up specs and is not a practical concern.
Q: Does the SMTL2200RM2UCNC output a true sine wave or a simulated sine wave?
A: True sine wave. The output waveform is a pure sine wave at 120V, which is required for compatibility with active PFC power supplies found in most modern rack equipment. A simulated (stepped) sine wave can cause audible buzzing, reduce efficiency, or trigger fault conditions on PFC supplies — the true sine wave output eliminates these risks.
Q: How wide is the input voltage range before the SMTL2200RM2UCNC transfers to battery?
A: The automatic voltage regulation (AVR) stage handles input voltages from 82V to 144V without switching to battery. This 62-volt window covers the vast majority of utility sag and swell events. Only a complete outage or a voltage drop below 82V will trigger a battery transfer.
Q: What rack space does the SMTL2200RM2UCNC occupy, and what outlet types are included?
A: The unit occupies 2U in a standard 19-inch rack. The outlet bank includes 8 receptacles in a mix of NEMA 5-15R (15A) and NEMA 5-20R (20A) configurations, covering standard rack equipment without adapters.
Q: Does the SMTL2200RM2UCNC support remote network management?
A: Basic management (graceful shutdown signaling) is available via the onboard USB and serial ports without any add-on card. For full SNMP-based remote monitoring, alerting, and runtime management over IP, an optional network management card is available and slots directly into the UPS enclosure.
Q: What is the surge energy rating on the SMTL2200RM2UCNC?
A: The integrated surge suppressor is rated at 530 joules. This provides solid protection against common line transients and voltage spikes. For sites with elevated lightning exposure, a dedicated surge protection device upstream at the distribution panel is recommended as the primary transient barrier, with the UPS surge stage providing secondary protection.
I specify the SMTL2200RM2UCNC regularly for security head-end racks where the protected load sits between 1,000W and 1,500W — that keeps you comfortably under the 1920W ceiling with margin for expansion. The 96% efficiency spec is what makes this unit viable in an IDF closet without a dedicated cooling upgrade; at full load you're adding roughly 77W of heat to the space rather than the 150–200W you'd see from an older offline or low-efficiency line-interactive at the same capacity.
Technical Highlights:
- 96% Efficiency: Translates to roughly 77W heat dissipation at full 1920W load — important for sealed telecom and IDF closets where every watt of added heat competes with equipment operating temperature ceilings.
- 82–144V AVR Window: A 62V correction range handles facility-level brownouts and overvoltages without touching battery chemistry. In buildings with elevator motors, HVAC compressors, or aging panel wiring, this prevents premature battery wear from constant micro-transfers.
- True Sine Wave Output: Required — not optional — for active PFC power supplies on current-generation NVRs and managed switches. A stepped-approximation sine wave from a cheaper unit at this power level will shorten supply MTBF and can cause intermittent faults that are genuinely difficult to diagnose in a production surveillance rack.
Deployment Considerations:
- The USB and serial management ports support graceful shutdown via standard UPS management software, but SNMP-over-IP monitoring for a multi-site security NOC requires the optional network management card — verify that's in the BOM before commissioning if centralized power alerting is a requirement.
- At 55 dB under load, this unit is audible in quiet office or lobby installations. Mount it in a ventilated rack enclosure or dedicated wiring closet where fan noise is not a factor — open-frame rack deployments in occupied spaces will draw complaints.
The SMTL2200RM2UCNC is the right spec for a 24-channel NVR rack in a commercial building IDF: enough headroom for the recorder, a managed PoE switch, and an access control server, with AVR that handles the voltage instability common on shared commercial circuits — all in 2U without a cooling infrastructure conversation.
