Vertiv SN-Z01 Rack Temperature Sensor
Overview

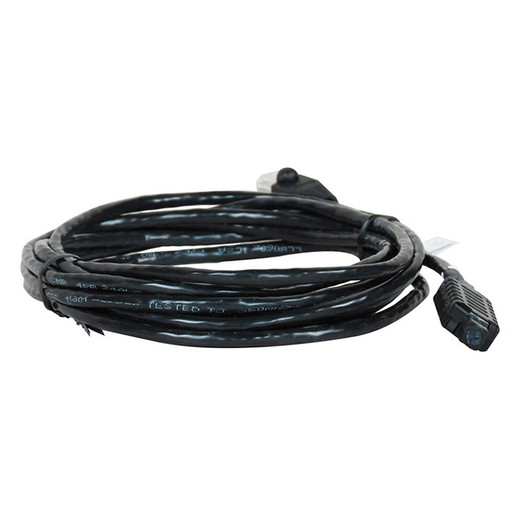

The Vertiv SN-Z01 is a single integrated temperature sensor designed for rack-level thermal monitoring in data centers and network closets. It draws power directly through its communications cable — no separate power supply, no additional wiring run needed — and reports ambient temperature to connected management systems in the 41°F to 131°F (5°C to 55°C) operating range. At 0.25 lb and a footprint of 2 in × 0.75 in × 0.625 in, the SN-Z01 installs without consuming a rack unit or displacing other hardware. If you are deploying Vertiv thermal monitoring and need a dedicated per-rack temperature probe, this is the correct unit.
Compatibility
The SN-Z01 integrates directly with Vertiv Unity environment controllers and RPC2 remote power controllers. These are the two verified direct-integration targets — do not assume compatibility with other Vertiv management platforms without confirming supported sensor lists. For broader environmental monitoring deployments requiring humidity detection or additional sensing points, a multi-sensor variant in the Vertiv Sensor line would be the appropriate alternative rather than stacking multiple SN-Z01 units on the same controller port.
Installation Notes
The SN-Z01 mounts via the supplied bracket or cable tie — no tools beyond basic hand tools required. The bracket option suits permanent rack-rail attachment; the cable tie option works for cable management bars or temporary positioning during commissioning. Power is sourced entirely through the communications cable, so confirm the Unity or RPC2 port provides sufficient bus power before deployment. Operating environment is limited to 41°F–131°F; do not install in outdoor enclosures or uncontrolled environments that exceed this range. Review your power distribution and controller port availability before ordering multiples — each SN-Z01 occupies one sensor port on the host controller.
