Pdu Type:
Metered Rack PDU 2G
Form Factor:
Vertical Rackmount (0U)
Nominal Input Voltage:
200V / 208V
Nominal Output Voltage:
200V / 208V
Input Connection:

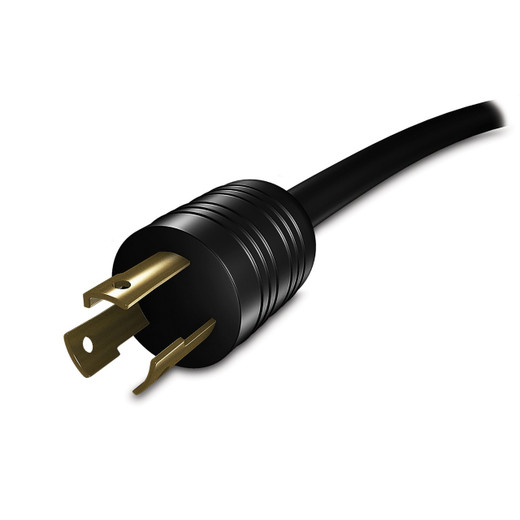

NEMA L6-30P
Cord Length:
9.84 ft (3 meters)
Output Connections:
(6) IEC 60320 C19 (36) IEC 60320 C13
Total Output Outlets:
42
Load Capacity:
4992VA / 4.99kW
Phase:
Single-Phase
Rack Mounting:
Toolless 0U Mounting
Outlet Control:
No (Metered Only)
Power Distribution:
High-density rack power distribution
Type:
Servers, switches, storage, and network equipment
Maximum Total Current Draw:
24A
Output Voltage:
200V / 208V
Outlet Type:
IEC C13 & IEC C19
Output Receptacles:
(36) C13, (6) C19
Power Monitoring:
Real-time load monitoring
Metering:
Input current and load metering
Load Monitoring:
Rack-level power utilization visibility
Led Indicators:
Load and status LED indicators
Outlet Layout:
Vertical outlet arrangement for cable management
Outlet Compatibility:
Compatible with standard IEC power cords
Protection Features:
Overload and threshold alarm support
High Density Support:
Optimized for enterprise rack environments
Input Frequency:
50/60 Hz
Acceptable Input Voltage:
200–240VAC
Number Of Power Cords:
1
Maximum Input Current:
30A
Regulatory Derated Input Current:
24A
Input Power Feed:
Single Input Feed
Input Connection Type:
Locking NEMA Input
Input Current Monitoring:
Real-time input current visibility
Power Delivery:
High-capacity rack power distribution
Input Reliability:
Suitable for mission-critical environments
Maximum Height:
70.51 inches (1791 mm, 179.1 cm)
Maximum Width:
2.2 inches (56 mm, 5.6 cm)
Maximum Depth:
1.73 inches (44 mm, 4.4 cm)
Weight:
15.08 lbs (6.84 kg)
Shipping Height:
78.74 inches (2000 mm, 200 cm)
Shipping Height:
78.74 inches (2000 mm, 200 cm)
Shipping Width:
6.38 inches (162 mm, 16.2 cm)
Shipping Depth:
4.21 inches (107 mm, 10.7 cm)
Color:
Black
Rack Units:
0U
Rack Units:
0U
Mounting Position:
Vertical
Ethernet:
Built-in Ethernet network management port
Remote Access:
Web UI, SNMP v1/v2c/v3, Telnet, SSH, CLI
Remote Access:
Web UI, SNMP v1/v2c/v3, Telnet, SSH, CLI
Supported Protocols:
HTTP, HTTPS, SNMP v1/v2c/v3, SSH, Telnet
User Interface:
LED status indicators and web-based management interface
Local Display:
LED status indicators for power and status
Alerts & Notifications:
Configurable overload and threshold alarms, SNMP traps, email notifications
Alerts & Notifications:
Configurable overload and threshold alarms, SNMP traps, email notifications
User Alarms:
User-configurable event and load-based alarms
Controls:
Remote monitoring and configuration (no outlet switching)
Data Logging:
Historical load, power usage, and event logs
Real-Time Monitoring:
Current, voltage, and load utilization monitoring
Firmware Updates:
Remote firmware upgrade support via network interface
Security Features:
Password protection, HTTPS encryption, and SSH secure access
Remote Management:
Full rack-level monitoring and administration via network
Network Management Integration:
Compatible with APC centralized management platforms
Network Management Integration:
Compatible with APC centralized management platforms
Protocol Support:
HTTP, HTTPS, SNMP v1/v2c/v3, SSH, Telnet
Serial Configuration:
Supported for local setup and recovery
Environmental Monitoring:
Supported with optional temperature and humidity sensors
Intelligent Metering:
Advanced rack-level and outlet-level power monitoring capabilities
Event Notifications:
Email alerts and SNMP trap notifications
User Interface, Alerts & Controls:
LED status indicators, web management interface, configurable overload/threshold alarms, SNMP and email notifications, remote monitoring capabilities
User Interface, Alerts & Controls:
LED status indicators, web management interface, configurable overload/threshold alarms, SNMP and email notifications, remote monitoring capabilities
Operating Temperature:
23 - 140°F (-5 - 60°C)
Operating Temperature:
23 - 140°F (-5 - 60°C)
Operating Relative Humidity:
5 - 95%
Operating Elevation:
0 - 10000 ft (0 - 3048 meters)
Storage Temperature:
-25 - 65°C
Storage Relative Humidity:
5 - 95%
Storage Elevation:
0 - 50000 ft (0 - 15240 meters)
