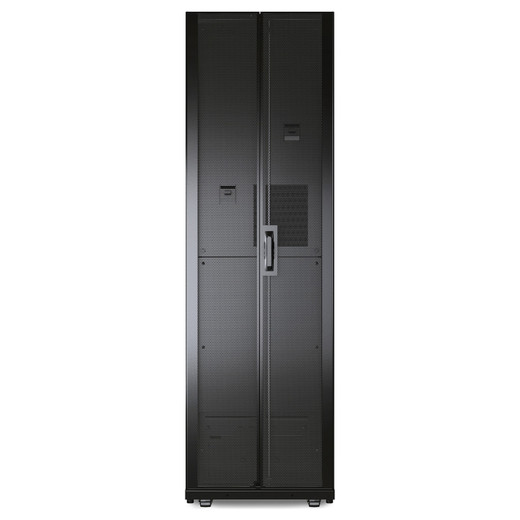

APC 144kVA Modular Power Distribution Unit Isolation Transformer 600:208V 72 Poles 2 - PDPM150L6F

APC by Schneider Electric PDPM150L6F Concise Descriptor

Overview

The APC by Schneider Electric PDPM150L6F is a 144kVA modular isolation transformer designed to step down 600V to 208V. This unit provides a clean, stable power source essential for sensitive electronic equipment, including critical IT infrastructure and industrial automation systems. Its 72-pole configuration offers precise power management for demanding applications where voltage stability is paramount. The PDPM150L6F is engineered for environments requiring robust power conditioning and isolation from grid disturbances.

Compatibility

This isolation transformer is designed for integration into APC's modular power distribution systems. It is compatible with APC's Symmetra LX and other compatible power distribution architectures requiring a 600V to 208V step-down capability. Verify system compatibility with your APC representative or technical documentation for specific rack and chassis configurations.

Installation Notes

Installation requires qualified electrical personnel familiar with high-voltage systems. Ensure proper grounding and adherence to all local electrical codes. The unit's 72-pole configuration necessitates careful wiring to ensure correct voltage step-down and isolation. Torque specifications for terminal connections must be followed to prevent overheating and ensure secure electrical contact. Operating temperature range is critical for sustained performance; consult the product datasheet for specific environmental limits.

What's in the Box

• 1x APC PDPM150L6F Isolation Transformer
