APC by Schneider Electric AP7950 PDU

Overview

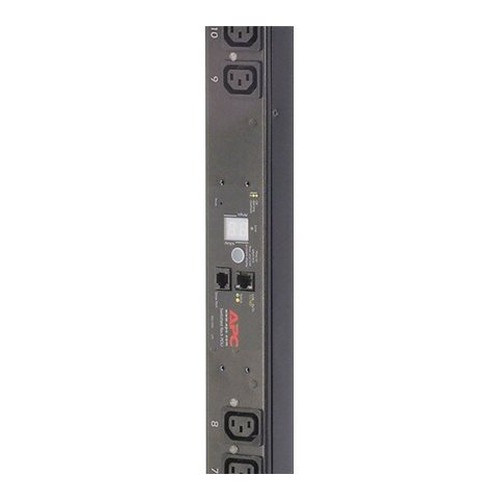

The APC AP7950 is a rack-mountable Power Distribution Unit (PDU) designed to provide controlled power distribution for up to sixteen devices. It connects via a standard IEC-320 C14 input and delivers 230V AC power through its 16 IEC-320 C13 outlets. This unit is essential for managing power in server racks, ensuring each component receives stable power and can be individually controlled if network-managed variants are used (though this specific model is not network-managed). Its form factor is optimized for standard 19-inch racks.

Compatibility

This PDU is designed to be compatible with standard IT equipment requiring IEC-320 C13 power connectors and operating at 230V AC. It directly interfaces with the IEC-320 C14 input on your UPS or mains power source. While this specific AP7950 model does not offer network management features, it serves as a reliable power distribution point for any rack-mounted server, switch, or other device that draws up to 10A per phase.

Installation Notes

The AP7950 has a nominal output voltage of 230V and a maximum input current of 10A per phase. Ensure your power source can supply this current. The operating temperature range is -5 to 45 °C, and it can withstand storage temperatures from -25 to 65 °C. Relative humidity tolerance is 5-95%, non-condensing. The unit measures 1245mm in height, 56mm in width, and 44mm in depth, designed to fit standard rack elevations. Certifications include CE and VDE.
