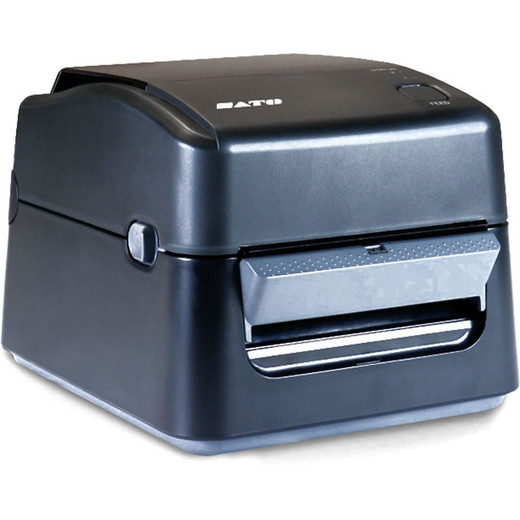

SATO WT212-400DW-EX1 203dpi Desktop Thermal Printer

SATO WT212-400DW-EX1 203dpi Desktop Thermal Printer

The SATO WS4 WT212-400DW-EX1 B2 is a compact yet powerful desktop thermal printer engineered for enterprise-grade label production. Delivering 203 dpi resolution at 6 inches per second, this dual-mode printer supports both direct thermal and thermal transfer printing, making it an ideal solution for organizations requiring flexibility in media selection and print quality. Its robust 4.09-inch maximum print width accommodates standard shipping labels, inventory tags, compliance labels, and barcode applications across diverse industries.

Key Features

• 203 dpi resolution at 6 ips for sharp barcode and text output
• Dual-mode printing: direct thermal and thermal transfer support
• 4.09-inch maximum print width with 1-inch to 4.65-inch media compatibility
• 16 MB Flash, 32 MB SDRAM, and 16 MB user-accessible storage for forms and fonts
• Multiple connectivity options: USB 2.0, Ethernet, Wi-Fi, and Bluetooth
• Tool-free printhead and platen roller replacement for minimal maintenance
• LCD Display for intuitive configuration and operation
• Supports media rolls up to 5-inch outer diameter with 1-inch core
• Thermal transfer ribbons up to 984 feet (300 m) capacity
• Compact desktop form factor: 8.69" × 10.96" × 7.38"

Technical Specifications

• Print Resolution: 203 dpi
• Print Speed: 6 inches per second
• Maximum Print Width: 4.09 inches
• Memory: 16 MB Flash, 32 MB SDRAM, 16 MB user storage
• Interfaces: USB 2.0, Ethernet, Wi-Fi, Bluetooth
• Display: LCD
• Media Width Range: 1 inch to 4.65 inches
• Media Core: 1 inch
• Maximum Roll Diameter: 5 inches
• Ribbon Capacity: Up to 984 feet (300 m)
• Dimensions: 8.69" × 10.96" × 7.38"
• Weight: 5.46 lbs (2.48 kg)
• Power Input: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F (5°C to 40°C)

Ideal Applications

• Shipping and logistics label generation
• Manufacturing identification and product tracking
• Warehouse inventory management and bin labeling
• Healthcare and pharmaceutical compliance labeling
• Retail point-of-sale and price labeling
• Asset management and serial number identification

Marty Allison

The SATO WT212-400DW-EX1 strikes an optimal balance between performance and compact form factor for mid-volume label operations. The dual-mode printing capability—supporting both direct thermal (no ribbon required) and thermal transfer (ribbon-based)—provides significant operational flexibility. Organizations can reduce per-label costs using direct thermal for temporary labels while leveraging thermal transfer for durable, color-capable applications on specialty media.

The 203 dpi resolution and 6 ips speed deliver professional-grade output suitable for GS1-compliant barcodes and regulatory labeling without sacrificing throughput. Built-in memory (32 MB SDRAM) handles complex graphics and database integration, while the 16 MB user storage enables offline font and form management. Multi-protocol connectivity—USB, Ethernet, Wi-Fi, and Bluetooth—ensures seamless integration into existing enterprise networks and supports mobile printing scenarios.

Tool-free maintenance design minimizes technician time and reduces downtime, a critical factor in high-availability warehouse and manufacturing environments. The compact 5.46 lb footprint makes it ideal for space-constrained operations without compromising media capacity (5-inch roll support). This B-Stock unit offers exceptional value for organizations seeking enterprise reliability with standard configuration.

Product Documentation

📄 Download Product Datasheet (PDF)
