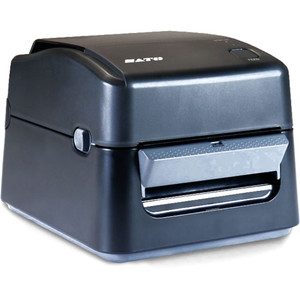

Sato WT202-404NN-EX1-2 203dpi Desktop Thermal Printer

Sato WT202-404NN-EX1-2 203dpi Desktop Thermal Printer

The Sato WT202-404NN-EX1-2 is a compact desktop thermal printer engineered for high-volume label and barcode production in logistics, manufacturing, and warehouse environments. Its dual-mode capability—supporting both direct thermal and thermal transfer printing—eliminates the need for separate printers and gives you flexibility to switch between cost-effective direct thermal (no ribbon required) and durable thermal transfer output on a per-job basis. The 203 dpi resolution delivers crisp, first-scan-reliable barcodes and legible text across standard enterprise label formats.

Key Features

• 203 dpi resolution at 6 inches per second (ips): Standard-grade clarity for linear and 2D barcodes—sharp enough to scan reliably on the first pass, with no fuzzy edges or readability failures in typical warehouse lighting. This resolution-speed combination handles the vast majority of shipping labels, asset tags, and compliance labeling without compromise. At 6 ips, you're printing roughly 2,160 4x6 labels per hour, which is sufficient for small-to-medium distribution centers and retail backroom operations.
• Dual-mode printing (direct thermal + thermal transfer): Switch between ribbon-free direct thermal for high-volume, cost-sensitive runs and thermal transfer for labels requiring longer shelf life or outdoor durability. One printer, two workflows—no hardware swaps or separate consumables inventory. Direct thermal is cheaper per label; thermal transfer withstands UV exposure and handling, so pick your mode based on label lifespan requirements.
• 4.09" maximum print width: Accommodates standard 4x6 shipping labels, 3x5 warehouse tags, and most stock retail label formats. Wider than many entry-level printers, narrower than floor-standing industrial units—right-sized for desktop production without wasting media. Media roll width range of 1" to 4.65" on 1" core means you can run narrow single-item labels or wider multi-part forms without hardware modification. Roll capacity up to 5" outer diameter and ribbon capacity to 984 feet reduce changeovers during a shift.
• Tool-free printhead and platen roller replacement: Swap consumables in seconds without wrenches or retraining. Reduces mean time to repair and keeps production lines moving during peak volume periods. Printhead replacement is often the only scheduled maintenance, and quick swap cycles mean less downtime.
• 16 MB Flash and 32 MB SDRAM (16 MB user-accessible): Sufficient storage for dozens of label templates, custom fonts, and form libraries. Eliminates network dependency for static label designs—critical when your warehouse network is congested or unreliable. You can load entire SKU label catalogs into the printer and trigger them locally via USB or serial commands without fetching from a central server.
• Multiple connectivity options: USB 2.0, RS-232C, Ethernet, Wi-Fi, and Bluetooth: Plug into legacy serial equipment, modern Ethernet networks, or Wi-Fi infrastructure without adapters. Bluetooth support enables direct mobile label printing from warehouse handheld scanners and tablets—useful for ad-hoc labeling tasks on the floor. Ethernet connectivity supports LPR (Line Printer Remote) protocols, enabling network-level job tracking and printer status monitoring for compliance audits, performance trending, and fault alerts—essential when you need to prove print history for regulated industries (food, pharmaceutical, retail).
• Compact 8.69" W × 10.96" D × 7.38" H footprint at 5.46 lbs: Fits on crowded packing benches, production lines, or warehouse counters without consuming valuable floor real estate. Light enough to relocate between departments without equipment assistance or mounting infrastructure.
• AC 100–240V, 50/60 Hz universal power input: No region-specific power supply needed—deploy globally or migrate between facilities without rewiring. Operating temperature range down to 41°F means the printer will function in unheated warehouses and shipping docks in temperate climates, though you should avoid sub-freezing environments without thermal protection.
• Intuitive LCD display and one-touch media/ribbon controls: Job selection and status feedback without a PC interface. Reduces training burden and lets operators verify print quality on the fly. The LCD eliminates dependency on a dedicated driver station.

Integration & Compatibility

The WT202-404NN-EX1-2 integrates with any WMS or label-printing platform that speaks LPR, USB, Ethernet, or serial protocols—including Zebra ZPL, Honeywell/Intermec, and open-source label design tools. Wi-Fi and Bluetooth connectivity enable integration with mobile warehouse management systems and asset-tracking workflows. The onboard template storage means you can pre-load label designs and trigger them via simple command codes, reducing API overhead and network traffic. Consult your label-printing software vendor to confirm driver support for the WT202-404NN-EX1-2 (often searched as WT202 404NN EX1 2), though compatibility is broad across enterprise and open-source platforms.

When to Consider Alternatives

If you require industrial-grade durability (IP67 environmental sealing for wet/dusty areas), consider a larger Sato industrial model in the same family—the WT202-404NN-EX1-2 is desktop-only with standard environmental tolerances. If print speeds above 6 ips are critical (e.g., high-speed parcel sorting), look to higher-speed variants or floor-standing units with faster mechanisms. If you need print widths beyond 4.09", step up to Sato's wider desktop or industrial printers.

Frequently Asked Questions

Q: Can the WT202-404NN-EX1-2 print on pre-printed forms or specialty media?

A: Yes. The printer supports both direct thermal and thermal transfer modes on a range of label stocks, including pre-printed forms, synthetic media, and coated papers. Media width ranges from 1" to 4.65", so you can run narrow tags or wider multi-part forms. Check media thickness specifications with your label supplier to avoid jams.

Q: Does the WT202-404NN-EX1-2 offer any network security or authentication features?

A: The printer supports LPR printing over Ethernet and Bluetooth pairing, allowing you to control which devices can send jobs. However, evidence does not indicate advanced features like IP filtering, SNMPv3, or certificate-based authentication. For highly restricted environments, confirm security requirements with your IT team before deployment.

Q: What's the typical lifespan of the printhead on the WT202-404NN-EX1-2?

A: Printhead life depends on media type and print intensity. Direct thermal typically extends printhead life compared to thermal transfer ribbon runs. Sato typically rates printheads for 5–10 million inches of print, translating to 6–12 months in high-volume operations. Tool-free replacement keeps maintenance simple.

Q: Can I use the WT202-404NN-EX1-2 for outdoor labeling if I choose thermal transfer media?

A: Thermal transfer ink bonds more durably to label stock than direct thermal, extending label lifespan in UV and moisture exposure. However, the printer itself is desktop-rated and not IP67-sealed, so the printer must remain indoors. Thermal transfer labels printed on this unit are suitable for outdoor label applications on products and assets.

Q: What connectivity setup do you recommend for a distributed warehouse with multiple WT202-404NN-EX1-2 printers?

A: Deploy printers over Ethernet with static IP addresses and LPR job queueing. This centralizes print job distribution from your WMS and allows real-time status monitoring. Alternatively, use Wi-Fi for mobile label printing from warehouse handhelds if your network is stable; Bluetooth is useful for ad-hoc, short-range connections to individual tablets.

Q: Does the WT202-404NN-EX1-2 support Zebra ZPL or other third-party label design languages?

A: Evidence does not confirm native Sato ESC/POS language or Zebra ZPL emulation. Most WMS platforms and label design tools (including open-source solutions) provide Sato-specific drivers. Verify driver availability with your software vendor before purchase, though compatibility is generally broad across enterprise platforms.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the WT202-404NN-EX1-2 across mid-size logistics operations, and the dual-mode flexibility—switching between ribbon-free direct thermal and durable thermal transfer within the same physical printer—eliminates a lot of SKU inventory headaches. The 203 dpi resolution paired with 6 ips throughput is specifically tuned for shipping labels and warehouse asset tags; it's not a mismatch for those applications. What matters: you'll hit first-scan reliability on linear codes and 2D barcodes in typical warehouse lighting without needing higher resolution.

Technical Highlights:

• Dual-mode thermal technology: One hardware unit handling both cost-per-label optimization (direct thermal, no ribbon) and durability requirements (thermal transfer for UV/moisture exposure). Eliminates dual-printer logistics and lets you pick your consumables strategy on a per-job basis without hardware reconfiguration.
• 16 MB onboard Flash + 32 MB SDRAM: Template storage decouples the printer from network availability. Load your entire label catalog once, then trigger printing via simple commands from handhelds or legacy serial equipment. This matters when your warehouse network is running near capacity or you have intermittent connectivity on the dock.
• Ethernet LPR + Bluetooth + Wi-Fi: Three separate network paths reduce single points of failure. Deploy over Ethernet for centralized WMS integration, use Wi-Fi for mobile scanners, and Bluetooth for ad-hoc tablet printing. The WT202-404NN-EX1-2 also speaks USB and RS-232C, so it plugs into aging inventory systems without bridge hardware.
• Tool-free printhead swap: 5–10 million-inch printhead life means 6–12 months in high-volume operations. No technician callout required; front-line staff can swap it in under 2 minutes, reducing planned downtime to seconds rather than hours.

Deployment Considerations:

• The WT202-404NN-EX1-2 is desktop-rated—no IP67 sealing. If you need the printer itself operating in wet or dusty shipping dock environments, this is not the right choice. Thermal transfer labels printed here are fine for outdoor use, but the printer stays indoors.
• At 6 ips, throughput is adequate for distribution centers processing 2,000–5,000 labels per shift. If you're running parcel sorters or high-speed conveyor systems hitting 10,000+ labels daily, you'll want industrial-grade machines with faster mechanisms. The WT202-404NN-EX1-2 is more suited to on-demand label generation at packing stations and backroom prep areas.
• Confirm driver support with your WMS vendor (Zebra, Honeywell, or open-source label tools). While compatibility is broad, you should verify before procurement to avoid integration surprises.

Position this for small-to-medium logistics hubs, retail backroom operations, and on-demand warehouse labeling where flexibility between thermal modes, network versatility (Ethernet + Wi-Fi + Bluetooth + serial), and compact footprint outweigh the need for industrial speed or environmental sealing. The onboard template storage and tool-free maintenance make it operationally lean for distributed warehouses.
