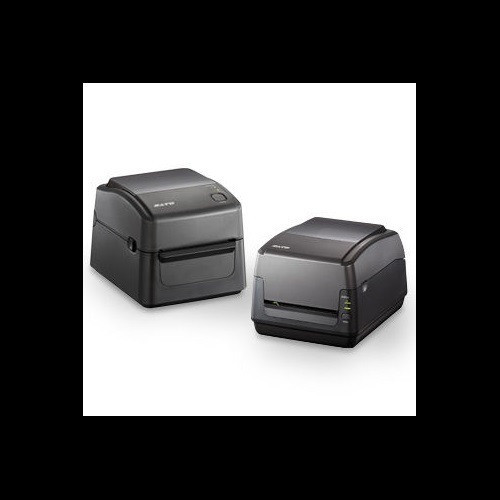

SATO WT212-404CB-EX1-2 203dpi Desktop Thermal Printer
The SATO WT212-404CB-EX1-2 is a versatile WS4 series desktop thermal printer engineered for enterprise-grade label production. Delivering 203 dpi resolution at 6 inches per second, this compact system balances speed and print quality while maintaining a minimal footprint. Supporting both direct thermal and thermal transfer printing modes, the WT212-404CB-EX1-2 adapts to diverse labeling requirements across shipping, manufacturing, and warehouse environments.
Key Features
- 203 dpi resolution at 6 ips for sharp barcodes, QR codes, and text output
- 4.09" maximum print width accommodates standard shipping and compliance labels
- Dual-mode printing: direct thermal and thermal transfer for media flexibility
- 16 MB Flash + 32 MB SDRAM with 16 MB user-accessible storage for custom fonts and forms
- Multiple connectivity: USB 2.0, Ethernet, Wi-Fi, and Bluetooth for seamless network integration
- Tool-free printhead and platen roller replacement minimizes maintenance downtime
- Supports media rolls up to 5" outer diameter with 984 ft ribbon capacity
- Media width range: 1" to 4.65" on 1" cores
- Built-in cutter configuration for automated label separation
- Compact desktop form factor: 8.69" x 10.96" x 7.38"
Technical Specifications
Print Performance: 203 dpi resolution | 6 ips print speed | 4.09" maximum print width
Memory & Storage: 16 MB Flash memory | 32 MB SDRAM | 16 MB user-accessible storage
Connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth, RS-232C
Media Handling: 1" to 4.65" media width | 5" maximum roll diameter | 984 ft ribbon length
Physical: Weight 5.46 lbs | Dimensions 8.69" x 10.96" x 7.38"
Power & Environment: AC 100-240V, 50/60Hz | Operating temperature 41°F to 104°F
Typical Applications
- High-volume shipping and logistics label printing
- Manufacturing product identification and tracking
- Warehouse inventory management and routing labels
- Compliance and regulatory label production
- Healthcare and pharmaceutical labeling
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WT212-404CB-EX1-2 represents SATO's commitment to reliable, user-maintainable desktop thermal printing. The dual-mode printing capability eliminates the need for separate equipment when transitioning between label types—direct thermal for cost-sensitive applications, thermal transfer for durability and color options. The 203 dpi resolution strikes an optimal balance for barcode readability without excessive memory overhead, while 6 ips throughput meets moderate-to-high volume requirements in logistics and manufacturing.
Multi-protocol connectivity (Ethernet, Wi-Fi, Bluetooth) ensures compatibility with legacy systems and modern cloud-based label management platforms. The tool-free maintenance design reduces total cost of ownership by minimizing technician callouts. Memory allocation—16 MB user storage—is adequate for standard forms libraries but may require network-based font management in extremely complex environments.
This printer is ideal for organizations seeking reliable thermal printing without the footprint or cost of larger industrial systems.
