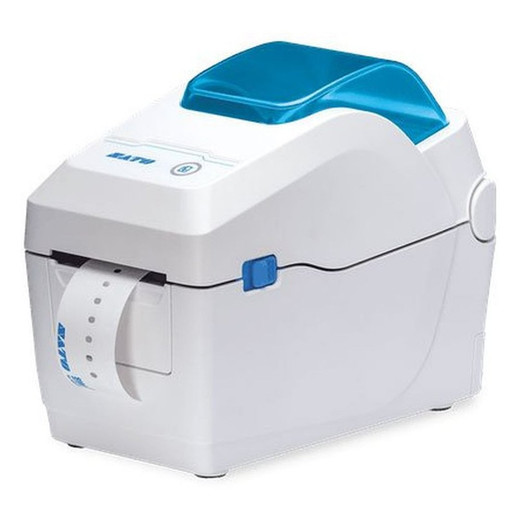

SATO WS2 W2312-400CN-EX1 300dpi Desktop Thermal Printer

The SATO WS2 W2312-400CN-EX1 is a compact, enterprise-grade desktop thermal printer designed for high-volume label production in logistics, manufacturing, and warehouse environments. Delivering 300 dpi resolution at 7 inches per second, this direct thermal printer combines speed, print quality, and operational simplicity in a space-efficient form factor. With dual memory configurations, intuitive touchscreen controls, and tool-free maintenance access, the W2312 minimizes downtime while maximizing throughput for mission-critical labeling applications.

Key Features

• 300 dpi print resolution for crisp barcodes, text, and graphics
• 7 ips print speed for efficient label production
• 2.2" maximum print width accommodating standard label formats
• Direct thermal printing—no ribbon required for cost-effective short-term labels
• 256 MB Flash and 128 MB SDRAM with 128 MB user storage for fonts and forms
• 2.4" color LCD display for intuitive menu navigation and status monitoring
• Tool-free printhead and platen roller replacement to minimize maintenance time
• Integrated cutter for automated label separation
• Multi-protocol connectivity: USB 2.0, Ethernet, Wi-Fi, and Bluetooth
• Media roll compatibility up to 5" outer diameter with 1" core standard
• Ribbon support up to 984 ft (300 m) for thermal transfer applications

Technical Specifications

Print Capability: 300 dpi resolution | 7 ips maximum speed | 2.2" print width
Media Handling: 0.5" to 2.83" media width range | 5" maximum roll diameter | 1" core
Memory: 256 MB Flash | 128 MB SDRAM | 128 MB user-accessible storage
Connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth
Display: 2.4" color LCD touchscreen
Dimensions: 6.3" W × 7.5" D × 6.5" H
Weight: 3.5 lbs (1.6 kg)
Power: AC 100-240V, 50/60Hz
Operating Environment: 41°F to 104°F (5°C to 40°C)

Ideal Applications

• Shipping and logistics label production
• Manufacturing asset identification and traceability
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling
• Healthcare and pharmaceutical labeling
• Retail and point-of-sale ticketing

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO WS2 W2312-400CN-EX1 represents a balanced solution for organizations requiring desktop-class thermal printing without sacrifice to speed or image quality. The 300 dpi specification ensures barcode readability across most standard symbologies, while 7 ips throughput handles moderate-to-high volume workflows efficiently. The direct thermal print method significantly reduces consumable costs in short-lived label scenarios—ideal for shipping tags and temporary tracking labels where ribbon investment is unnecessary.

Key operational advantages include the tool-free printhead design, which reduces technician dependency and unplanned downtime, and the generous media compatibility range (0.5" to 2.83" widths) that accommodates custom label sizes without equipment reconfiguration. Quad connectivity (USB, Ethernet, Wi-Fi, Bluetooth) provides flexible integration into diverse IT environments, from legacy Windows systems to modern cloud-based label management platforms.

The 2.4" color LCD display and 128 MB user storage enable on-device font and form management, reducing reliance on centralized print servers for small-to-medium deployments. For enterprises standardizing on SATO platforms, this model fits well as a secondary or departmental printer supporting high-touch labeling tasks while primary production remains centralized on higher-capacity systems.
