SATO WS2 W2312-400DB-EX1 300dpi Desktop Thermal Printer

SATO WS2 W2312-400DB-EX1 300dpi Desktop Thermal Printer

The SATO WS2 W2312-400DB-EX1 is a compact desktop thermal printer engineered for high-volume enterprise label production. Delivering 300 dpi resolution at 7 inches per second, this direct thermal printer produces crisp barcodes, text, and graphics on media up to 2.2 inches wide. With a dispenser-configured setup, robust connectivity options, and tool-free maintenance design, the W2312-400DB-EX1 is built for reliability in demanding shipping, manufacturing, and warehouse environments.

Key Features

• 300 dpi resolution at 7 ips for sharp barcode and text output
• 2.2" maximum print width accommodates standard shipping and compliance labels
• Direct thermal printing eliminates ribbon costs for economical short-term labeling
• 2.4" color LCD display for intuitive operation and status monitoring

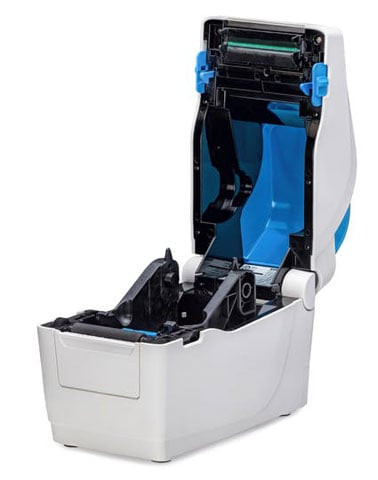

• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• 256 MB Flash and 128 MB SDRAM with 128 MB user storage for forms and fonts
• Multiple connectivity: USB 2.0, Ethernet, Wi-Fi, and Bluetooth for flexible deployment
• Supports media rolls up to 5" outer diameter with 1" cores
• Handles ribbon widths up to 984 ft (300 m) for extended print runs

Technical Specifications

• Print Method: Direct Thermal
• Resolution: 300 dpi
• Print Speed: 7 ips
• Maximum Print Width: 2.2"
• Media Width Range: 0.5" to 2.83"
• Memory: 256 MB Flash, 128 MB SDRAM, 128 MB user-accessible
• Connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth
• Display: 2.4" color LCD
• Dimensions: 6.3" x 7.5" x 6.5"
• Weight: 3.5 lbs (1.6 kg)
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F (5°C to 40°C)

Applications

• High-volume shipping and logistics labeling
• Manufacturing identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling
• Healthcare and pharmaceutical labeling
• Retail and e-commerce order fulfillment

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO WS2 W2312-400DB-EX1 is purpose-built for organizations requiring dependable, high-quality label printing at enterprise scale. The 300 dpi resolution and 7 ips speed balance quality with throughput—ideal for operations processing hundreds of labels daily. Direct thermal capability eliminates ribbon inventory and complexity, reducing operational costs for organizations focused on short-to-medium label lifecycles.

The dispenser configuration and tool-free maintenance design reflect SATO's emphasis on minimizing technician time and training overhead. Multi-protocol connectivity (Ethernet, Wi-Fi, Bluetooth, USB) provides deployment flexibility across network infrastructures, from wired data centers to mobile warehouse terminals. The 128 MB user storage and integrated LCD make this printer self-contained for standard enterprise workflows without requiring external servers for basic label templates.

For organizations balancing print quality, speed, uptime, and total cost of ownership, the W2312-400DB-EX1 delivers measurable value.
