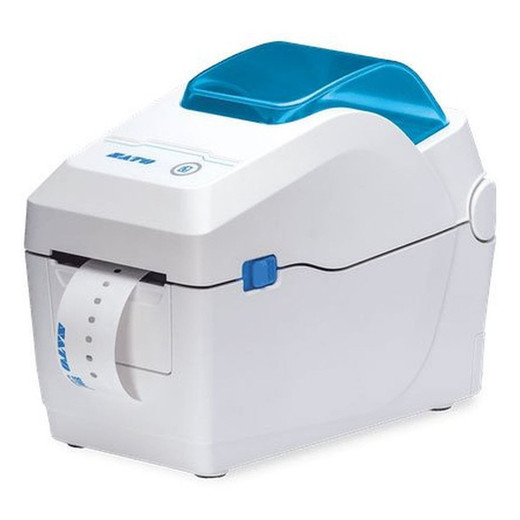

SATO WS2 W2312-400NB-EX1 300dpi Desktop Thermal Printer

The SATO WS2 W2312-400NB-EX1 is a compact, enterprise-grade desktop thermal printer engineered for high-volume label production in demanding logistics, manufacturing, and warehouse environments. With 300 dpi resolution and 7 inches-per-second print speed, this direct thermal printer delivers crisp barcode and text output on labels up to 2.2 inches wide, making it ideal for shipping labels, inventory tags, and compliance labeling applications.

Key Features

• 300 dpi resolution at 7 ips for sharp barcodes and readable text
• Direct thermal printing eliminates ribbon costs for short-term labeling applications
• 2.2-inch maximum print width accommodates standard shipping and warehouse labels
• 2.4-inch color LCD display for intuitive operation and navigation
• Tool-free printhead and platen roller replacement reduces maintenance downtime
• Multiple connectivity options: USB 2.0, Ethernet, Wi-Fi, and Bluetooth
• Supports media rolls up to 5 inches outer diameter with 1-inch cores
• Ribbon capacity up to 984 feet (300 m) for extended print runs

Technical Specifications

• Resolution: 300 dpi print quality
• Print Speed: 7 inches per second
• Maximum Print Width: 2.2 inches
• Media Width Range: 0.5 to 2.83 inches
• Memory: 256 MB Flash, 128 MB SDRAM, 128 MB user-accessible storage for fonts and forms
• Connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth
• Dimensions: 6.3 x 7.5 x 6.5 inches
• Weight: 3.5 lbs (1.6 kg)
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F (5°C to 40°C)

Applications

• High-volume shipping and logistics label production
• Manufacturing part identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling
• Healthcare and pharmaceutical product labeling

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO WS2 W2312-400NB-EX1 combines affordability with reliability for organizations requiring consistent, high-quality label output without ribbon expenses. The direct thermal technology is particularly cost-effective for environments with high label throughput where durability is secondary to volume economics. The tool-free maintenance design significantly reduces total cost of ownership by minimizing downtime between production runs.

Versatile connectivity—including Wi-Fi and Bluetooth alongside traditional Ethernet and USB—enables flexible deployment in both wired and wireless warehouse networks. The 300 dpi resolution at 7 ips provides a balanced performance-to-footprint ratio suitable for desktop environments with space constraints, while still delivering enterprise-grade printing for compliance and traceability requirements.
