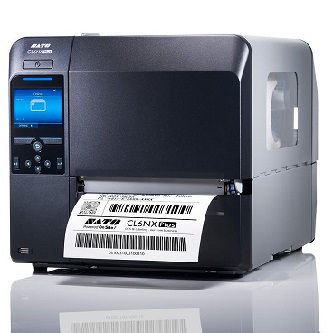

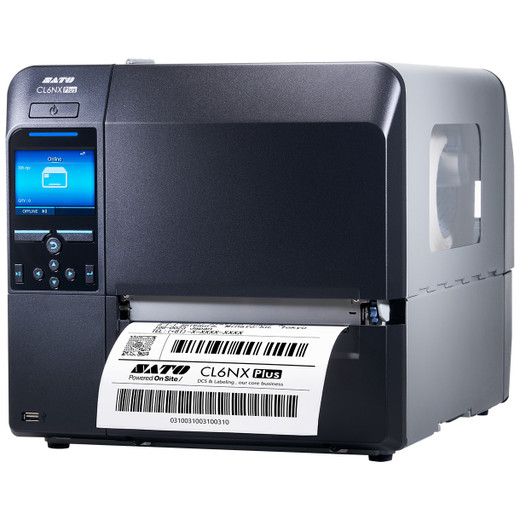

SATO CL6NX Plus 203dpi Industrial Thermal Printer - WWCLPA101

SATO CL6NX Plus 203dpi Industrial Thermal Transfer Printer – WWCLPA101

The SATO WWCLPA101 is a professional-grade industrial thermal transfer printer engineered for high-volume enterprise labeling applications. Featuring 203 dpi resolution at 14 ips print speed, this dual-mode printer delivers crisp barcode and text output on media widths from 4.09" to 6.59". Built with a die-cast aluminum frame and corrosion-resistant metal housing, the CL6NX Plus combines durability with intuitive operation through a 3.5" Full-Color LCD Touchscreen.

Key Features

• Dual-mode printing: Direct thermal and thermal transfer for maximum media flexibility
• 203 dpi resolution at 14 ips for high-quality barcodes, QR codes, and text
• 2 GB Flash and 256 MB SDRAM with 100 MB user-accessible storage for forms and fonts
• 3.5" Full-Color LCD Touchscreen for intuitive menu navigation
• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• Media roll support up to 8.6" outer diameter on 3" cores
• Multiple connectivity options: Ethernet, Wi-Fi, and USB
• Operating temperature range: 41°F to 104°F for varied environments

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi
• Print Speed: 14 ips
• Maximum Print Width: 4.09"
• Media Width Range: 4.09" to 6.59"
• Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
• Display: 3.5" Full-Color LCD Touchscreen
• Connectivity: Ethernet, Wi-Fi, USB
• Dimensions: 10.66" W x 17.99" D x 12.63" H
• Weight: 33 lbs
• Power: AC 100-240V, 50/60Hz
• Maximum Roll Diameter: 8.6"

Industrial Applications

• High-volume shipping and logistics label production
• Manufacturing identification, serialization, and product tracking
• Warehouse inventory management and routing labels
• Compliance, regulatory, and pharmaceutical labeling
• Retail point-of-sale and price ticketing

Karl Wilson

Perspective based on aggregated and affiliated engineering team experience.

The SATO CL6NX Plus WWCLPA101 is positioned as a workhorse for mid-to-large enterprise environments requiring reliable, high-speed label production. The 14 ips print speed and 203 dpi resolution strike a practical balance between throughput and output quality—sufficient for standard barcodes, shipping labels, and compliance marking without requiring premium 300+ dpi systems. The dual-mode capability (direct thermal and thermal transfer) provides operational flexibility; direct thermal suits cost-sensitive, short-term label needs, while thermal transfer enables longer shelf-life labels with ribbon-based durability.

The tool-free printhead design is a significant operational advantage in high-volume environments, reducing maintenance overhead and printer downtime. Built-in Wi-Fi and Ethernet connectivity integrate seamlessly into modern networked warehouse and manufacturing systems. The 3.5" color touchscreen and onboard 2 GB Flash memory support complex label designs and multiple form storage without external drivers. At 33 lbs with a compact footprint, the unit fits standard industrial label stations. This printer excels where reliability, ease of maintenance, and enterprise connectivity are prioritized over cutting-edge speed or resolution.
