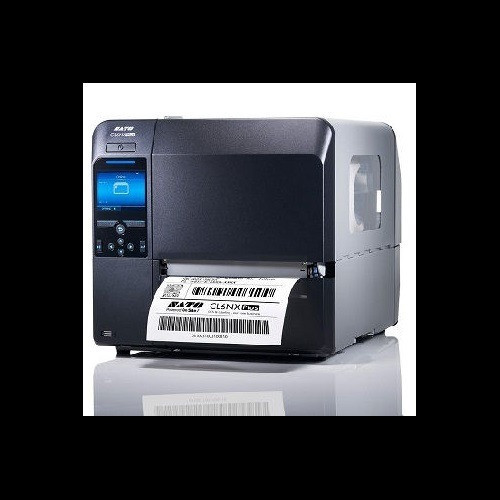

SATO CL6NX Plus 203dpi Industrial Thermal Printer

SATO CL6NX Plus 203dpi Industrial Thermal Transfer Printer

The SATO WWCLPA101-WAR is a versatile industrial-grade thermal printer designed for high-volume enterprise labeling applications. Built on the proven CL6NX Plus platform, this printer combines dual printing modes (direct thermal and thermal transfer) with robust connectivity and intuitive operation, making it ideal for logistics, manufacturing, and warehouse environments requiring reliable, continuous label production.

Key Features

• 203 dpi resolution at 14 ips print speed for sharp barcode and text output
• Dual-mode printing: Direct thermal and thermal transfer for maximum media flexibility
• 3.5" Full-Color LCD Touchscreen with intuitive controls for easy operation
• Tool-free printhead and platen roller replacement to minimize maintenance downtime
• 4.09" maximum print width with support for media rolls up to 8.6" outer diameter
• Multi-interface connectivity: Ethernet, Wi-Fi, and USB for flexible deployment
• Robust memory: 2 GB Flash and 256 MB SDRAM with 100 MB user storage for fonts and forms
• Compact die-cast aluminum frame with corrosion-resistant metal housing for durability

Technical Specifications

• Resolution: 203 dpi
• Print Speed: 14 ips
• Print Width: 4.09" maximum (media range: 4.09" to 6.59")
• Printing Modes: Direct Thermal and Thermal Transfer
• Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
• Media: 3" core, up to 8.6" outer diameter
• Ribbon: Up to 1,968 ft maximum length
• Connectivity: Ethernet, Wi-Fi, USB
• Display: 3.5" Full-Color LCD Touchscreen
• Dimensions: 10.66" x 17.99" x 12.63"
• Weight: 33 lbs
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F

Applications

• High-volume shipping and logistics label production
• Manufacturing part identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling requirements
• Healthcare and pharmaceutical labeling
• Retail and merchandise tagging

Karl Wilson

The SATO CL6NX Plus WWCLPA101-WAR stands out as a versatile workhorse for organizations transitioning between direct thermal and thermal transfer printing. The 14 ips speed paired with 203 dpi resolution delivers the performance-quality balance most enterprises require without sacrificing throughput. Dual-mode capability eliminates the need for separate hardware investments when media requirements shift—a significant advantage in mixed-use environments.

The 3.5" touchscreen interface reduces training overhead compared to legacy button-based printers, while tool-free maintenance (printhead and platen replacement) directly lowers operational costs. Multi-protocol connectivity (Ethernet, Wi-Fi, USB) ensures seamless integration into existing IT infrastructures, whether deployed in centralized or distributed warehouse settings. Memory capacity (2 GB Flash/256 MB SDRAM) is sufficient for complex label templates without requiring external font servers, though power users may need to manage storage carefully in high-template-count scenarios. The compact footprint and aluminum construction make it suitable for both climate-controlled offices and rougher industrial floors.
