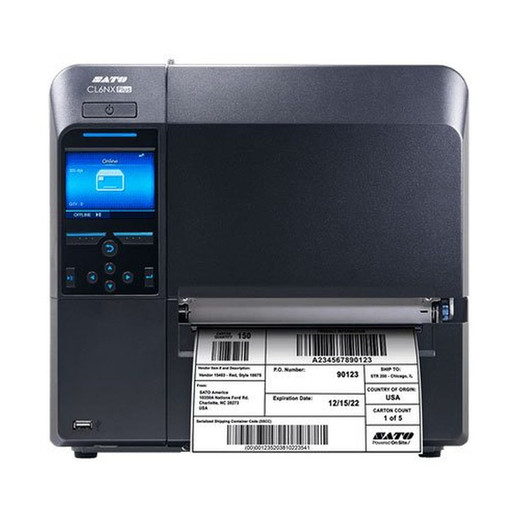

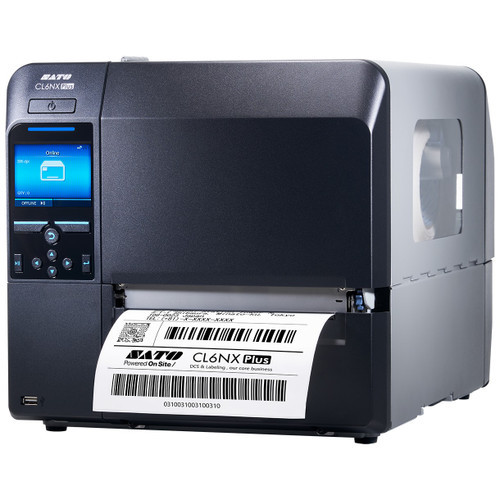

SATO CL6NX Plus 203dpi Industrial Thermal Printer

SATO CL6NX Plus 203dpi Industrial Thermal Transfer Printer – WWCLPA101-WAN

The SATO WWCLPA101-WAN is a professional-grade industrial thermal printer engineered for high-volume enterprise label production. Combining 203 dpi resolution with 14 ips print speed, this dual-mode printer delivers crisp barcode and text output on demand. Built with a die-cast aluminum frame and corrosion-resistant metal housing, the CL6NX Plus is designed to withstand demanding warehouse, manufacturing, and logistics environments while minimizing maintenance overhead.

Key Features

• 203 dpi resolution at 14 ips for sharp barcodes, QR codes, and text
• Dual-mode printing: Direct Thermal and Thermal Transfer for media flexibility
• 3.5" full-color LCD touchscreen with intuitive operator interface
• Tool-free printhead and platen roller replacement to reduce downtime
• Maximum print width of 4.09" with media width range 4.09" to 6.59"
• Support for media rolls up to 8.6" outer diameter and ribbons to 1,968 ft
• Multi-protocol connectivity: Ethernet, Wi-Fi, and USB for flexible integration
• 2 GB Flash and 256 MB SDRAM with 100 MB user storage for forms and fonts
• Operating temperature range 5°C to 40°C for varied facility conditions

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi
• Print Speed: 14 ips
• Maximum Print Width: 4.09"
• Media Width Range: 4.09" to 6.59"
• Maximum Ribbon Length: 1,968 ft
• Maximum Media Diameter: 8.6"
• Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
• Display: 3.5" Full-Color LCD Touchscreen
• Connectivity: Ethernet, Wi-Fi, USB
• Power Input: AC 100-240V, 50/60Hz
• Dimensions: 10.66" x 17.99" x 12.63"
• Weight: 33 lbs

Applications

• High-volume shipping and logistics labeling
• Manufacturing identification and component tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling
• Healthcare and pharmaceutical labeling
• Retail point-of-sale and price labeling

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CL6NX Plus strikes an optimal balance between speed, print quality, and operational durability for mid-to-high-volume production environments. The 14 ips print speed combined with 203 dpi resolution makes it suitable for detailed barcode and variable data applications without sacrificing throughput. The dual-mode printing capability eliminates the need for separate equipment when switching between direct thermal (receipts, shipping labels) and thermal transfer (asset tags, durable labels) media types.

The tool-free printhead replacement design is particularly valuable in production settings where maintenance windows directly impact output. The 3.5" touchscreen interface reduces operator training time and supports rapid job changeovers. Dual connectivity options—Ethernet, Wi-Fi, and USB—provide flexibility for both networked enterprise deployment and standalone operation, making this printer adaptable to various facility architectures. The 2 GB onboard Flash storage accommodates large font libraries and custom form templates without external server dependency, enhancing reliability in isolated or high-availability scenarios.
