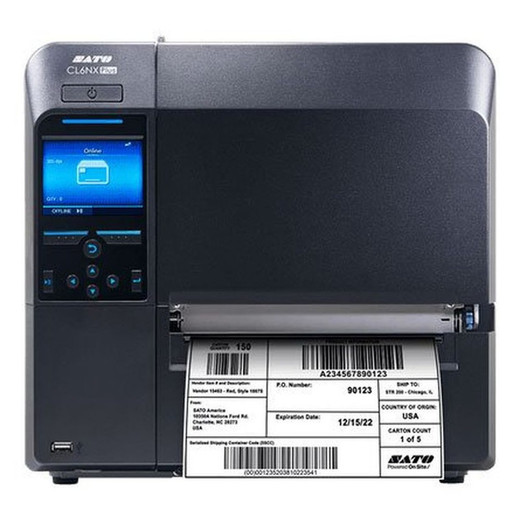

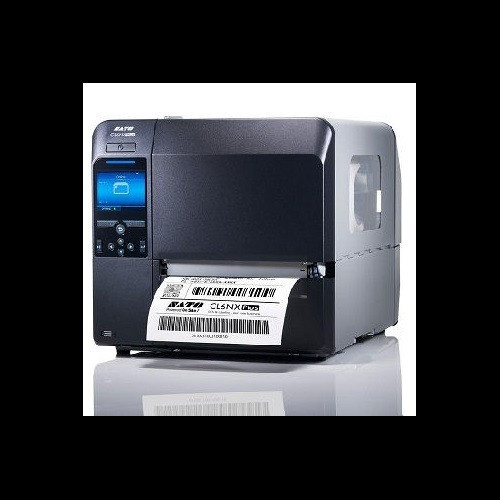

SATO CL6NX Plus 203dpi Industrial Thermal Printer - WWCLPA001-WAR

SATO CL6NX Plus 203dpi Industrial Thermal Printer - WWCLPA001-WAR

The SATO WWCLPA001-WAR is a professional-grade industrial label printer engineered for high-volume enterprise environments. Combining 203 dpi resolution with dual printing modes—direct thermal and thermal transfer—this compact yet robust system delivers consistent barcode and text output for demanding logistics, manufacturing, and warehouse operations. Built with a die-cast aluminum frame and corrosion-resistant metal housing, the CL6NX Plus is designed for 24/7 production reliability with minimal maintenance overhead.

Key Features

• Dual Print Methods: Direct thermal and thermal transfer modes for maximum media flexibility
• 203 dpi Resolution at 14 ips: Fast, crisp barcode and label output for enterprise workflows
• 4.09" Maximum Print Width: Optimized for standard label formats up to 6.59" media widths
• 2 GB Flash + 256 MB SDRAM: Ample onboard storage for fonts, forms, and complex label designs
• 3.5" Full-Color LCD Touchscreen: Intuitive operator interface with real-time status monitoring
• Tool-Free Printhead Replacement: Quick-change design minimizes downtime and maintenance complexity
• Multi-Connectivity: Ethernet, Wi-Fi, and USB for seamless network and direct integration
• Large Media Capacity: Supports ribbon rolls up to 1,968 ft and media rolls to 8.6" diameter

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi
• Print Speed: 14 inches per second
• Maximum Print Width: 4.09"
• Media Width Range: 4.09" to 6.59"
• Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
• Display: 3.5" Full-Color LCD Touchscreen
• Connectivity: Ethernet, Wi-Fi, USB
• Dimensions: 10.66" W × 17.99" D × 12.63" H
• Weight: 33 lbs
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F
• Housing: Die-cast aluminum with corrosion-resistant metal frame

Typical Applications

• High-volume shipping and logistics label production
• Manufacturing identification and asset tracking
• Warehouse inventory management and order routing
• Compliance and regulatory labeling
• Healthcare and pharmaceutical label printing

Karl Wilson

Perspective based on aggregated and affiliated engineering team experience.

The SATO CL6NX Plus strikes an optimal balance between performance and operational efficiency for mid-to-high-volume environments. The 14 ips print speed and 203 dpi resolution provide professional output quality without sacrificing throughput—critical for fast-paced logistics and manufacturing floors. The dual-mode printing capability eliminates the need for separate direct thermal and thermal transfer devices, reducing capital expenditure and facility footprint.

The 2 GB Flash memory is notably generous for industrial printers, allowing storage of extensive font libraries and complex label templates without requiring external servers. Tool-free printhead and platen replacement is a significant operational advantage in environments where downtime costs are substantial. Multi-connectivity options—Ethernet, Wi-Fi, and USB—provide flexible deployment options, whether integrated into legacy systems or modern network infrastructures.

The 3.5" touchscreen interface simplifies operator training and reduces configuration errors. However, the 4.09" maximum print width positions this device for standard label formats rather than wider specialty applications. The robust die-cast aluminum construction and wide operating temperature range (41°F to 104°F) make it suitable for warehouse, manufacturing, and logistics environments where temperature control may be inconsistent.
